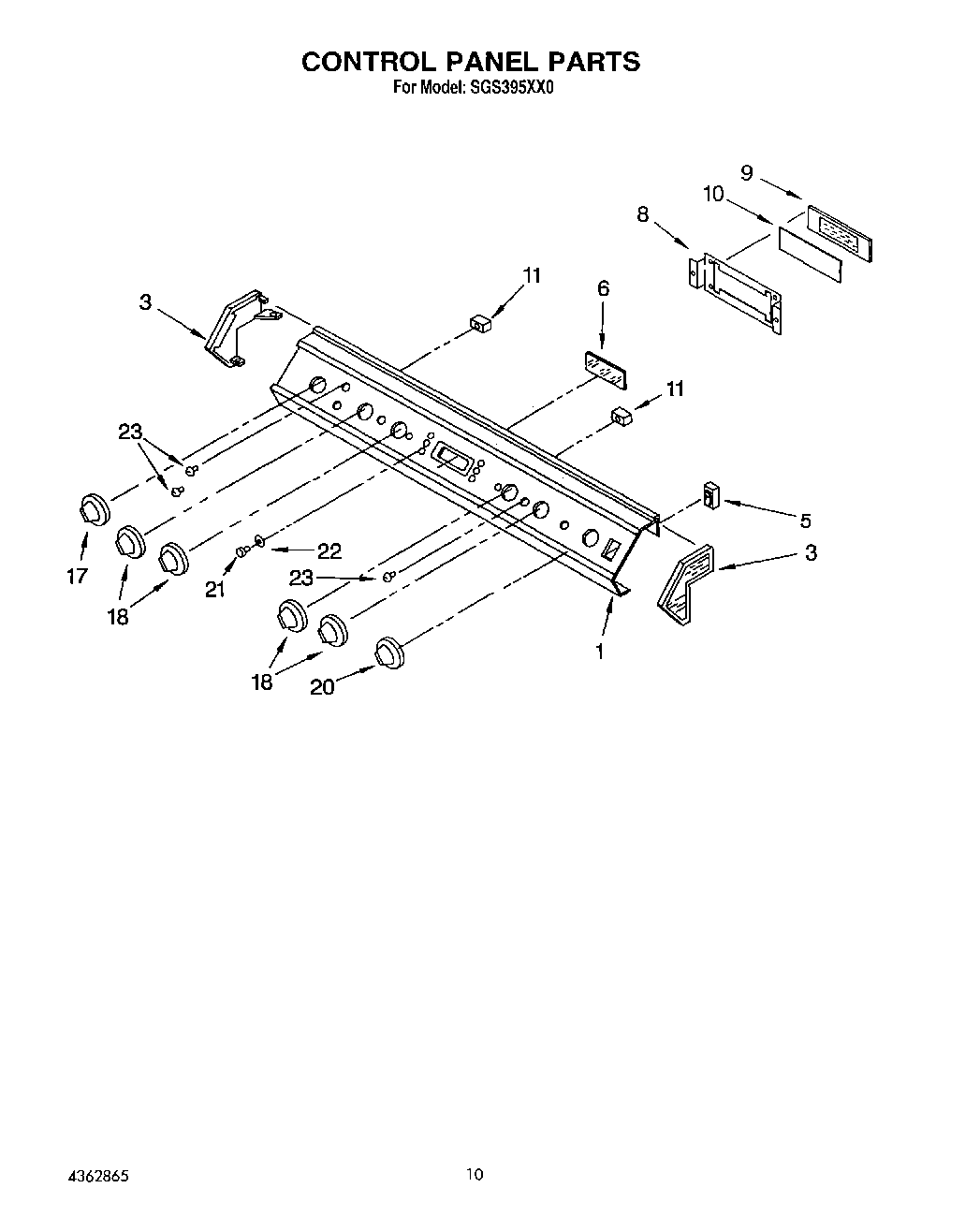

SGS395XX0 07 – CONTROL PANELadmin2025-04-26T11:22:13+00:00SGS395XX0 07 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Panel, Control |
| 3 | End Cap (Left Side) |
| 3 | End Cap (Right Side) |
| 3 | End Cap |
| 5 | Switch, Rocker |
| 6 | Glass, Clock |
| 8 | Bracket, Clock |
| 9 | Clock/Timer |
| 10 | Lens, Clock-Filter |
| 11 | Light, Indicator (3) |
| 17 | Knob, Thermostat |
| 18 | Knob, Surface |
| 20 | Knob, Selector |
| 21 | Button, Clock |
| 22 | Bushing, Clock Button |
| 23 | Lens, Indicator Light |
