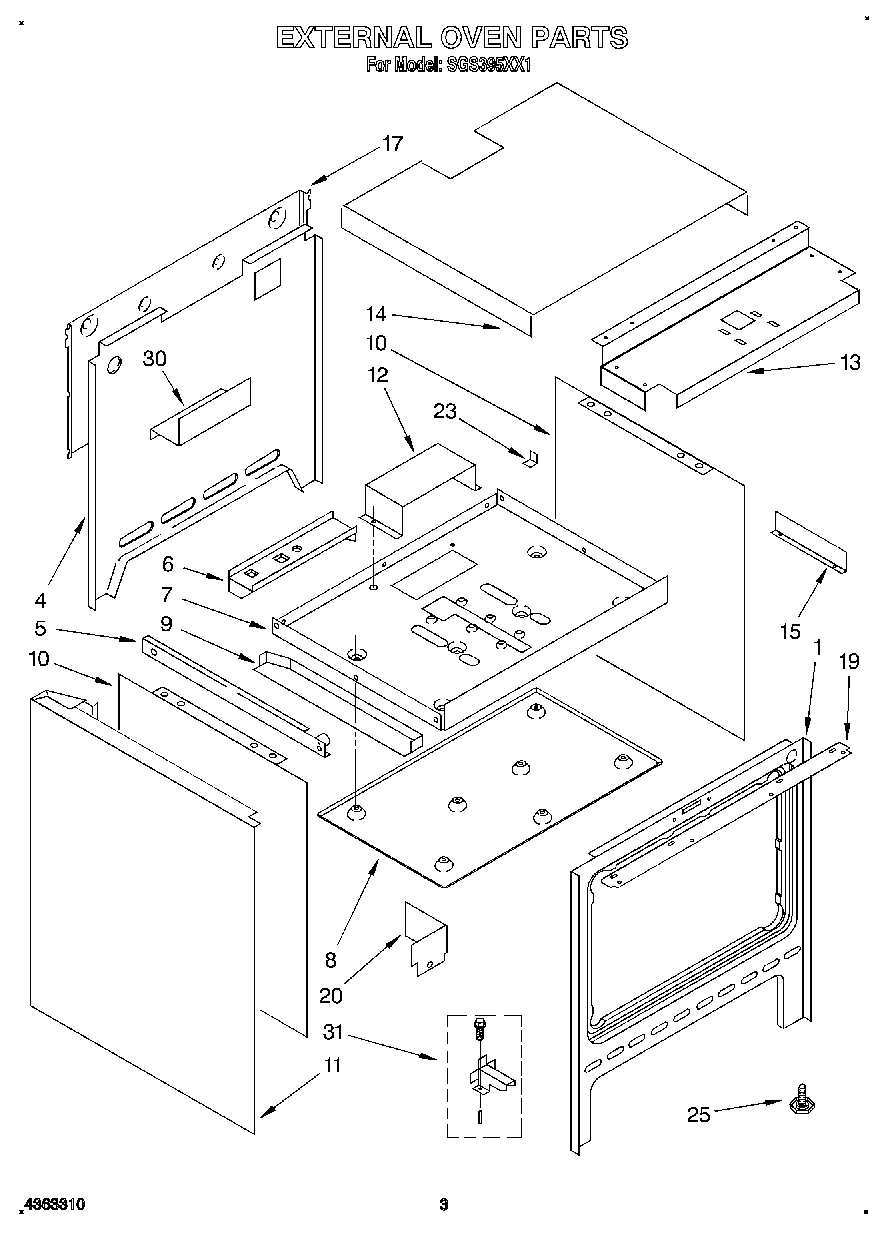

SGS395XX1 02 – EXTERNAL OVENadmin2025-04-26T11:21:07+00:00SGS395XX1 02 – EXTERNAL OVEN
Products
| Position | Product |
|---|
| 1 | Frame, Front Not Serviceable |
| 4 | Retainer, Rear Insulation |
| 5 | track, storage drawer (left side) |
| 5 | track, storage drawer (right side) |
| 6 | Nut, 6-32 (6) |
| 6 | Shelf, Gas Valve |
| 6 | WP486754 Whirlpool Compactor Screw |
| 7 | retainer, bottom insulation |
| 8 | Heat Shield, |
| 9 | Brace, Bottom (L.H.) |
| 9 | Brace, Bottom (R.H.) |
| 10 | Retainer, Insulation (2) |
| 11 | Panel, Side (2) |
| 12 | Retainer, Ignitor |
| 13 | Retainer, Top Front Insulation |
| 14 | Retainer, Top Back |
| 15 | Heat Shield, Clock |
| 17 | Shield, Heat Clock |
| 19 | Frame, Filler Front |
| 20 | Plate, Cover |
| 23 | Bracket, Gas Valve (2) |
| 23 | WP488130 Whirlpool Air Conditioner Nut |
| 23 | WP965173 Whirlpool Dishwasher Screw |
| 25 | leg, leveling (4) |
| 30 | cover, electrical |
| 31 | Anti-Tip Kit |
