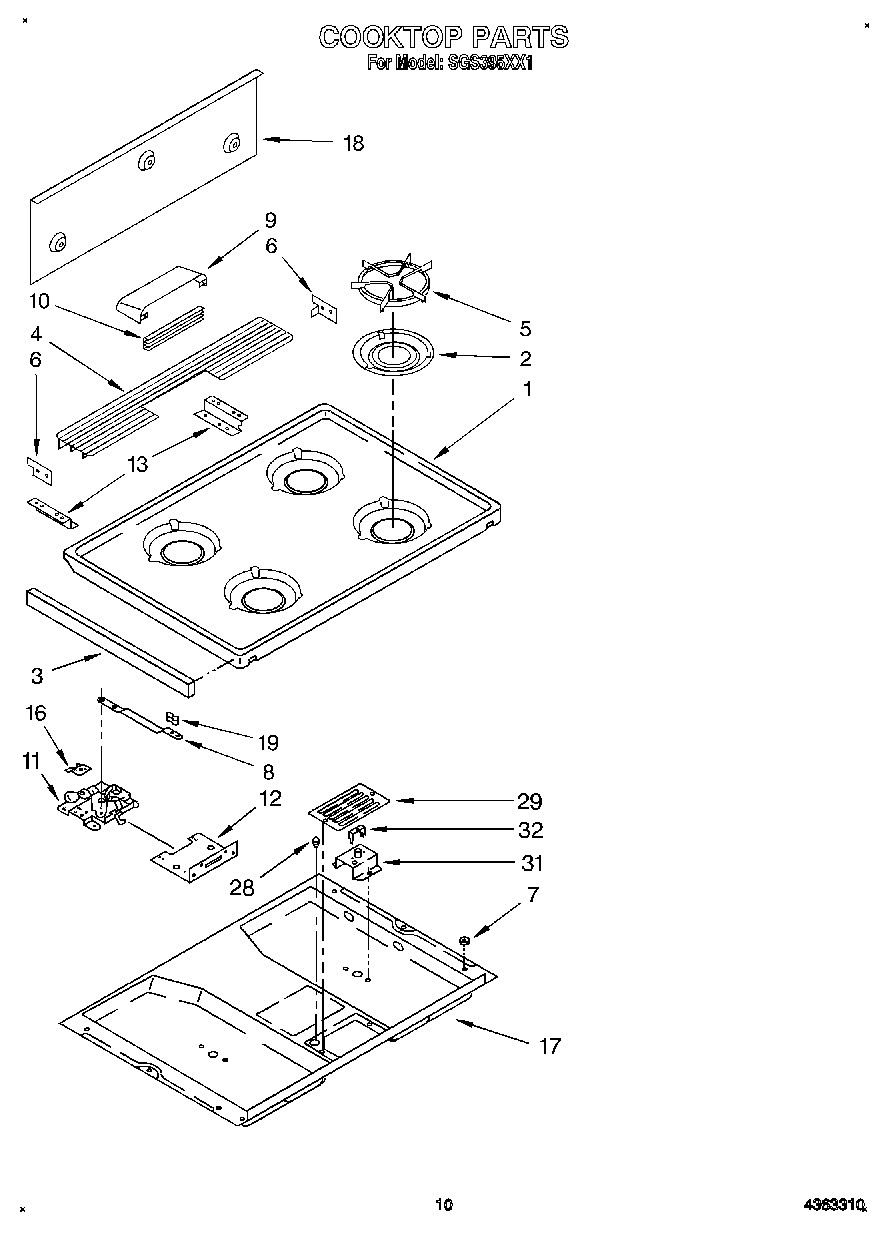

| 1 | Top, Main |
| 2 | Bowl, Chrome |
| 3 | Trim, Maintop (Right Hand) |
| 3 | Trim, Maintop (Left Hand) |
| 4 | Backrail, Low |
| 5 | Grate, Top (4) Burner (4) |
| 6 | End Cap (Right Hand) |
| 6 | End Cap (Left Hand) |
| 7 | Spacer, Nylon (4) |
| 8 | Handle, Latch |
| 9 | Cover, Flue |
| 10 | Trim, Flue |
| 11 | WP965173 Whirlpool Dishwasher Screw |
| 11 | Latch Assembly |
| 12 | Bracket, Latch Mounting |
| 13 | Support, Low Rail (Left Hand) |
| 13 | Support, Low Rail (Right Hand) |
| 16 | Bracket, Switch |
| 16 | screw, 4-40 (2) |
| 17 | Burner Box |
| 18 | Heat Shield |
| 19 | Knob, Latch Handle |
| 28 | LP Gas No. 58 |
| 29 | Panel, Rear |
| 31 | Bracket, Top (2) |
| 32 | Bracket, Electrode (2) |
