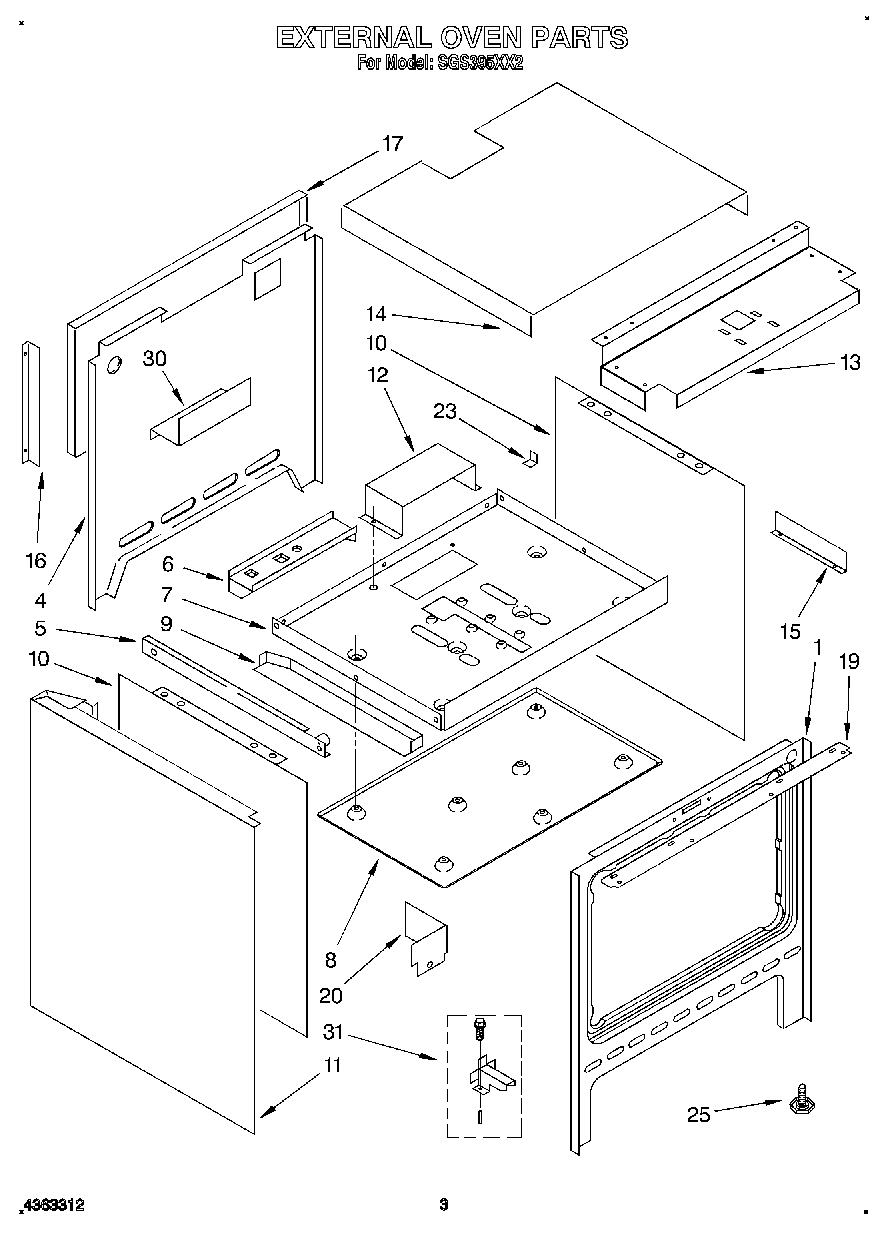

SGS395XX2 02 – EXTERNAL OVEN

Products

Position	Product
1	Frame, Front Not Serviceable
4	Retainer, Rear Insulation
5	track, storage drawer (left side)
5	track, storage drawer (right side)
6	Nut, 6-32 (6)
6	Shelf, Gas Valve
6	WP486754 Whirlpool Compactor Screw
7	retainer, bottom insulation
8	Heat Shield,
9	Brace, Bottom (L.H.)
9	Brace, Bottom (R.H.)
10	Retainer, Insulation (2)
11	Panel, Side (2)
12	Retainer, Ignitor
13	Retainer, Top Front Insulation
14	Retainer, Top Back
15	Heat Shield, Clock
17	Shield, Heat Clock
19	Frame, Filler Front
20	Plate, Cover
23	Bracket, Gas Valve (2)
23	WP488130 Whirlpool Air Conditioner Nut
23	WP965173 Whirlpool Dishwasher Screw
25	leg, leveling (4)
30	cover, electrical
31	Anti-Tip Kit
