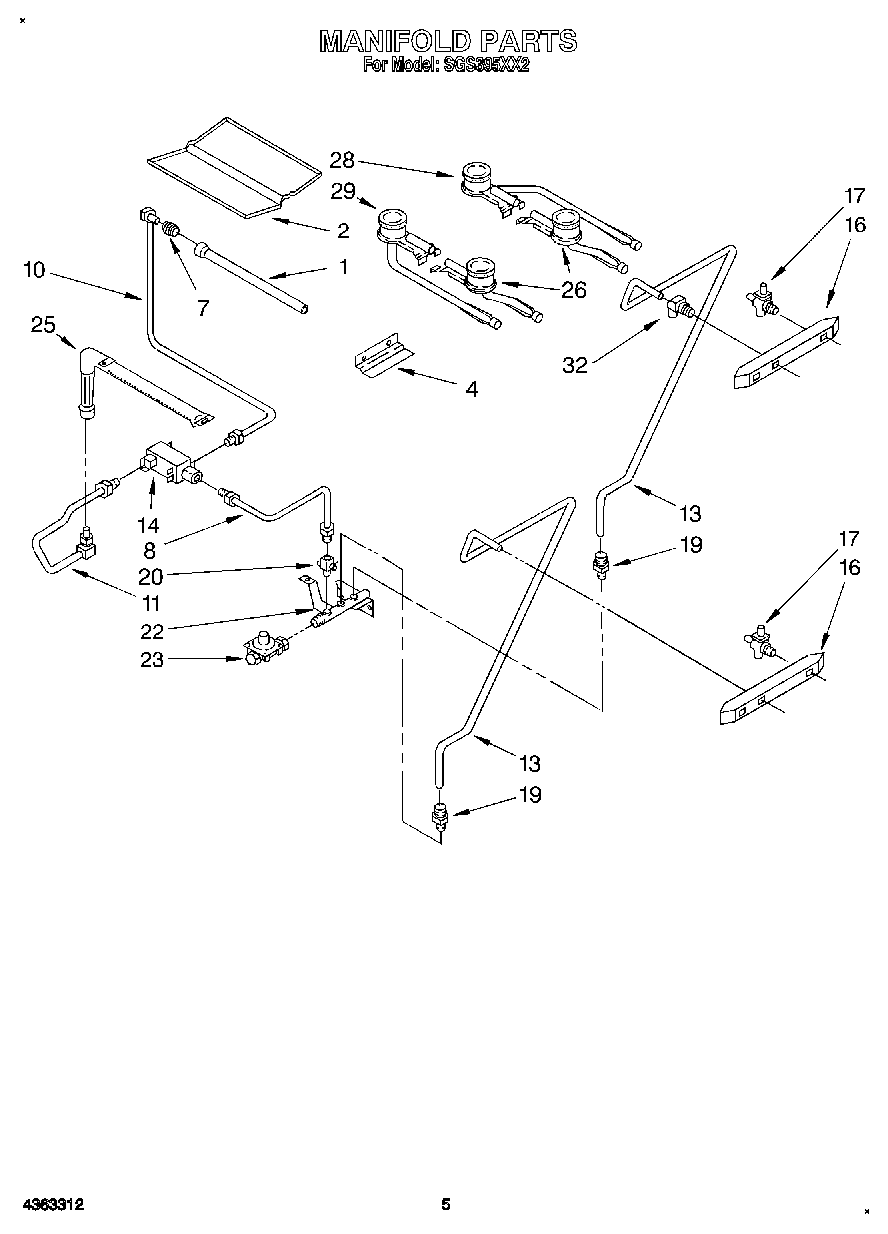

SGS395XX2 03 – MANIFOLD

Products

Position	Product
1	Burner, Broiler
1	Nut, 6-32 (6)
2	Baffle, Burner
4	Support, Burner Mounting
4	Screw (3)
7	Burner, Front (2)
7	LP Gas No. 58
7	Natural Gas No. 51.
8	Tubing, (Inlet To Gas Valve)
10	Orifice & Tubing Assembly (Gas Valve To Ultra Ray Burner)
11	Nut, Lock
11	hood & tubing assembly (gas valve to lower oven burner)
13	Tubing (Inlet To Manifold) (Left Hand)
13	Valve, Top Burner (4)
14	Valve, Dual Gas Valve
16	Manifold
17	Valve, Top Burner (4)
19	Fitting
20	Valve, Shut Off
22	Inlet, Gas
23	Regulator, Pressure
25	Oven Burner, Lower
26	Top Burner, Front (2)
28	Top Burner, R.R.
29	Top Burner, L.R.
32	Elbow, Manifold
