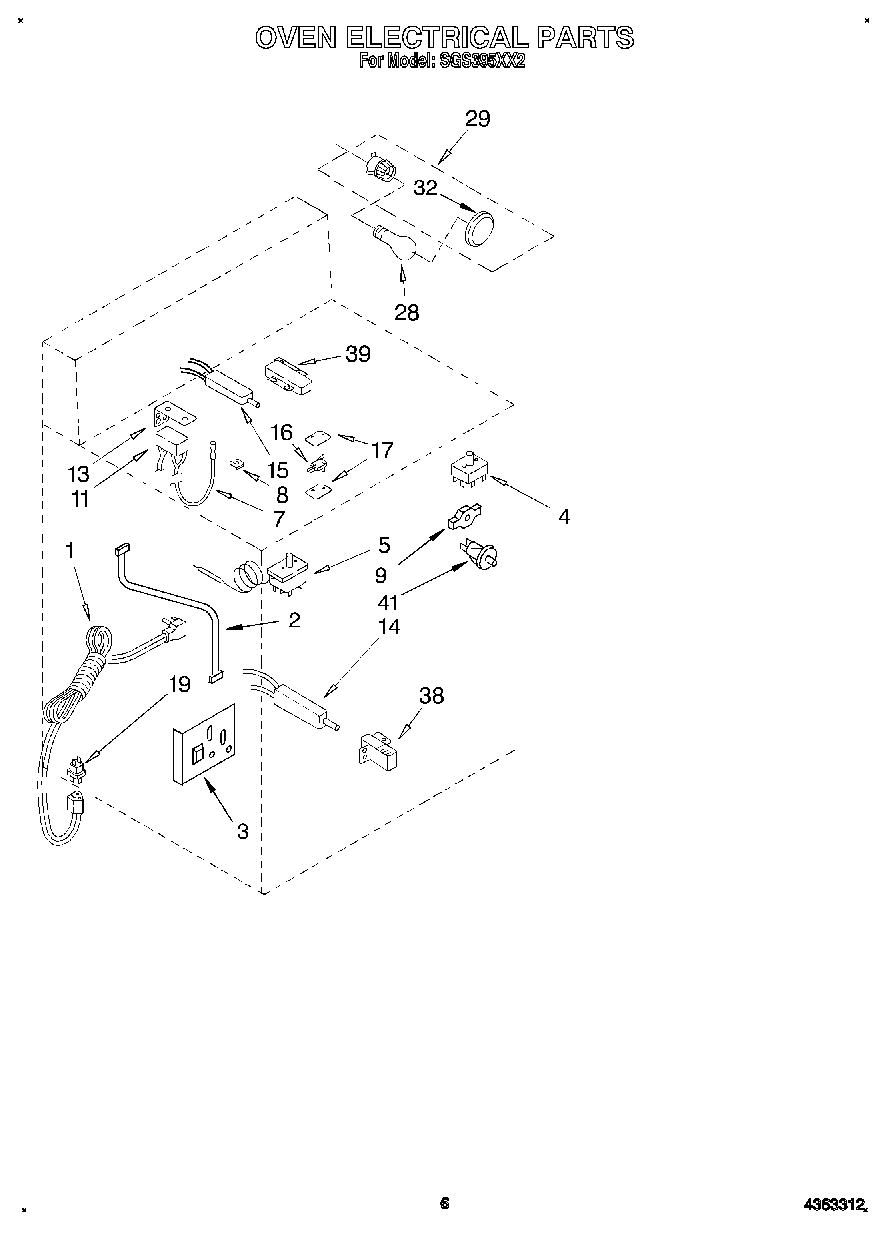

SGS395XX2 04 – OVEN ELECTRICAL, LITERATUREadmin2025-04-26T11:21:59+00:00SGS395XX2 04 – OVEN ELECTRICAL, LITERATURE
Products
| Position | Product |
|---|
| Instructions, Installation |
| Guide, Use & Care |
| 1 | Cord, Power |
| 2 | Cable, Clock |
| 3 | Support, Board |
| 3 | Circuit Board |
| 4 | Switch, Selector |
| 5 | Thermostat |
| 7 | 4157608 Whirlpool Surface Igniter |
| 8 | Bracket, Electrode (2) |
| 9 | Nut |
| 9 | Switch, Top Burner Actuator (R.F. & R.R.) |
| 9 | Switch, Top Burner Actuator (L.F. & L.R.) |
| 9 | Screw, 4-40 X 5/8 (2) |
| 11 | Spark Module |
| 13 | Bracket, Spark Module |
| 14 | 786324 Whirlpool Flat Igniter |
| 15 | WP486754 Whirlpool Compactor Screw |
| 15 | 814269 Whirlpool Oven Flat Igniter |
| 15 | Nut, 6-32 (6) |
| 16 | Switch, Oven Door Latch |
| 16 | screw, 4-40 x 5/8 (2) |
| 17 | Insulator, Switch |
| 19 | Plug, Male |
| 28 | RANGE ONLY 40W 120V APPL BULB |
| 29 | WP74011278 Whirlpool Light |
| 38 | Bracket, Bake Ignitor |
| 39 | Bracket, Broiler Ignitor |
| 41 | Switch, Oven Door |
