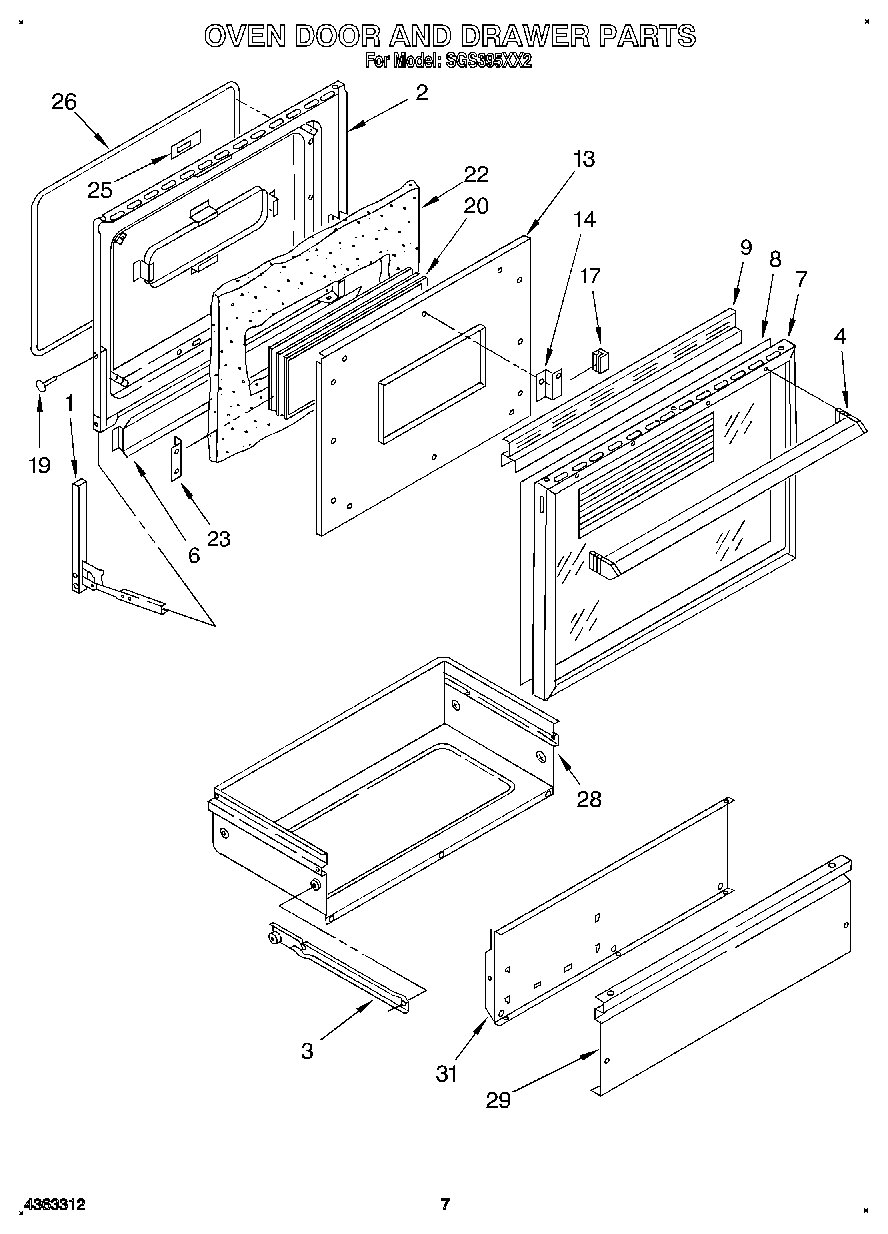

SGS395XX2 05 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Hinge, Oven Door (L.H.)
1	Hinge, Oven Door (R.H.)
2	WP965173 Whirlpool Dishwasher Screw
2	WP488130 Whirlpool Air Conditioner Nut
2	Pad, Oven Door
2	Screw, 8-32 X 5/8 (4)
3	Runner (R.H.)
3	runner (l.h.)
4	Handle
6	Baffle, Heat
7	Frame
8	Panel, Black Glass
9	Trim, Top Door
13	Retainer, Insulation
14	bracket, glass support (4)
17	Bumper, Window (2)
19	Pin-Hinge (2)
20	Window Assembly
22	Insulation, Door
23	Retainer, Window (4)
25	Plate, Latch
26	gasket assembly
28	Drawer, Storage
29	Panel, Drawer (Black)
31	Liner, Drawer Panel
