SGS395XX2 06 – CONTROL PANEL

SGS395XX2 06 – CONTROL PANEL

Written by

in

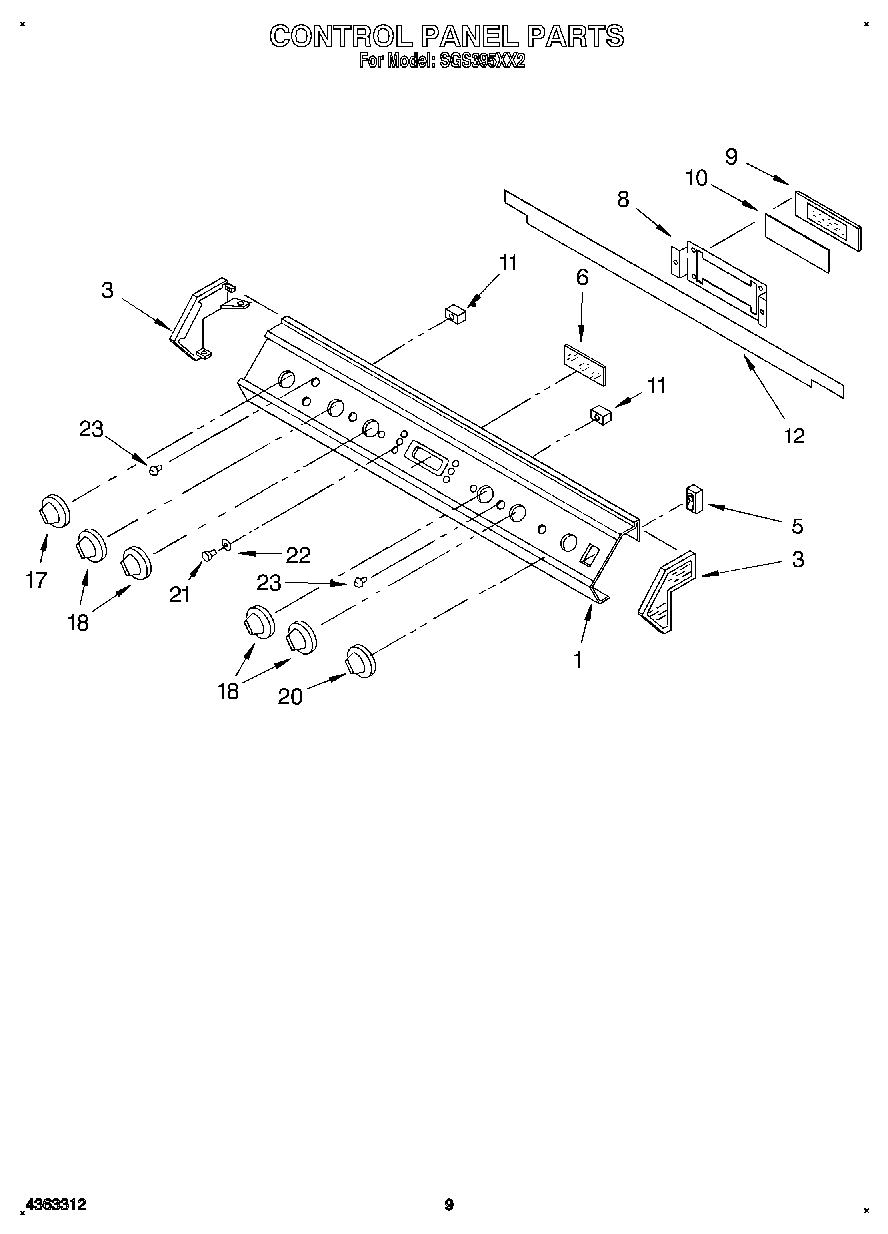

SGS395XX2 06 – CONTROL PANEL

Products

Position	Product
1	Panel, Control
3	End Cap (Left Side)
3	End Cap (Right Side)
5	Switch, Rocker
6	Glass, Clock
8	Bracket, Clock
9	Clock/Timer
10	Lens, Clock-Filter
11	Light, Indicator (3)
12	Panel, Filler
17	Knob, Thermostat
18	Knob, Top Burner (4)
20	Knob, Selector
21	Button, Clock
22	Bushing, Clock Button
23	Lens, Indicator Light (2)
