SGWS1349AS0 09 – CONTROL/PANEL – Aparts

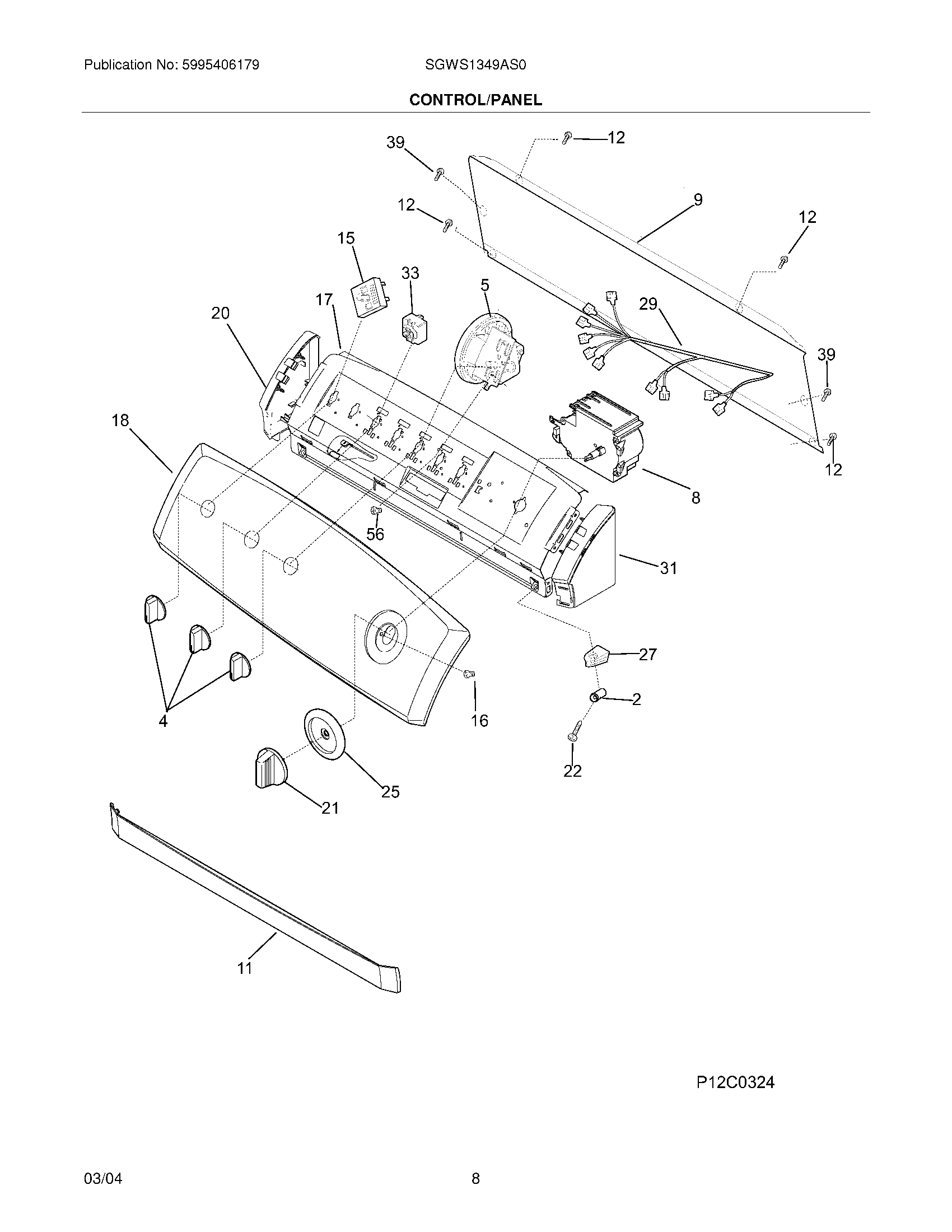

SGWS1349AS0 09 – CONTROL/PANEL

Products

Position	Product
NI	WCI 134174700
2	WCI 134096100
4	WCI 131786603
5	134680100 Frigidaire Pressure Switch
8	134049500 Frigidaire Timer P1
9	Panel,backsheet ,console
11	WCI 134019900
15	WCI 131081200
16	131168200 Frigidaire Dryer Screw
17	WCI 131993000
18	WCI 134174600
20	WCI 134019610
21	WCI 131978301
22	WCI 131266330
25	WCI 131978203
27	CLIP-CONSOLE MTG
29	WCI 134122100
31	WCI 134019600
33	Switch,2 position
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
