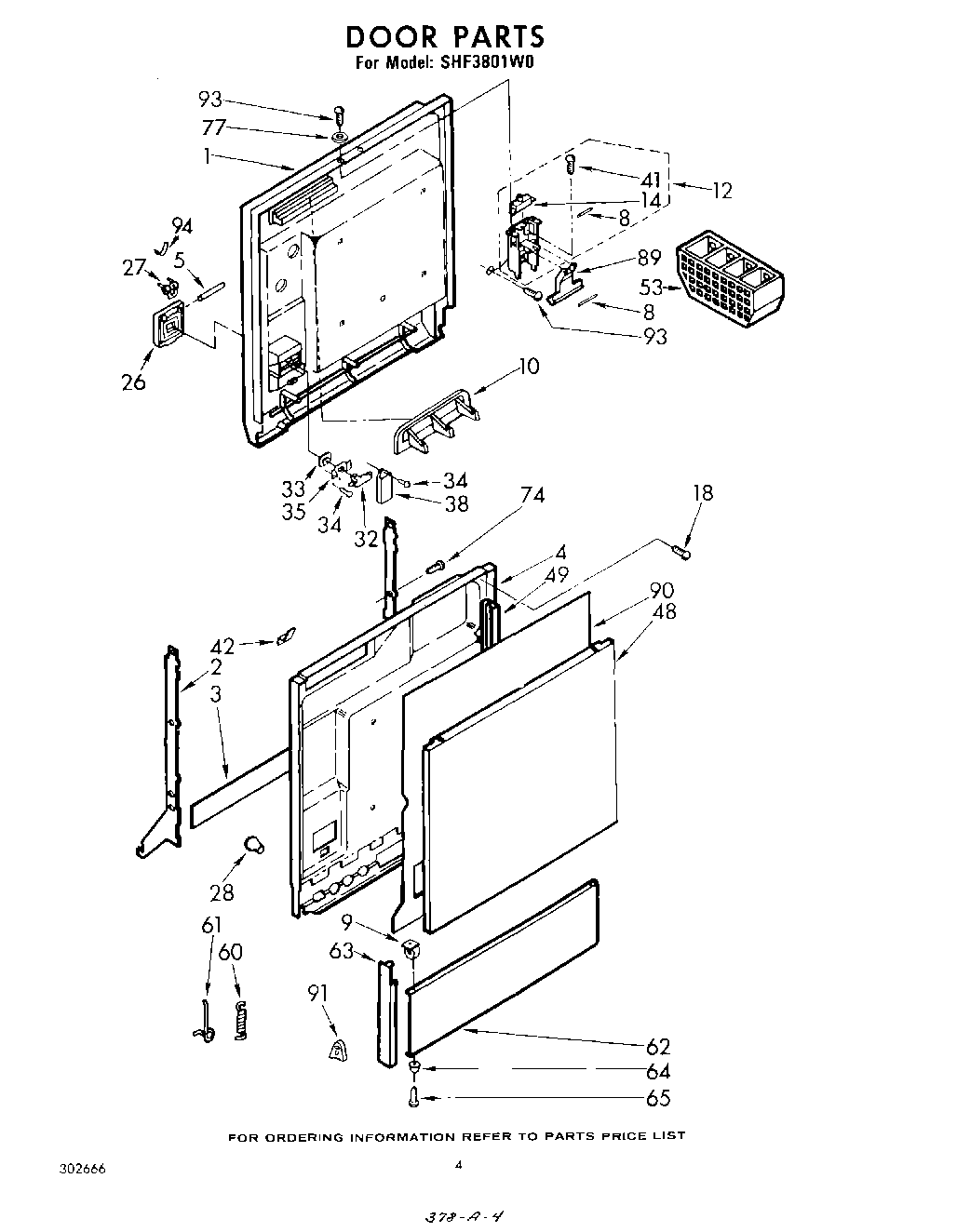

SHF3801W0 03 – DOOR

Products

Position	Product
1	Door, Inner (Includes Illus. 4)
2	Support, Door (L.H.)
2	Support, Door (R.H.)
3	Gasket, Door
4	Liner, Door
5	4387043 Whirlpool Door Latch Kit
8	Pin, Pivot
9	Grommet
10	Screen, Vent
12	Latch Assembly
14	Switch, Interlock (Alternate)
18	WP488729 Whirlpool Refrigerator Door Screw
27	WP8066018 Whirlpool Spring Assembly
28	SCREW 8A
32	Lever, Catch
33	Seal, Lever
34	Screw, 8 x 1/2 (3)
35	Retainer
38	Actuator
41	Screw, 6-32 x 1
42	Ground Clip (2)
48	Panel, Front
49	Trim, Door (R.H.)
49	Trim, Door (L.H.)
53	WP8539066 Whirlpool Dishwasher Basket Ware
60	675611 Whirlpool Spring Assembly
61	WP716401 Whirlpool Dishwasher Retainer
62	Panel, Access
63	Cap, End (R.H.)
63	Cap, End (L.H.)
64	Foot (2)
65	Screw, 8-18 x 5/8 (10)
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
89	Lever, Release
90	Spacer, Panel
91	Retainer (2)
93	WP90767 Whirlpool Screw
94	Clip, Wire
