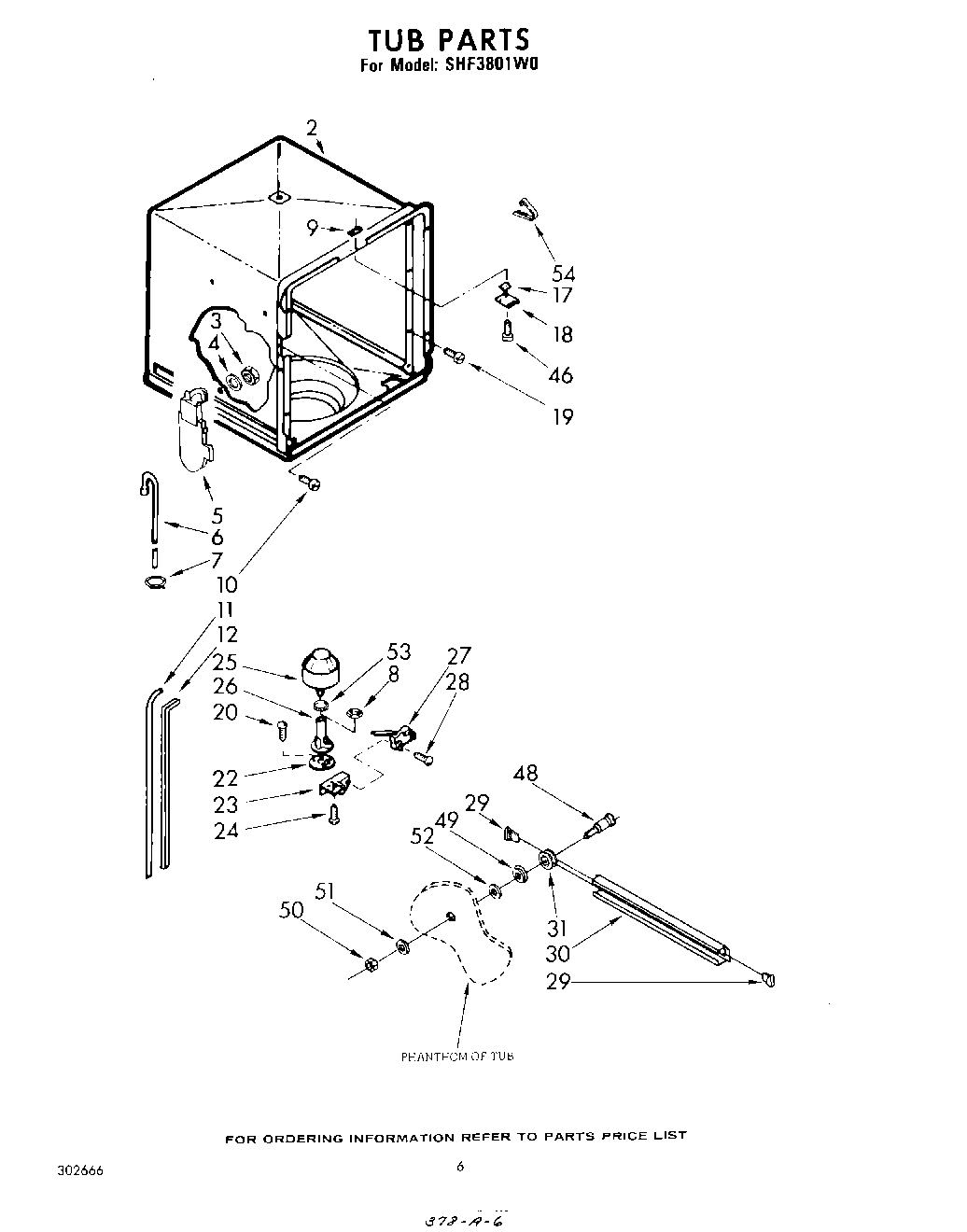

SHF3801W0 04 – TUB , LIT/OPTIONALadmin2025-04-26T11:22:34+00:00SHF3801W0 04 – TUB , LIT/OPTIONAL
Products
| Position | Product |
|---|
| Paint, Touch-Up |
| 799344 Whirlpool Refrigerator Paint |
| Paint, Touch-Up |
| Golden Harvest (Uncut) |
| 2 | Snap On Panel (White) |
| 3 | Nut, 7/18-16 |
| 4 | Gasket |
| 5 | Inlet, Water |
| 6 | Hose, Inlet |
| 7 | WP596669 Whirlpool Hose Clamp |
| 8 | Nut |
| 9 | Nut, Twin Spring |
| 10 | Screw, 8-18 x 5/8 (10) |
| 11 | Gasket (Alternate) |
| 11 | Gasket (Alternate) |
| 11 | Gasket (Alternate) |
| 12 | Retainer (L.H.) |
| 12 | Retainer (R.H.) |
| 17 | Shim |
| 18 | Strike |
| 19 | WP90767 Whirlpool Screw |
| 20 | WP488729 Whirlpool Refrigerator Door Screw |
| 22 | Gasket, Overflow |
| 23 | Bracket, Overflow Switch |
| 24 | Screw, 8 x 1/2 (3) |
| 25 | Float |
| 26 | Standpipe, Overflow |
| 27 | Retainer-Main Top (2 Required) |
| 27 | Switch, Pressure (Alternate) |
| 28 | Screw, 4-40 x 3/4 |
| 29 | Endcap, Front or Rear (2) |
| 30 | Track (2) |
| 31 | Roller, Rack Track |
| 46 | WP308685 Whirlpool Microwave Screw |
| 48 | Screw, Shoulder (8) |
| 49 | Washer, Cup |
| 50 | Nut, Lock |
| 51 | Washer (8) |
| 52 | Washer (8) |
| 53 | Gasket, Standpipe (2) |
| 54 | 350942 Whirlpool Spray Paint |
| 54 | 350930 Whirlpool White Spray Paint |
| 54 | Tag, Energy Fact |
| 54 | List, Parts |
| 54 | Guide, Use & Care |
| 54 | Harness, Wiring |
| 54 | Golden Harvest |
| 54 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 54 | Instructions, Installation |
| 54 | Leveler (Thinner) (2oz.) |
| 54 | WPL 799351 |
| 54 | Kit, Epoxy Patch (White) |
| 54 | 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 54 | Clip, Gasket (2) |
