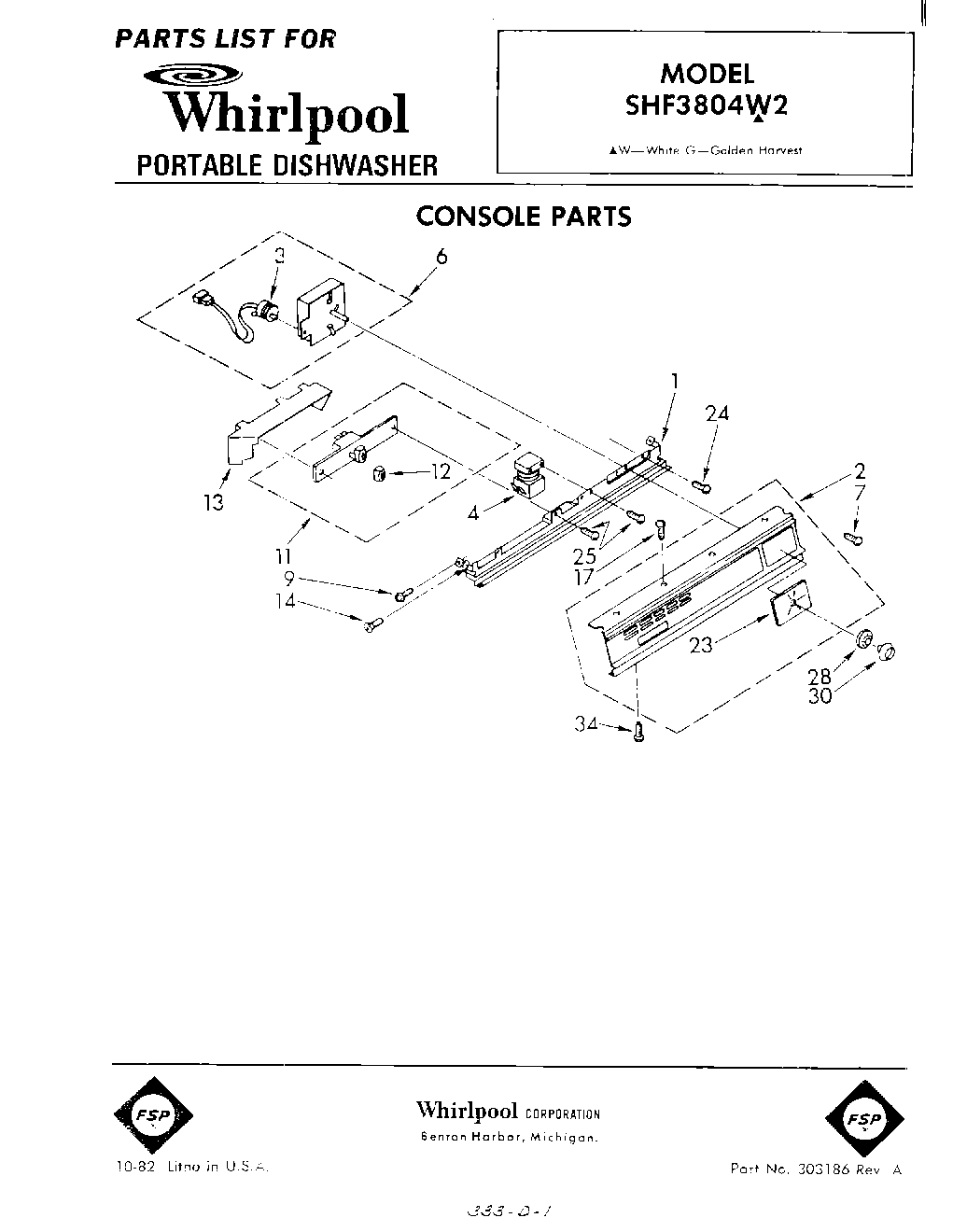

| 1 | Bracket, Control |
| 2 | Console Assembly |
| 3 | Motor, Timer |
| 4 | Relay, Start (Alternate) |
| 4 | Relay, Start (Alternate) |
| 4 | Relay, Start (Alternate) |
| 6 | Timer, Disconnect |
| 9 | WP488627 Whirlpool Refrigerator Screw |
| 11 | Switch, Pushbutton |
| 12 | Button |
| 13 | Barrier |
| 14 | Screw, 8-18 x 5/8 |
| 17 | W10759522 Whirlpool Screw |
| 23 | Insert |
| 24 | Screw (2) |
| 25 | WP489128 Whirlpool Refrigerator Screw |
| 28 | Dial, Indicator |
| 30 | Knob |
| 34 | WP487353 Whirlpool Refrigerator Screw |
