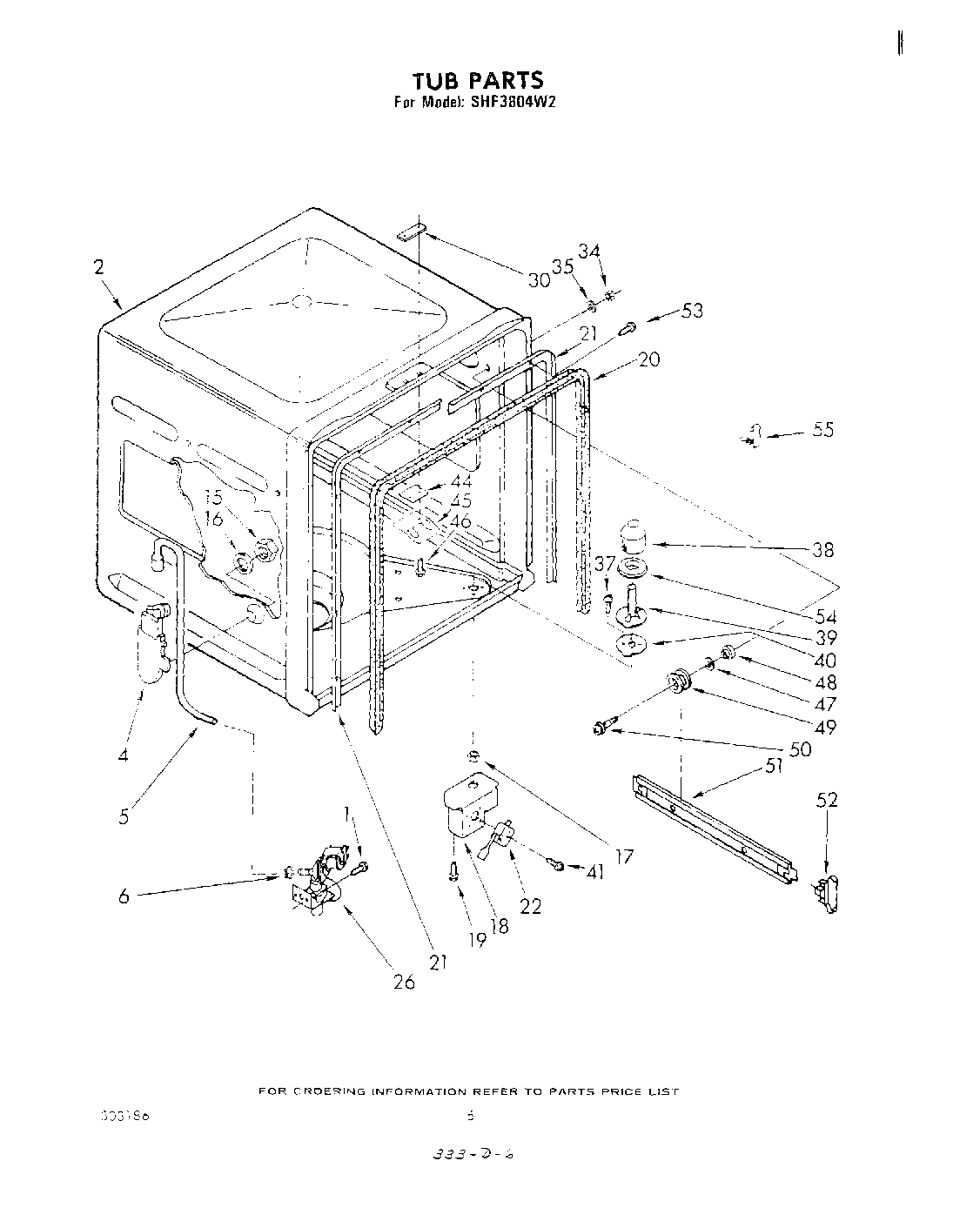

SHF3804W2 04 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	799344 Whirlpool Refrigerator Paint
	Golden Harvest (Uncut)
1	WP90767 Whirlpool Screw
2	Tub Assembly
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (R.H.)
21	Retainer (L.H.)
22	Retainer-Main Top (2 Required)
22	Switch, Pressure (Alternate)
26	Valve, Water Inlet (Alternate)
30	Nut, Twin Spring
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	Tag, Energy Fact
55	Instructions, Installation
55	List, Repair Parts
55	Clip, Gasket (2)
55	Guide, Use & Care
55	Golden Harvest
55	Kit, Epoxy Patch (White)
55	WPL 799351
55	Leveler (Thinner) (2oz.)
55	350942 Whirlpool Spray Paint
55	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
55	72017 Whirlpool Appliance Touch-Up Paint White
55	350930 Whirlpool White Spray Paint
