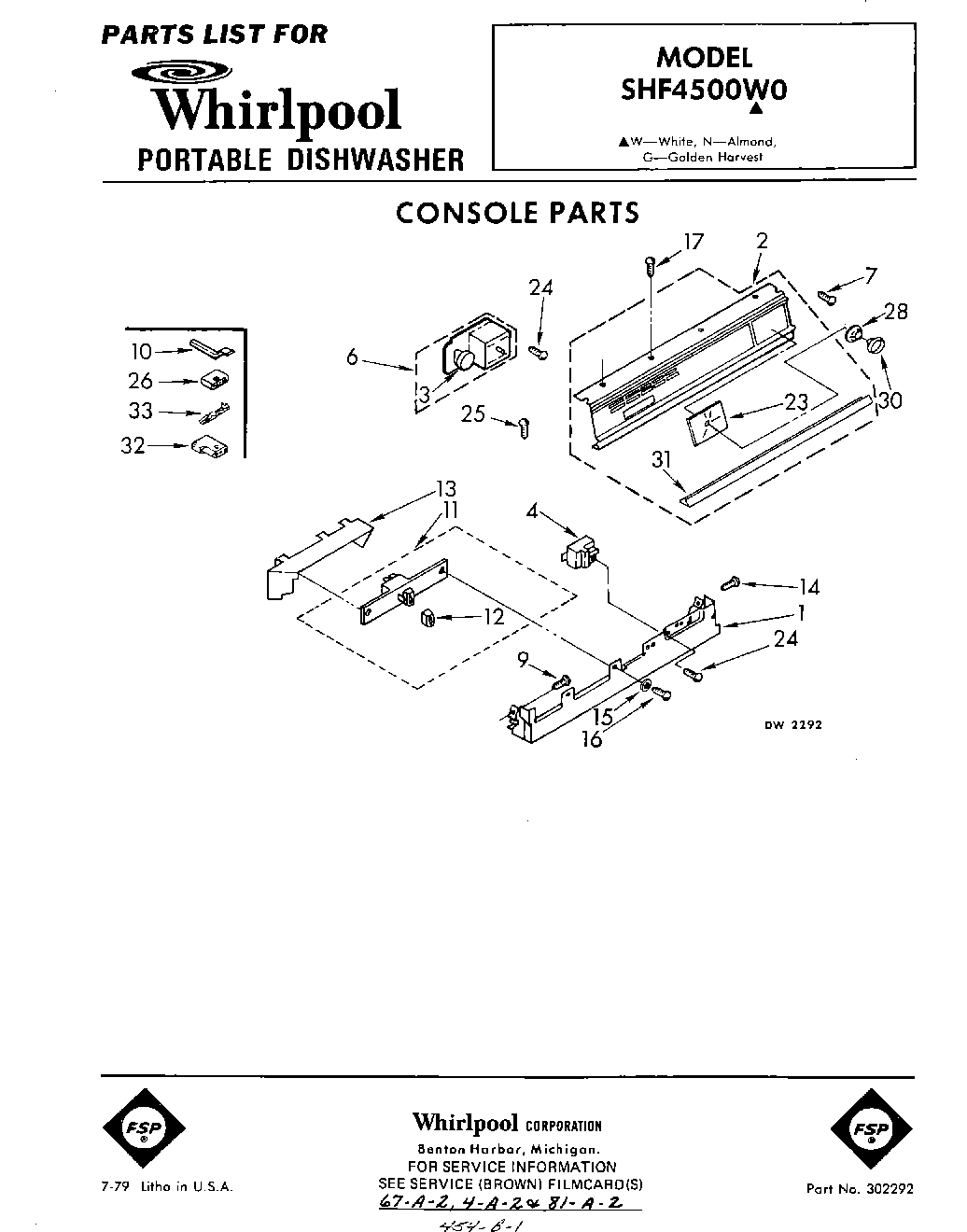

SHF4500W0 01 – CONSOLE

Written by

Products

Position	Product
1	Bracket, Console
2	Console Assembly
3	Motor, Timer
4	Relay, Start (Alternate)
4	Relay, Start (Alternate)
4	Relay, Start (Alternate)
6	Timer, 60 Hz.
7	WP487353 Whirlpool Refrigerator Screw
9	WP488627 Whirlpool Refrigerator Screw
10	Retainer, Harness
11	Switch, Pushbutton
12	Button (2)
13	Barrier, Pushbutton Switch
14	WP488787 Whirlpool Refrigerator Screw
15	Washer (3)
16	Screw, 8-32 (3)
17	Screw
23	Insert
24	Screw (2)
25	WP489128 Whirlpool Refrigerator Screw
26	Receptacle (5-Circuit)
28	Dial, Indicator
30	Knob
31	Support-Flue Deflector
32	Connector (Door Switch)
33	WP94614 Whirlpool Terminal
