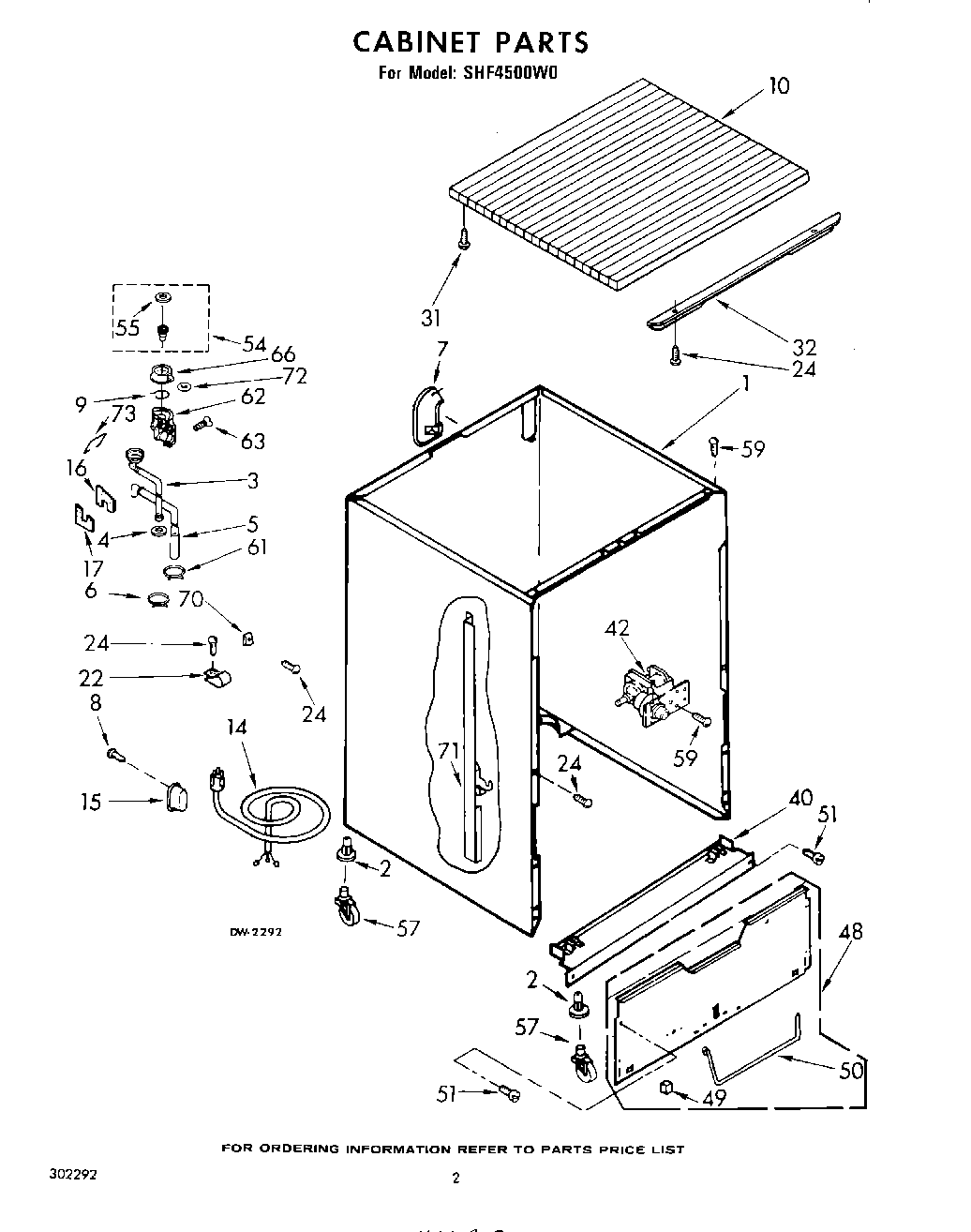

SHF4500W0 02 – CABINET

Products

Position	Product
1	Shell Assembly (Almond)
1	Shell Assembly (White)
1	Shell Assembly (Golden Harvest)
2	Socket, Caster (Alternate)
2	Socket, Caster (Alternate)
3	Coupler Assembly
4	WP16123 Whirlpool Washer
5	Hose, Drain
6	WPW10144763 Whirlpool Tie Wire
7	Housing, Hose
8	WP489128 Whirlpool Refrigerator Screw
9	Spring, Coupler
10	Panel, Top
14	Cord, Power
15	Housing, Cord
16	Flow Divider, Upper
17	Flow Divider, Lower
22	Clamp, Strain Relief
24	WP488787 Whirlpool Refrigerator Screw
31	WPL 343826
32	Trim, Front
40	Toeplate Assembly (Includes Illus. 43)
42	Valve, Water Inlet (Alternate)
48	Plate, Cover
49	Bumper, Rubber
50	Bar, Torsion (R.H.)
50	Bar, Torsion (L.H.)
51	WP90767 Whirlpool Screw
54	WPW10254672 Whirlpool Faucet Adapter
55	Washer
57	WP3370639 Whirlpool Caster
61	Clamp, Hose
62	Cover, R.H.
62	Cover, L.H.
63	Screw, 8-18 x 3/4 (Door Handle)
66	Latch, Cap
70	Nut, J-Type
71	Leg Assembly, L.H.
71	Leg Assembly, R.H.
72	“O“ Ring
73	Coupler, Pull Ring
