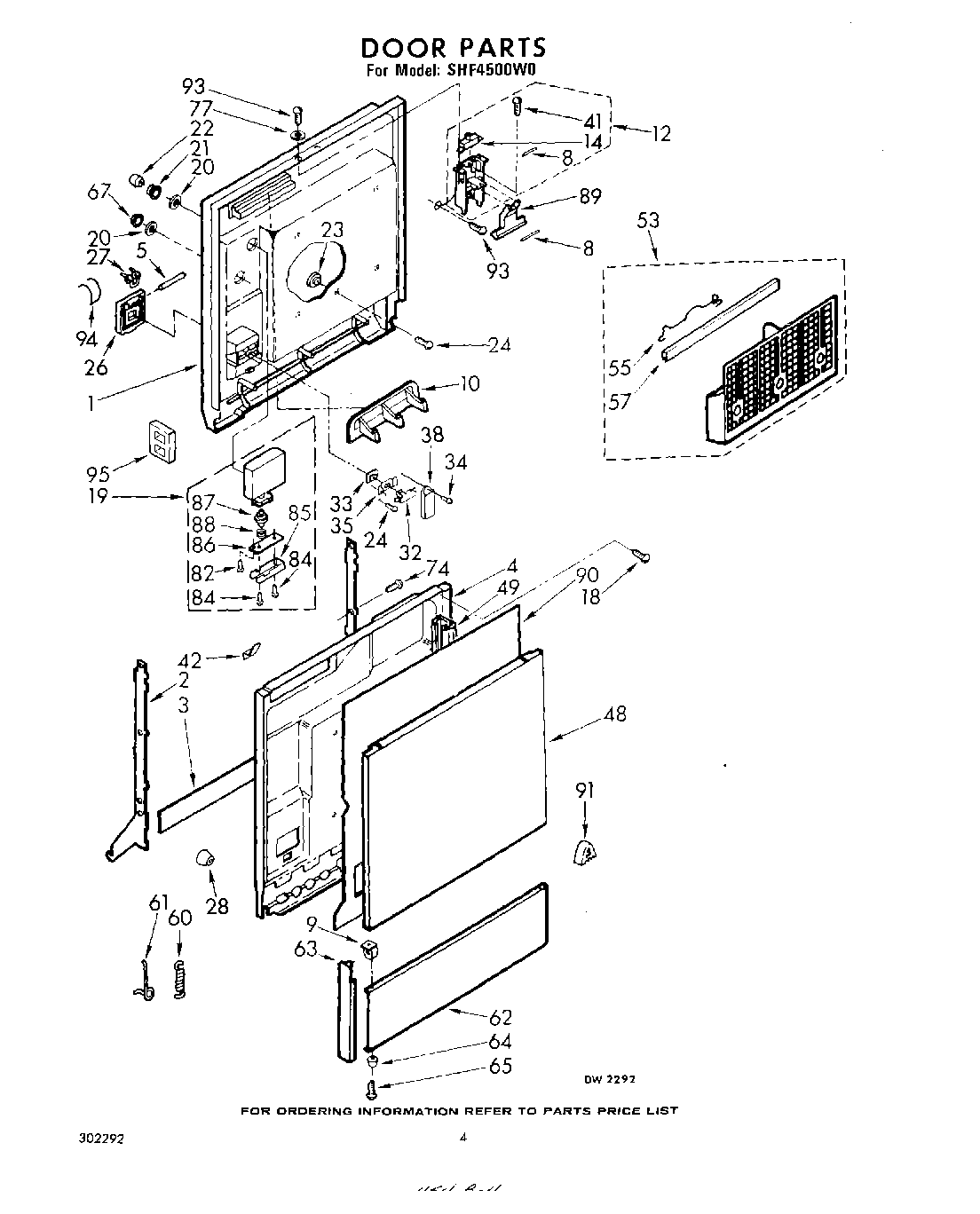

SHF4500W0 03 – DOOR
Written by
in
SHF4500W0 03 – DOOR
Products
Position
Product
1
Door, Inner (Includes Illus. 4)
2
Support, Door (R.H.)
2
Support, Door (L.H.)
3
Gasket, Door
4
Liner, Door
5
4387043 Whirlpool Door Latch Kit
8
Pin, Pivot
9
Grommet
10
Screen, Vent
12
Latch Assembly
14
Switch, Interlock (Alternate)
18
WP488729 Whirlpool Refrigerator Door Screw
19
Dispenser, Wetting Agent
20
Washer
21
Nut, 1-14
22
Indicator, Leveler
23
Button, Retainer (3)
24
Screw, 8-18 x 3/8 (3)
27
WP8066018 Whirlpool Spring Assembly
28
SCREW 8A
32
Lever, Catch
33
Seal, Lever
34
Screw, 8 x 1/2 (3)
35
Retainer
38
Actuator
41
Screw, 6-32 x 1
42
Ground Clip (2)
48
Panel, Front
49
Trim, Door (R.H.)
49
Trim, Door (L.H.)
53
Silverware Basket Assembly
55
Handle, Basket
57
Trim, Basket
60
675611 Whirlpool Spring Assembly
61
WP716401 Whirlpool Dishwasher Retainer
62
Panel, Access
63
Cap, End (L.H.)
63
Cap, End (R.H.)
64
Foot (2)
65
Screw, 8-18 x 5/8 (10)
67
Cap, Drip
74
WP488627 Whirlpool Refrigerator Screw
77
Washer (2)
82
WP98165 Whirlpool Screw
84
WP488163 Whirlpool Refrigerator Screw
85
Acutator Assembly
86
Plate
87
Diaphrag
88
WPL 718592
89
Lever, Release
90
Spacer, Panel
91
Retainer (2)
93
WP90767 Whirlpool Screw
94
Clip, Wire
95
Barrier, Detergent Dispenser
←
