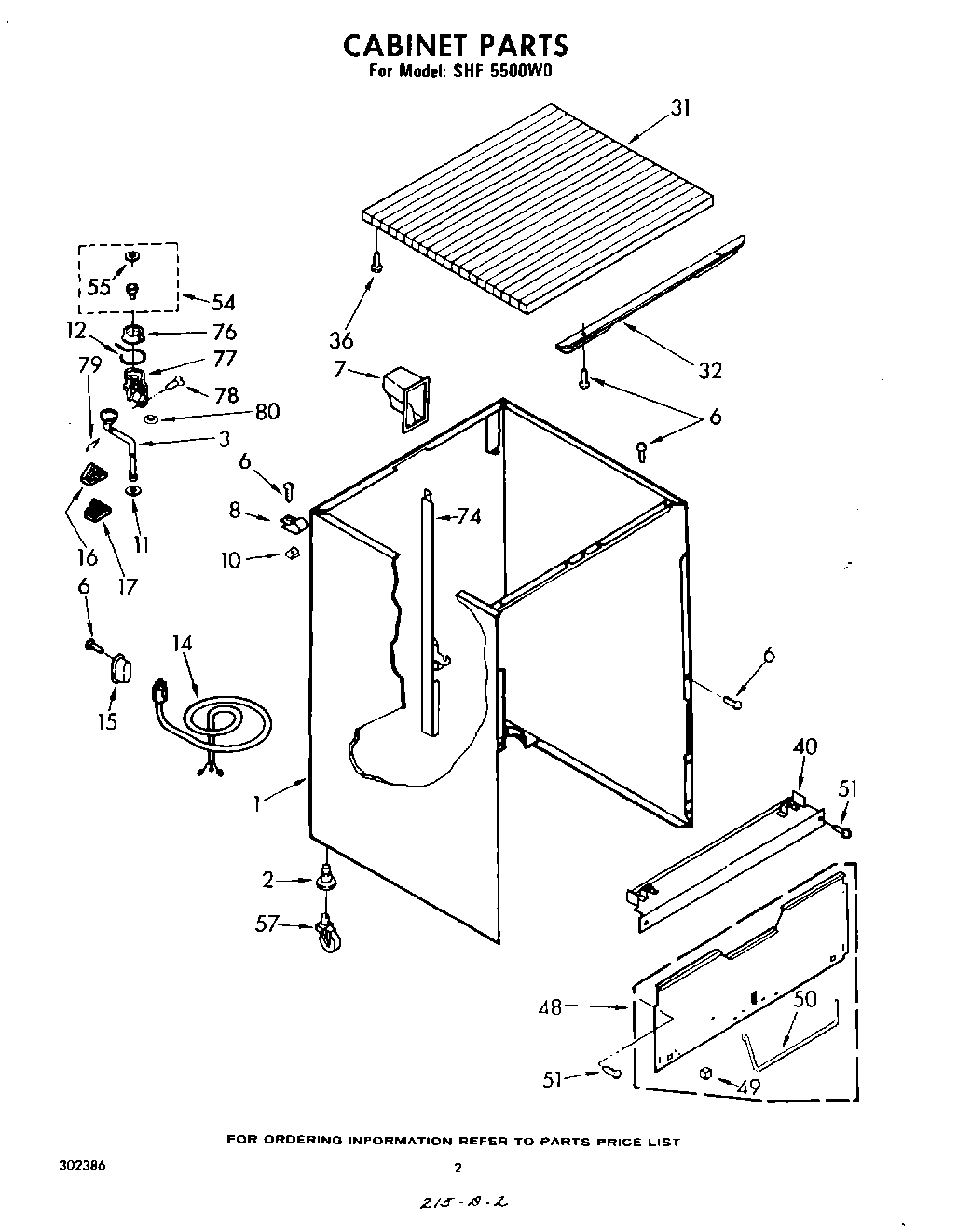

| 1 | Shell Assembly (White) |
| 1 | Shell Assembly (Almond) |
| 1 | Shell Assembly (New Avocado) |
| 1 | Shell Assembly (Coffee) |
| 1 | Shell Assembly (Golden Harvest) |
| 2 | Socket, Caster (Alternate) |
| 2 | Socket, Caster (Alternate) |
| 3 | Coupler Assembly |
| 6 | WP488787 Whirlpool Refrigerator Screw |
| 7 | Housing, Hose |
| 8 | Clamp, Strain Relief |
| 10 | Nut, J-Type |
| 11 | WP16123 Whirlpool Washer |
| 12 | Spring, Coupler |
| 14 | Cord, Power |
| 15 | Housing, Cord |
| 16 | Flow Divider, Upper |
| 17 | Flow Divider, Lower |
| 31 | Panel, Top |
| 32 | Trim, Front |
| 36 | WPL 343826 |
| 40 | Toeplate Assembly (Includes Illus. 43) |
| 48 | Plate, Cover |
| 49 | Bumper, Rubber |
| 50 | Bar, Torsion (R.H.) |
| 50 | Bar, Torsion (L.H.) |
| 51 | WP90767 Whirlpool Screw |
| 54 | WPW10254672 Whirlpool Faucet Adapter |
| 55 | Washer |
| 57 | WP3370639 Whirlpool Caster |
| 74 | Leg Assembly, L.H. |
| 74 | Leg Assembly, R.H. |
| 76 | Latch, Cap |
| 77 | Cover, R.H. |
| 77 | Cover, L.H. |
| 78 | Screw, 8-18 x 3/4 (Door Handle) |
| 79 | Coupler, Pull Ring |
| 80 | ``O`` Ring |
