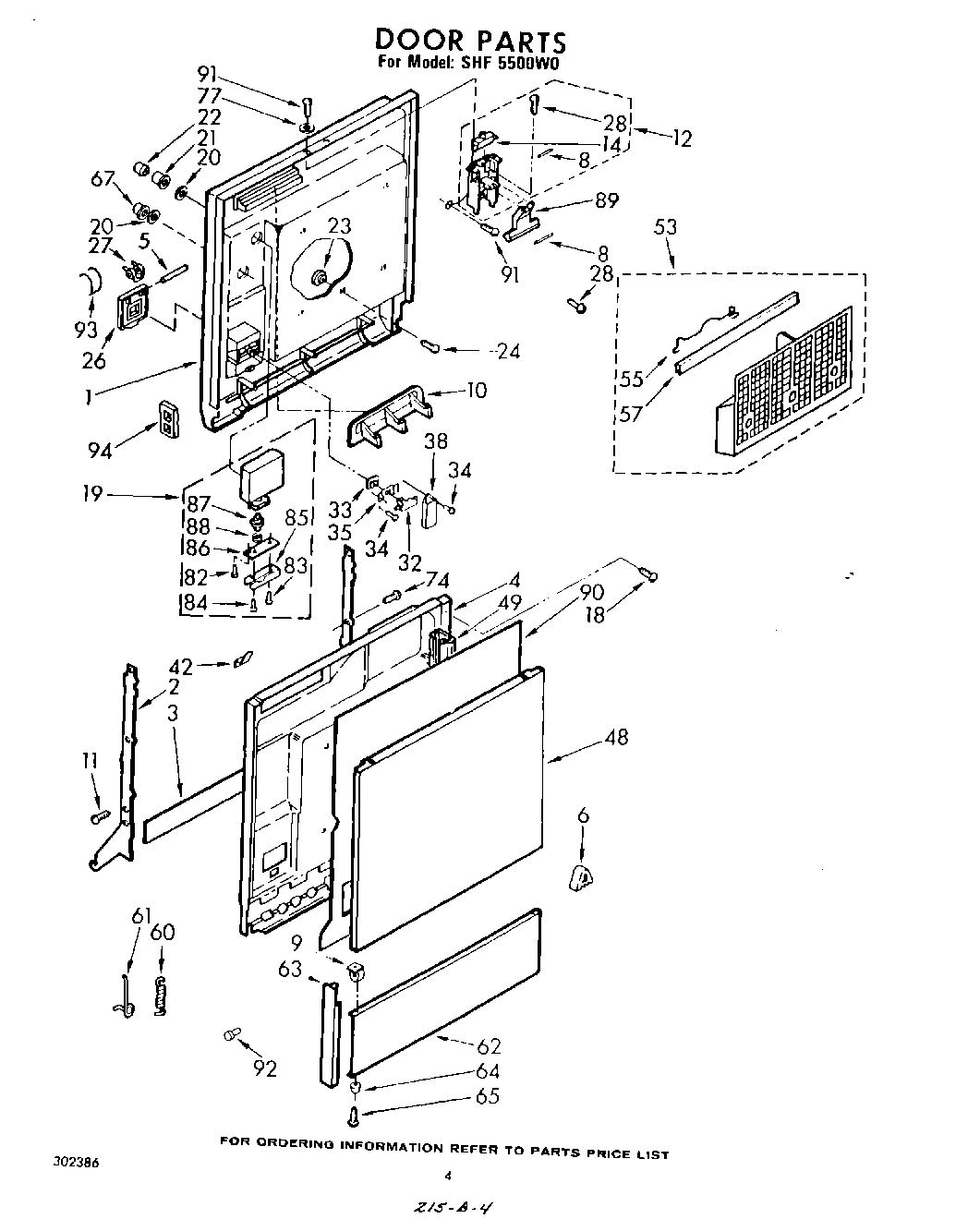

| 1 | Door, Inner (Includes Illus. 4) |
| 2 | Support, Door (R.H.) |
| 2 | Support, Door (L.H.) |
| 3 | Gasket, Door |
| 4 | Liner, Door |
| 5 | 4387043 Whirlpool Door Latch Kit |
| 6 | Retainer (2) |
| 8 | Pin, Pivot |
| 9 | Grommet |
| 10 | Screen, Vent |
| 11 | Screw |
| 12 | Latch Assembly |
| 14 | Switch, Interlock (Alternate) |
| 18 | WP488729 Whirlpool Refrigerator Door Screw |
| 19 | Dispenser, Wetting Agent |
| 20 | Washer |
| 21 | Nut, 1-14 |
| 22 | Indicator, Leveler |
| 23 | Button, Retainer (3) |
| 24 | Screw, 8-18 x 3/8 (3) |
| 27 | WP8066018 Whirlpool Spring Assembly |
| 28 | Screw, 6-32 x 1 |
| 32 | Lever, Catch |
| 33 | Seal, Lever |
| 34 | Screw, 8 x 1/2 (3) |
| 35 | Retainer |
| 38 | Actuator |
| 42 | Ground Clip (2) |
| 48 | Panel, Front (Coffee) |
| 48 | Panel, Front (White) |
| 48 | Panel, Front (New Avocado) |
| 48 | Panel, Front (Almond) |
| 48 | Panel, Front (Golden Harvest) |
| 49 | Trim, Door (L.H.) |
| 49 | Trim, Door (R.H.) |
| 53 | Silverware Basket Assembly |
| 55 | Handle, Basket |
| 57 | Trim, Basket |
| 60 | 675611 Whirlpool Spring Assembly |
| 61 | WP716401 Whirlpool Dishwasher Retainer |
| 62 | Panel, Access (Golden Harvest) |
| 62 | Panel, Access (Coffee) |
| 62 | Panel, Access (Almond) |
| 62 | Panel, Access (White) |
| 62 | Panel, Access (New Avocado) |
| 63 | Cap, End (R.H.) |
| 63 | Cap, End (L.H.) |
| 64 | Foot (2) |
| 65 | Screw, 8-18 x 5/8 (10) |
| 67 | Cap, Drip |
| 74 | WP488627 Whirlpool Refrigerator Screw |
| 77 | Washer (2) |
| 82 | WP98165 Whirlpool Screw |
| 83 | Screw |
| 84 | WP488163 Whirlpool Refrigerator Screw |
| 85 | Acutator Assembly |
| 86 | Plate |
| 87 | Diaphrag |
| 88 | WPL 718592 |
| 89 | Lever, Release |
| 90 | Spacer, Panel |
| 91 | WP90767 Whirlpool Screw |
| 92 | SCREW 8A |
| 93 | Clip, Wire |
| 94 | Barrier, Detergent Dispenser |
