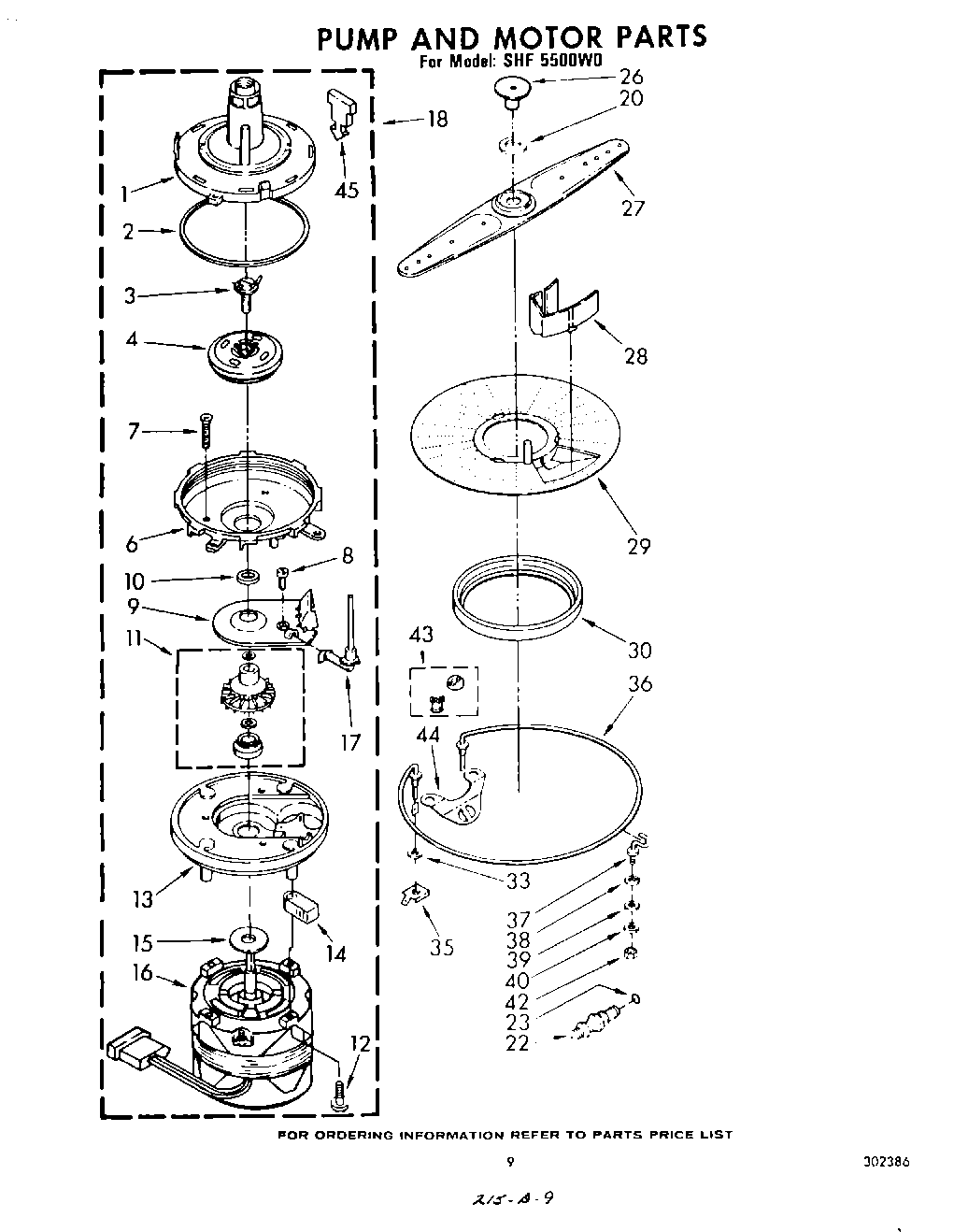

SHF5500W0 06 – PUMP AND MOTOR

Products

Position	Product
1	Pump Housing, Upper
2	Seal, Ring
3	Screw, 10-32 x .75
4	Impeller
6	Pump Housing, Lower
7	718257 Whirlpool Dishwasher Screw
8	WP9741232 Whirlpool Dishwasher Screw
9	Coverplate
10	Spacer
11	Kit, Impeller Drain
12	Screw, 13-16 (4)
13	Base, Pump
14	Support, Pump (4)
15	W10909679 Whirlpool Dishwasher Slinger
16	Motor (General Electric)
16	Motor (Emerson)
17	Bleeder Assembly
18	Pump & Motor Assembly (Alternate)
20	WP719576 Whirlpool Dishwasher Bearing
22	675238 Whirlpool Check Valve
23	``O`` Ring
26	Cap, Assembly
27	Spray Arm, Lower
28	Guard, Screen
29	Screen, Sump
30	717000 Whirlpool Dishwasher Gasket
33	WP717273 Whirlpool Dishwasher Rubber Washer
35	Nut, Heater Element
36	Heater (Alternate)
36	Heater (Alternate)
37	Support, Heater (2)
38	Washer, Retainer (2)
39	Washer (2)
40	Washer (2)
42	Nut, 10-32 (2)
43	Thermostat
44	Bracket
45	Key, Pump Housing
