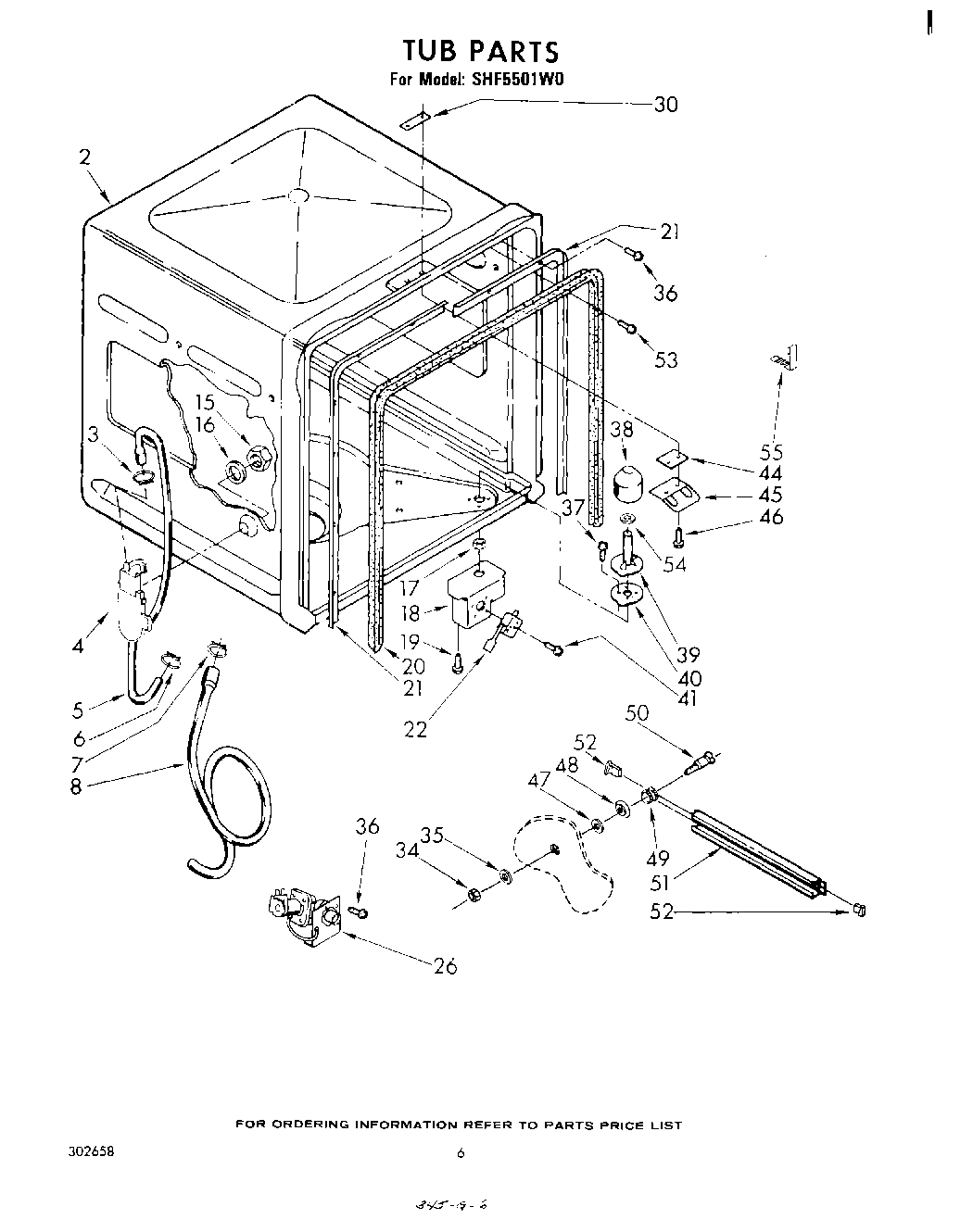

SHF5501W0 04 – TUB, LIT/OPTIONAL

Products

Position	Product
	WPL ARI130373A
2	Snap On Panel (White)
3	WPW10144763 Whirlpool Tie Wire
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	Clamp, Hose
8	Hose, Drain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (L.H.)
21	Retainer (R.H.)
22	Switch, Pressure (Alternate)
22	Retainer-Main Top (2 Required)
26	Valve, Water Inlet (Alternate)
30	Nut, Twin Spring
34	Nut, Lock
35	Washer (8)
36	WP90767 Whirlpool Screw
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WP72107 Whirlpool Touchup
55	Instructions, Installation
55	(1 Qt.) (Coffee (Uncut))
55	350956 Whirlpool Spray Assembly
55	72017 Whirlpool Appliance Touch-Up Paint White
55	799344 Whirlpool Refrigerator Paint
55	Tag, Energy Fact
55	List, Parts
55	Harness, Wiring
55	Guide, Use & Care
55	350930 Whirlpool White Spray Paint
55	Clip, Gasket (2)
55	Almond (Uncut)
55	WPL 799351
55	Enamel, New Avocado (1 Qt. Uncut)
55	Paint, Spray 13 Oz. (Avocado)
55	paint, spray 13 oz. (coffee)
55	Paint, Touch-Up 1/2 Oz. (Coffee)
55	72109 Whirlpool Dacor Avocado Touch-Up Paint
55	350942 Whirlpool Spray Paint
55	Golden Harvest (Uncut)
55	Golden Harvest
55	Leveler (Thinner) (2oz.)
55	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
55	Kit, Epoxy Patch (White)
