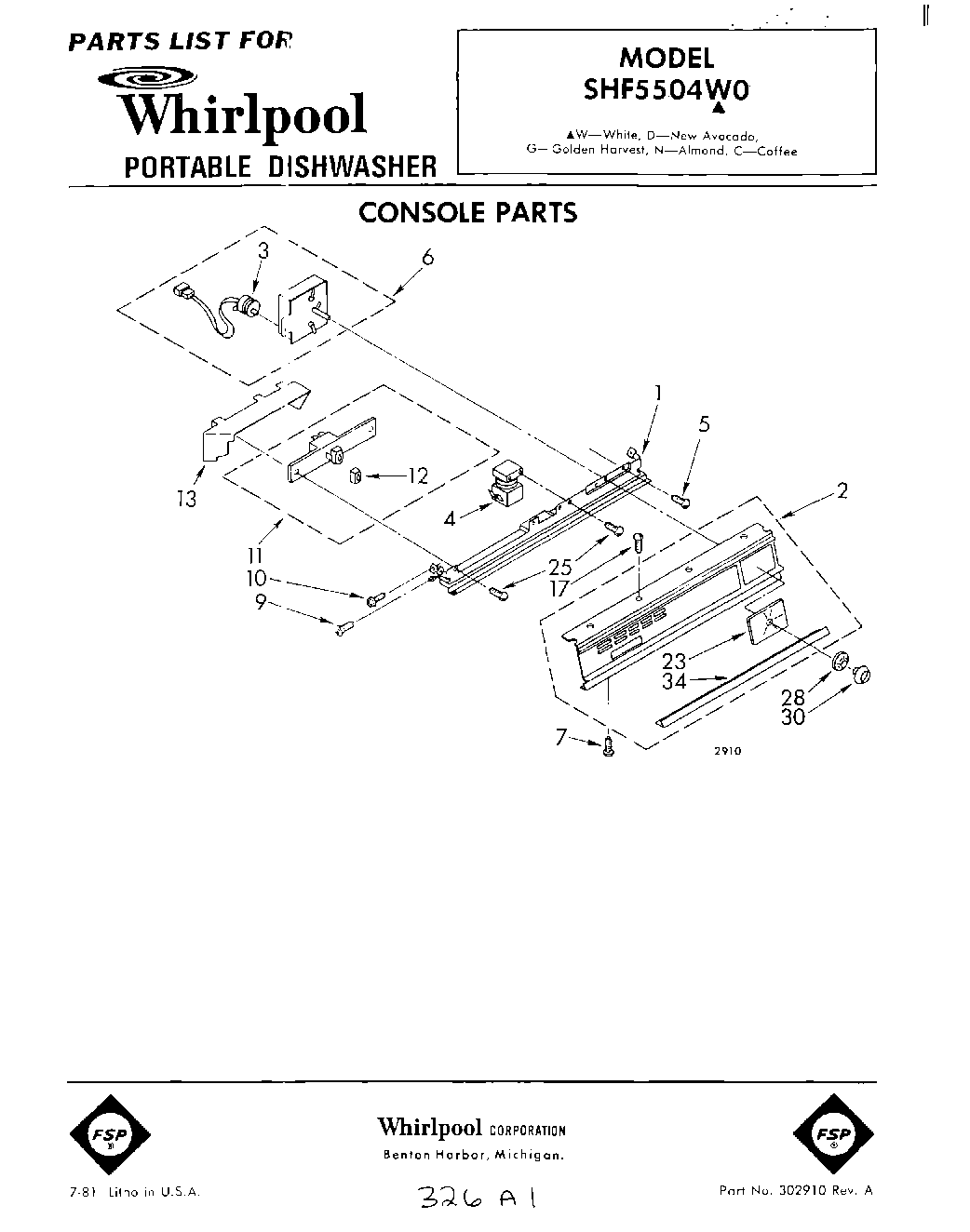

| 1 | Bracket, Console |
| 2 | Console Assembly |
| 3 | Motor, Timer |
| 4 | Relay, Start (Alternate) |
| 4 | Relay, Start (Alternate) |
| 4 | Relay, Start (Alternate) |
| 5 | WP356418 Whirlpool Screw |
| 6 | Timer, Disconnect |
| 7 | WP487353 Whirlpool Refrigerator Screw |
| 9 | WP488627 Whirlpool Refrigerator Screw |
| 10 | W11693756 Whirlpool Screw Assembly |
| 11 | Switch, Pushbutton |
| 12 | Button |
| 13 | Barrier, Pushbutton Switch |
| 17 | W10759522 Whirlpool Screw |
| 23 | Screw 10-24x2-3/8`` |
| 25 | WP489128 Whirlpool Refrigerator Screw |
| 28 | Dial, Indicator |
| 30 | Knob, Timer |
| 34 | Support-Flue Deflector |
