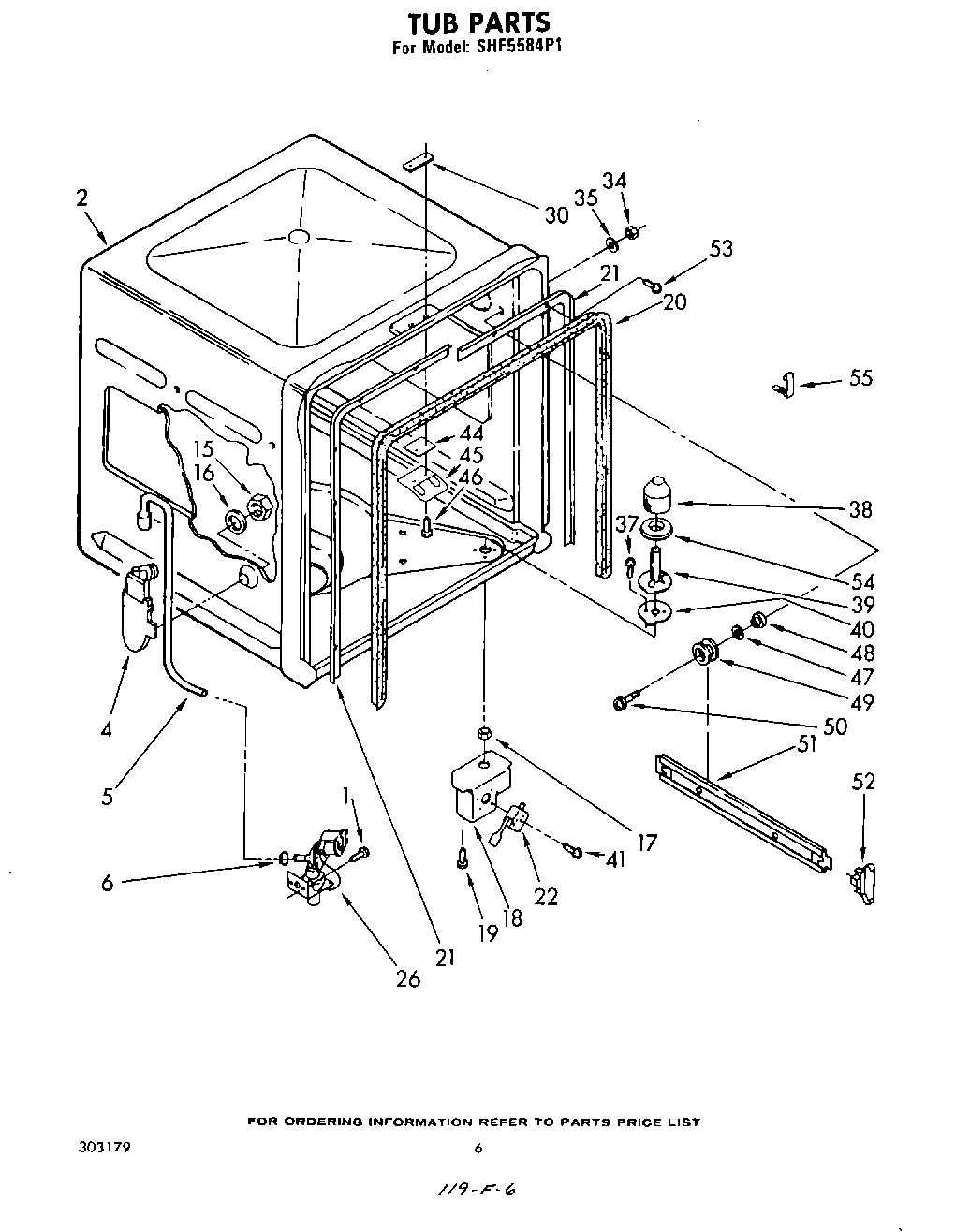

SHF5584P1 04 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	Golden Harvest (Uncut)
	Enamel, Coffee (1 Qt. Uncut)
	WPL 978833
	799344 Whirlpool Refrigerator Paint
	Enamel, New Avocado (1 Qt. Uncut)
1	WP90767 Whirlpool Screw
2	Tub Assembly
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (R.H.)
21	Retainer (L.H.)
22	Switch, Pressure (Alternate)
22	Retainer-Main Top (2 Required)
26	Valve, Water Inlet (Alternate)
30	Nut, Twin Spring
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	Tag, Energy Fact
55	Guide, Use & Care
55	Clip, Gasket (2)
55	Instructions, Installation
55	List, Repair parts
55	350930 Whirlpool White Spray Paint
55	72017 Whirlpool Appliance Touch-Up Paint White
55	WP72107 Whirlpool Touchup
55	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
55	Golden Harvest
55	350942 Whirlpool Spray Paint
55	285006 Whirlpool Spray
55	72109 Whirlpool Dacor Avocado Touch-Up Paint
55	Paint, Touch-Up 1/2 Oz. (Coffee)
55	paint, spray 13 oz. (coffee)
55	Paint, Spray 13 Oz. (Avocado)
55	Leveler (Thinner) (2oz.)
55	WPL 799351
55	Kit, Epoxy Patch (White)
55	350956 Whirlpool Spray Assembly
