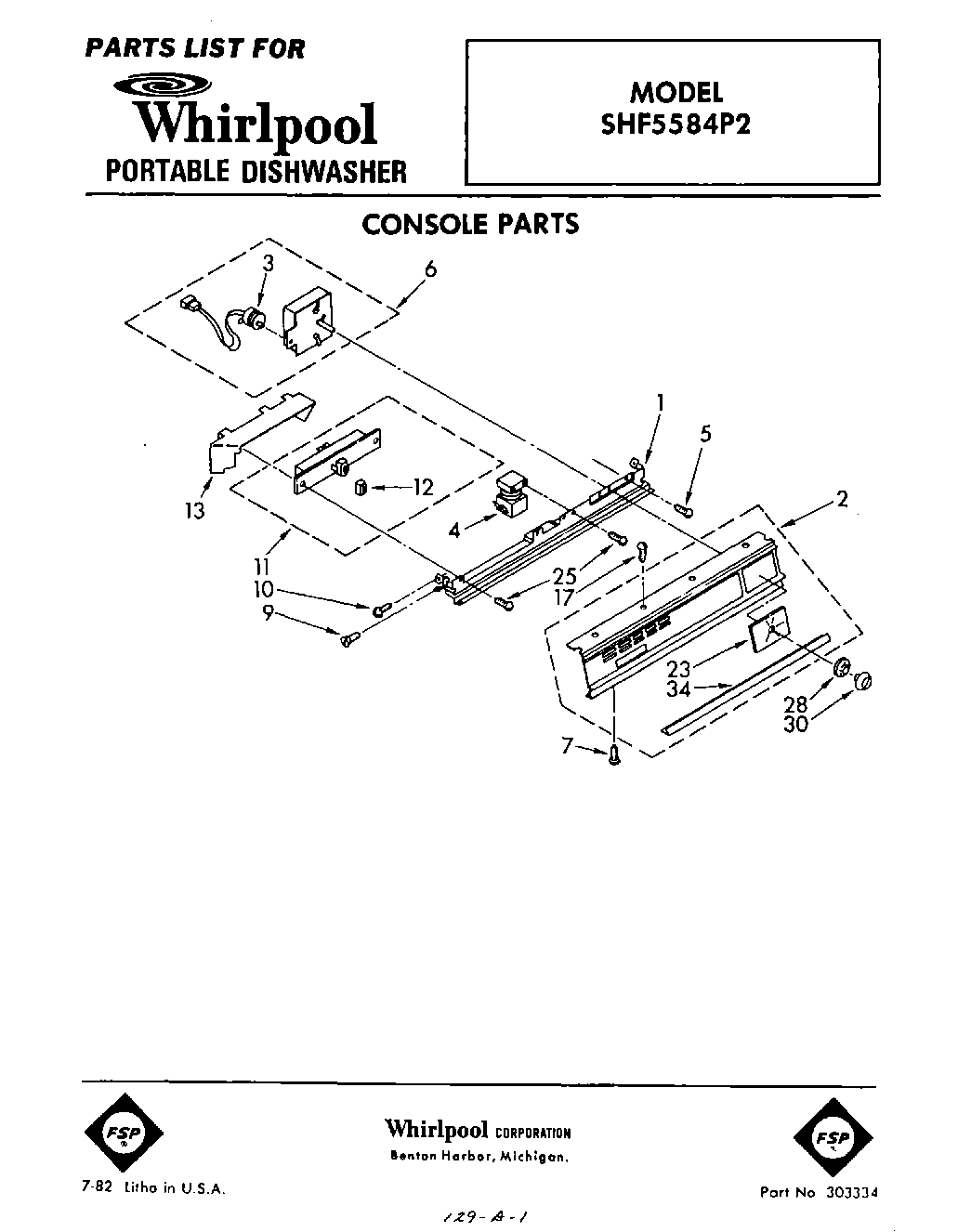

SHF5584P2 01 – CONSOLE

Products

PositionProduct
1Bracket, Console
2Console Assembly
3Motor, Timer
4Relay, Start (Alternate)
4Relay, Start (Alternate)
4Relay, Start (Alternate)
5WP356418 Whirlpool Screw
6Timer, Disconnect
7WP487353 Whirlpool Refrigerator Screw
9WP488627 Whirlpool Refrigerator Screw
10W11693756 Whirlpool Screw Assembly
11Switch, Pushbutton
12Button
13Barrier
17W10759522 Whirlpool Screw
23Screw 10-24×2-3/8“
25WP489128 Whirlpool Refrigerator Screw
28Dial, Indicator
30Knob, Timer
34Support-Flue Deflector
