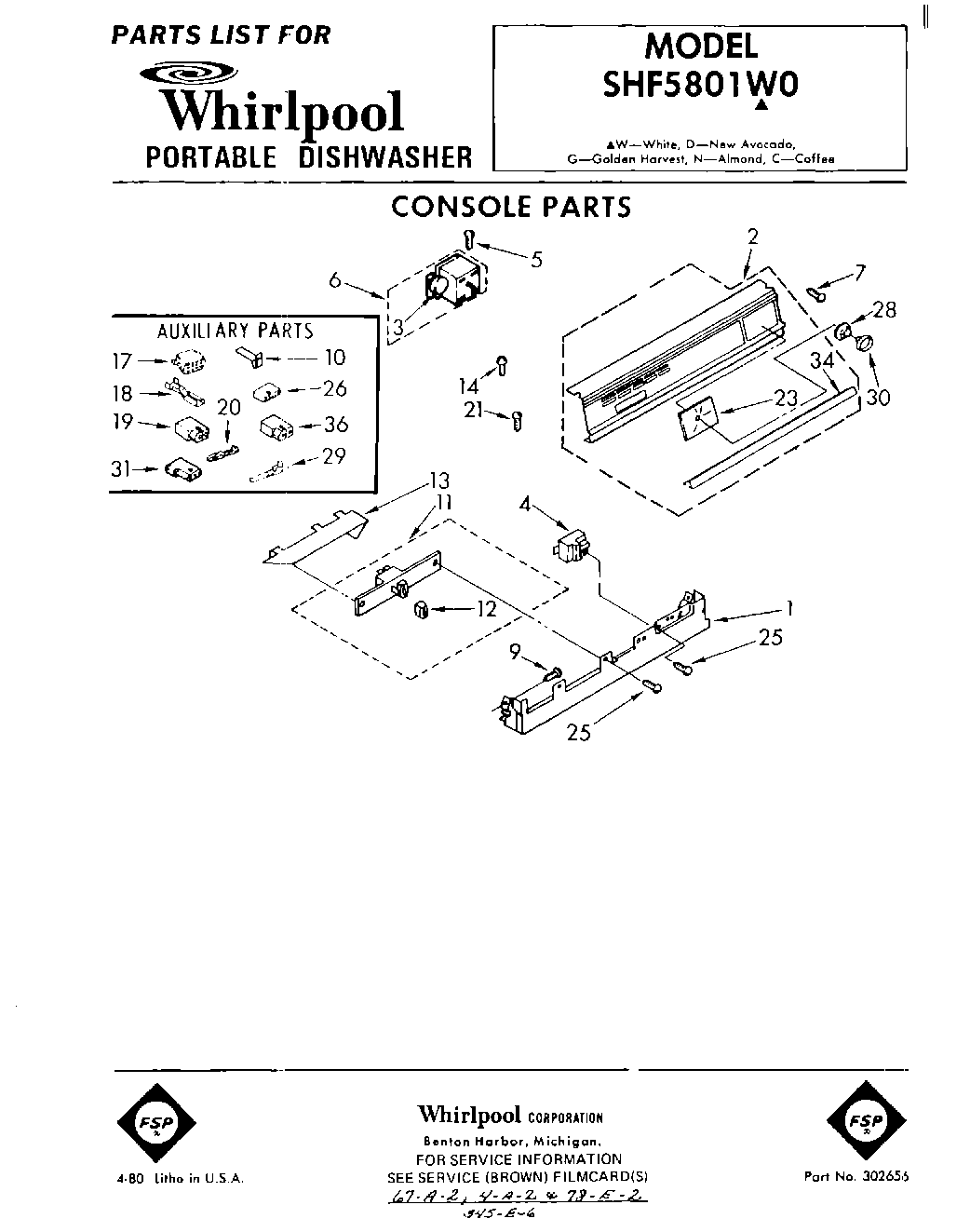

SHF5801W0 01 – CONSOLE

SHF5801W0 01 – CONSOLE

Written by

in

SHF5801W0 01 – CONSOLE

Products

PositionProduct
1Bracket, Console
2Console Assembly
3Motor, Timer
4Relay, Start (Alternate)
4Relay, Start (Alternate)
4Relay, Start (Alternate)
5WP356418 Whirlpool Screw
6Timer, Disconnect
7WP487353 Whirlpool Refrigerator Screw
9WP488627 Whirlpool Refrigerator Screw
10Retainer, Harness
11Switch, Pushbutton
12Button
13Barrier, Pushbutton Switch
14WP488787 Whirlpool Refrigerator Screw
17W10876590 Whirlpool Connector
18Terminal, Female
19Receptacle, Latching (2-Way) (Uses Terminal 94614)
20WP94614 Whirlpool Terminal
21Screw
23Insert
25WP489128 Whirlpool Refrigerator Screw
26Receptacle (5-Circuit)
28Dial, Indicator
29WP596797 Whirlpool Terminal
30Knob
31Connector (Door Switch)
34Support-Flue Deflector
36WP717253 Whirlpool Dishwasher Connector
