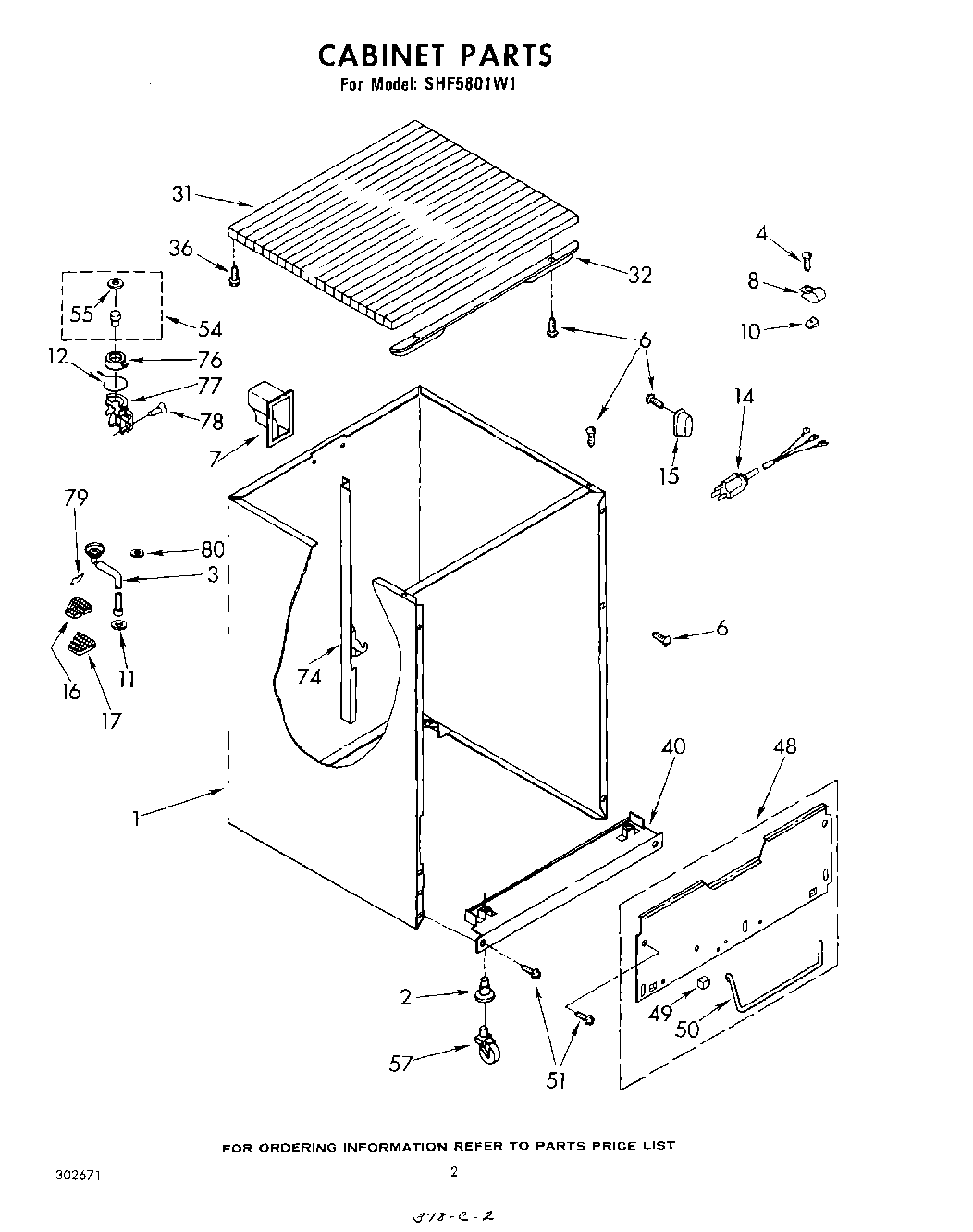

SHF5801W1 02 – CABINET

Products

Position	Product
1	Shell Assembly (White)
1	Shell Assembly (Almond)
1	Shell Assembly (New Avocado)
1	Shell Assembly (Coffee)
1	Shell Assembly (Golden Harvest)
2	Socket, Caster (Alternate)
2	Socket, Caster (Alternate)
3	Coupler Assembly
4	WP489128 Whirlpool Refrigerator Screw
6	WP488787 Whirlpool Refrigerator Screw
7	Housing, Hose
8	Clamp, Strain Relief
10	Nut, J-Type
11	WP16123 Whirlpool Washer
12	Spring, Coupler
14	Cord, Power
15	Housing, Cord
16	Flow Divider, Upper
17	Flow Divider, Lower
31	Panel, Top
32	Trim, Front
36	WPL 343826
40	Toeplate Assembly (Includes Illus. 43)
48	Plate, Cover
49	Bumper, Rubber
50	Bar, Torsion (L.H.)
50	Bar, Torsion (R.H.)
51	WP90767 Whirlpool Screw
54	WPW10254672 Whirlpool Faucet Adapter
55	Washer
57	WP3370639 Whirlpool Caster
74	Leg Assembly, L.H.
74	Leg Assembly, R.H.
76	Latch, Cap
77	Cover, R.H.
77	Cover, L.H.
78	Screw, 8-18 x 3/4 (Door Handle)
79	Coupler, Pull Ring
80	“O“ Ring
