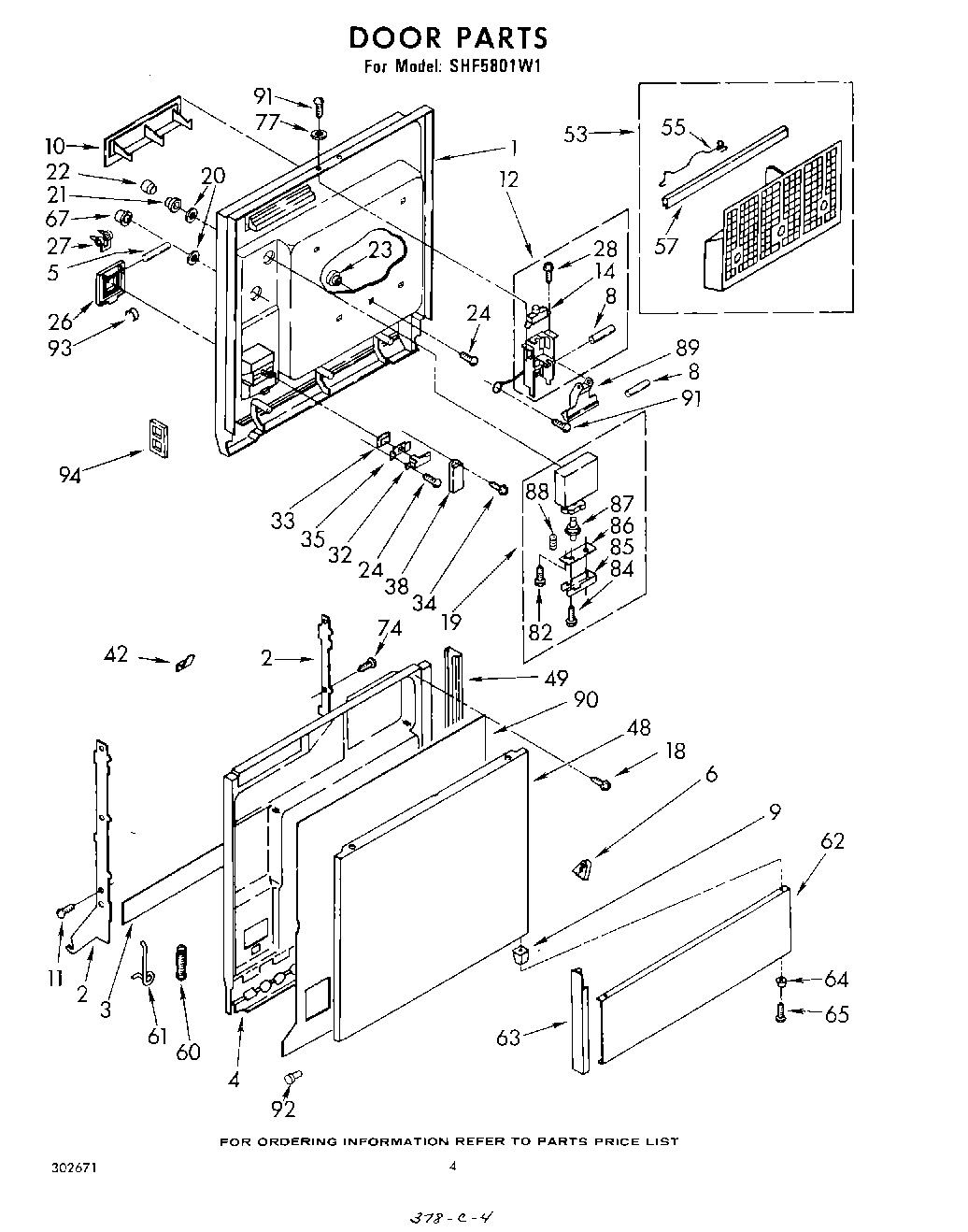

SHF5801W1 03 – DOOR

Products

Position	Product
1	Door, Inner (Includes Illus. 4)
2	Support, Door (L.H.)
2	Support, Door (R.H.)
3	Gasket, Door
4	Liner, Door
5	4387043 Whirlpool Door Latch Kit
6	Retainer (2)
8	Pin, Pivot
9	Grommet
10	Screen, Vent
11	Screw
12	Latch Assembly
14	Switch, Interlock (Alternate)
18	WP488729 Whirlpool Refrigerator Door Screw
19	Dispenser, Wetting Agent
20	Washer
21	Nut, 1-14
22	Indicator, Leveler
23	Button, Retainer (3)
24	Screw, 8-18 x 3/8 (3)
27	WP8066018 Whirlpool Spring Assembly
28	Screw, 6-32 x 1
32	Lever, Catch
33	Seal, Lever
34	Screw, 8 x 1/2 (3)
35	Retainer
38	Actuator
42	Ground Clip (2)
48	Panel, Front
49	Trim, Door (L.H.)
49	Trim, Door (R.H.)
53	Silverware Basket Assembly
55	Handle, Basket
57	Trim, Basket
60	675611 Whirlpool Spring Assembly
61	WP716401 Whirlpool Dishwasher Retainer
62	Panel, Access
63	Cap, End (L.H.)
63	Cap, End (R.H.)
64	Foot (2)
65	Screw, 8-18 x 5/8 (10)
67	Cap, Drip
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
82	WP98165 Whirlpool Screw
84	WP488163 Whirlpool Refrigerator Screw
85	Acutator Assembly
86	Plate
87	Diaphrag
88	WPL 718592
89	Lever, Release
90	Spacer, Panel
91	WP90767 Whirlpool Screw
92	SCREW 8A
93	Clip, Wire
94	Barrier, Detergent Dispenser
