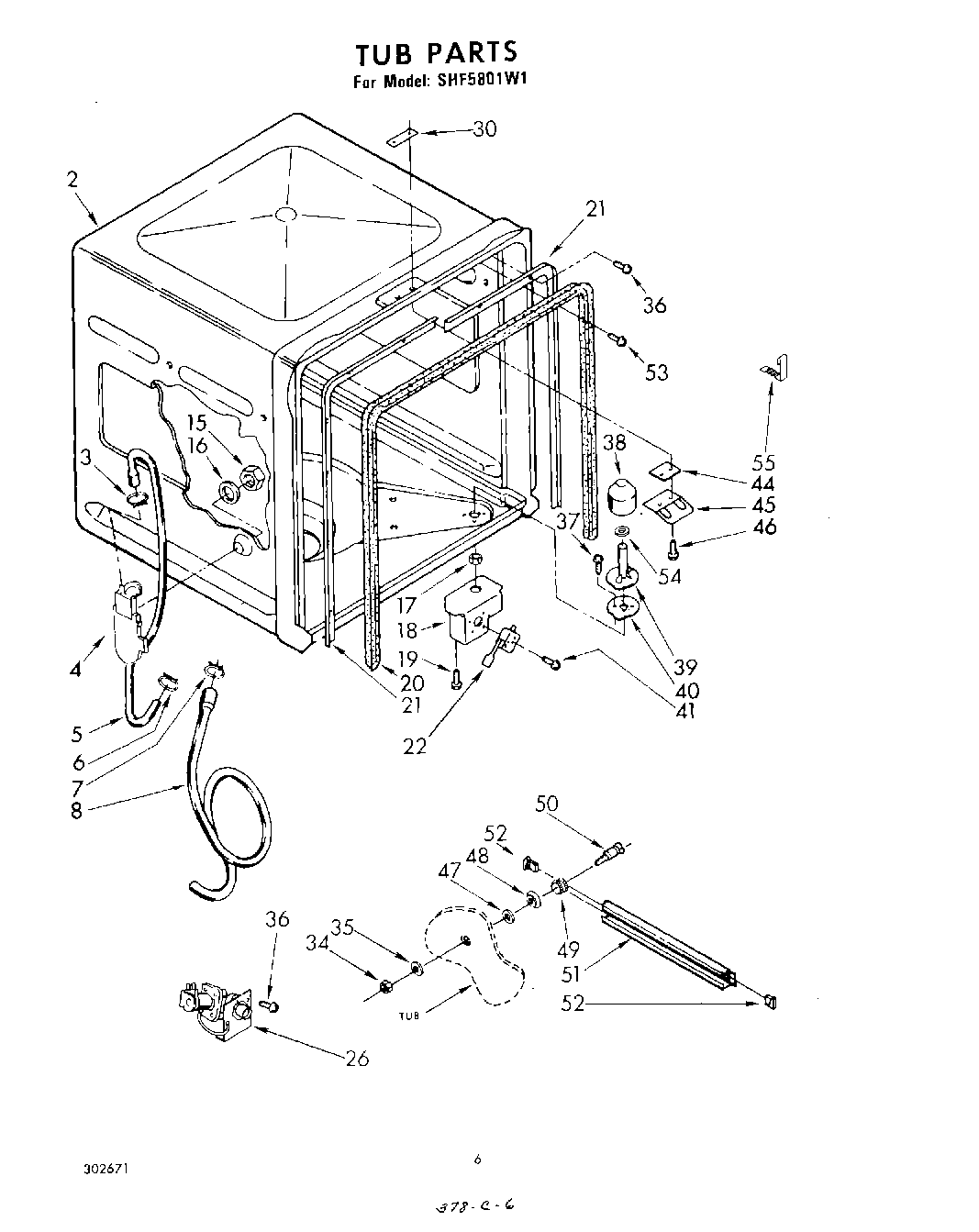

SHF5801W1 04 – TUB , LIT/OPTIONAL

SHF5801W1 04 – TUB , LIT/OPTIONAL

Written by

in

SHF5801W1 04 – TUB , LIT/OPTIONAL

Products

Position	Product
	WPL ARI130387A
	Golden Harvest (Uncut)
	(1 Qt.) (Coffee (Uncut))
	Enamel, New Avocado (1 Qt. Uncut)
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	WPL ARI130385A
	WPL ARI130386A
2	Snap On Panel (White)
3	WPW10144763 Whirlpool Tie Wire
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	Clamp, Hose
8	Hose, Drain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (R.H.)
21	Retainer (L.H.)
22	Switch, Pressure (Alternate)
22	Retainer-Main Top (2 Required)
26	Valve, Water Inlet (Alternate)
30	Nut, Twin Spring
34	Nut, Lock
35	Washer (8)
36	WP90767 Whirlpool Screw
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	72017 Whirlpool Appliance Touch-Up Paint White
55	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
55	Tag, Energy Fact
55	350956 Whirlpool Spray Assembly
55	350930 Whirlpool White Spray Paint
55	WP72107 Whirlpool Touchup
55	Harness, Wiring
55	Guide, Use & Care
55	Golden Harvest
55	Clip, Gasket (2)
55	Kit, Epoxy Patch (White)
55	WPL 799351
55	Leveler (Thinner) (2oz.)
55	Paint, Spray 13 Oz. (Avocado)
55	paint, spray 13 oz. (coffee)
55	Paint, Touch-Up 1/2 Oz. (Coffee)
55	72109 Whirlpool Dacor Avocado Touch-Up Paint
55	Main Top (White)
55	350942 Whirlpool Spray Paint
55	Instructions, Installation
