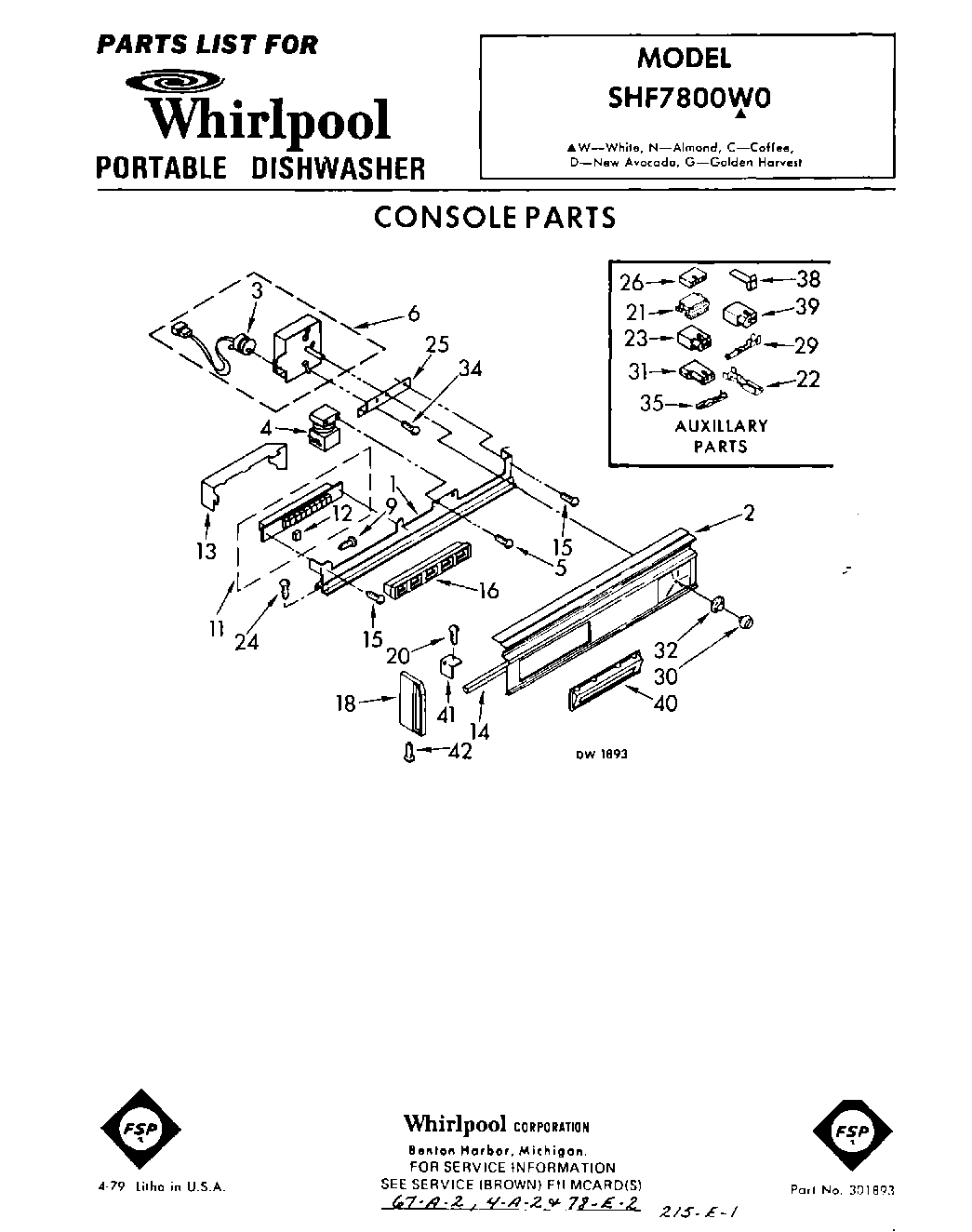

SHF7800W0 01 – CONSOLE

Written by

Products

Position	Product
1	Bracket, Console
2	Panel, Escutcheon
3	Motor, Timer
4	Relay, Start (Alternate)
4	Relay, Start (Alternate)
4	Relay, Start (Alternate)
5	Screw (2)
6	Timer, Disconnect
9	WP488627 Whirlpool Refrigerator Screw
11	Switch, Pushbutton
12	Button (9)
13	Barrier, Pushbutton Switch
14	Baffle
15	WP489128 Whirlpool Refrigerator Screw
16	Grille, Vent
18	Cap, End (R.H.)
18	Cap, End (L.H.)
20	WP488787 Whirlpool Refrigerator Screw
21	W10876590 Whirlpool Connector
22	Terminal, Female
23	Receptacle, Latching (2-Way) (Uses Terminal 94614)
24	WP487353 Whirlpool Refrigerator Screw
25	Bracket, Timer
26	Receptacle (5-Circuit)
29	WP596797 Whirlpool Terminal
30	Knob, Timer
31	Connector (Door Switch)
32	Dial, Indicator
34	WP356418 Whirlpool Screw
35	WP94614 Whirlpool Terminal
38	Retainer, Harness
39	WP717253 Whirlpool Dishwasher Connector
40	Bezel Assembly
41	Bracket, End Cap
42	Screw, 8-18 x 1 (2)
