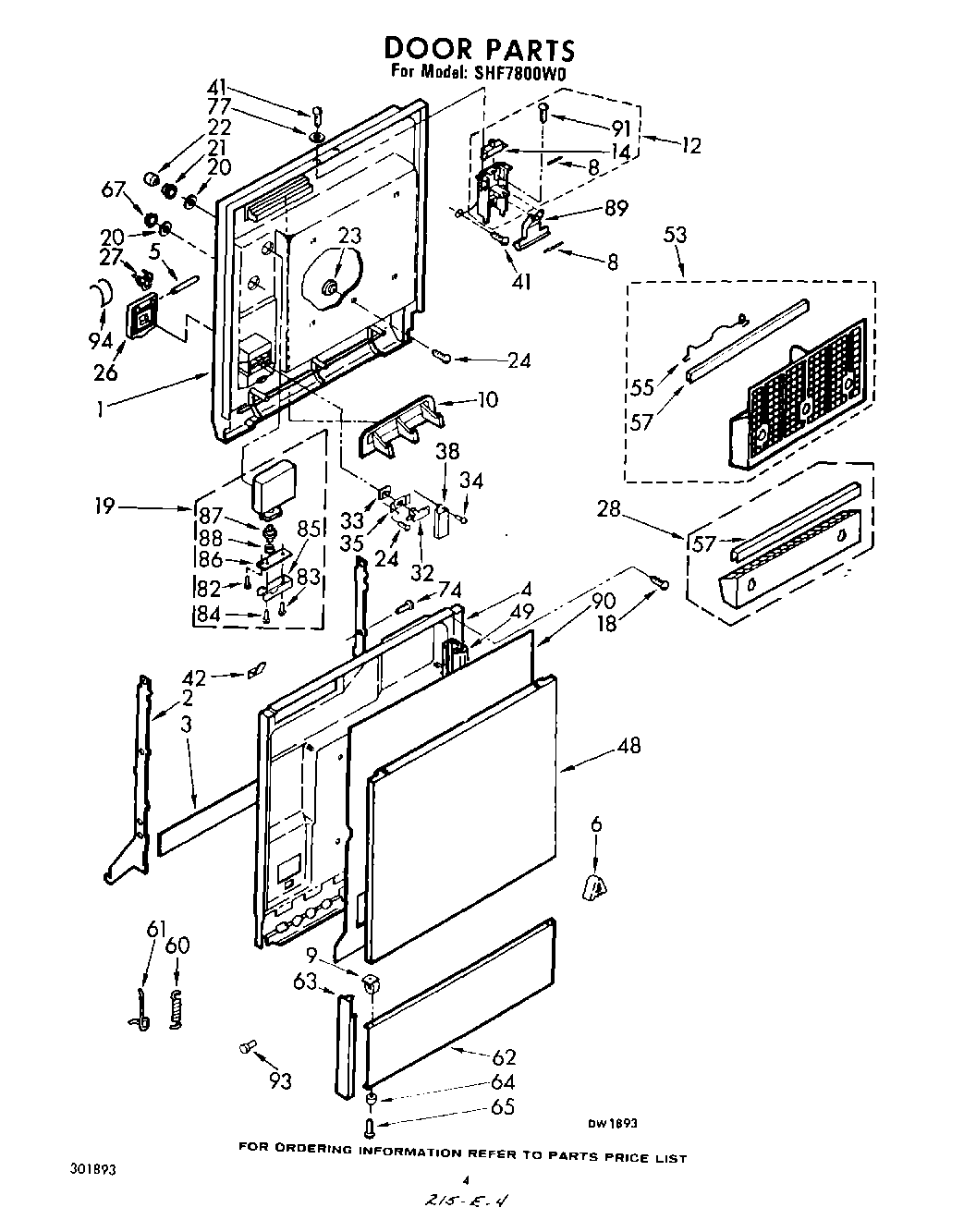

SHF7800W0 03 – DOOR

Products

Position	Product
1	Door, Inner (Includes Illus. 4)
2	Support, Door (L.H.)
2	Support, Door (R.H.)
3	Gasket, Door
4	Liner, Door
5	4387043 Whirlpool Door Latch Kit
6	Retainer (2)
8	Pin, Pivot
9	Grommet
10	Screen, Vent
12	Latch Assembly
14	Switch, Interlock (Alternate)
18	WP488729 Whirlpool Refrigerator Door Screw
19	Dispenser, Wetting Agent
20	Washer
21	Nut, 1-14
22	Indicator, Leveler
23	Button, Retainer (3)
24	Screw, 8-18 x 3/8 (3)
27	WP8066018 Whirlpool Spring Assembly
28	Utensil Basket
32	Lever, Catch
33	Seal, Lever
34	Screw, 8 x 1/2 (3)
35	Retainer
38	Actuator
41	WP90767 Whirlpool Screw
42	Ground Clip (2)
48	Panel, Front (White)
48	Panel, Front (Coffee)
48	Panel, Front (New Avocado)
48	Panel, Front (Golden Harvest)
48	Panel, Front (Almond)
49	Trim, Door (R.H.)
49	Trim, Door (L.H.)
53	Silverware Basket Assembly
55	Handle, Basket
57	Trim, Basket
60	675611 Whirlpool Spring Assembly
61	WP716401 Whirlpool Dishwasher Retainer
62	Panel, Access (Coffee)
62	Panel, Access (White)
62	Panel, Access (Golden Harvest)
62	Panel, Access (New Avocado)
62	Panel, Access (Almond)
63	Cap, End (L.H.)
63	Cap, End (R.H.)
64	Foot (2)
65	Screw, 8-18 x 5/8 (10)
67	Cap, Drip
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
82	WP98165 Whirlpool Screw
83	Screw
84	WP488163 Whirlpool Refrigerator Screw
85	Acutator Assembly
86	Plate
87	Diaphrag
88	WPL 718592
89	Lever, Release
90	Spacer, Panel
91	Screw, 6-32 x 1
93	SCREW 8A
94	Clip, Wire
