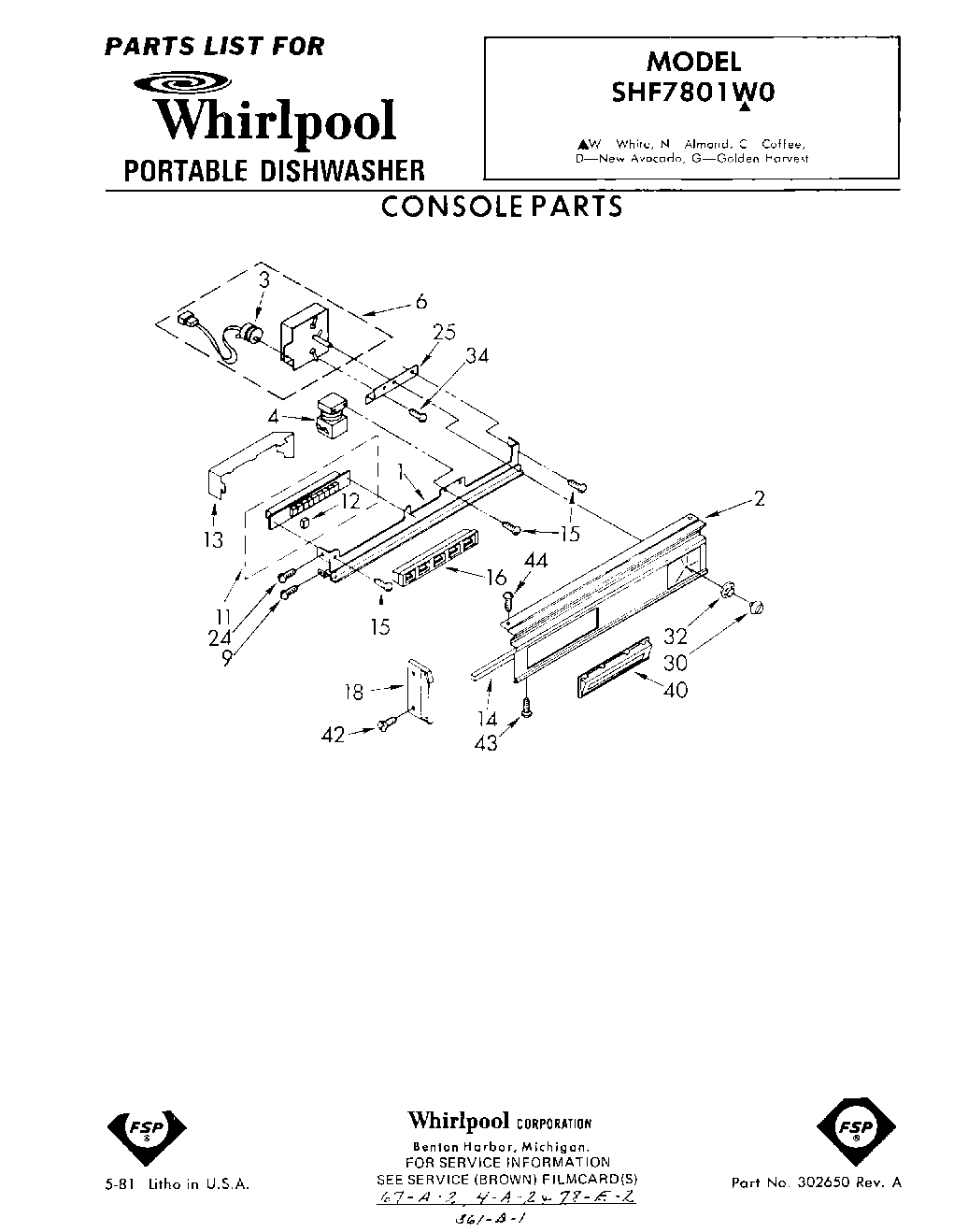

SHF7801W0 01 – CONSOLE

Products

PositionProduct
1Bracket, Console
2Panel, Escutcheon
3Motor, Timer
4Relay, Start (Alternate)
4Relay, Start (Alternate)
4Relay, Start (Alternate)
6Timer, Disconnect
11Switch, Pushbutton
12Button (9)
13Barrier, Pushbutton Switch
14Baffle
15WP489128 Whirlpool Refrigerator Screw
16Grille, Vent
18Clock w/Hr. Timer
18Cap, End (L.H.)
24WP488627 Whirlpool Refrigerator Screw
25Bracket, Timer
30Knob, Timer
32Dial, Indicator
34WP356418 Whirlpool Screw
40Bezel Assembly
42W10759522 Whirlpool Screw
43WP487353 Whirlpool Refrigerator Screw
44W11693756 Whirlpool Screw Assembly
