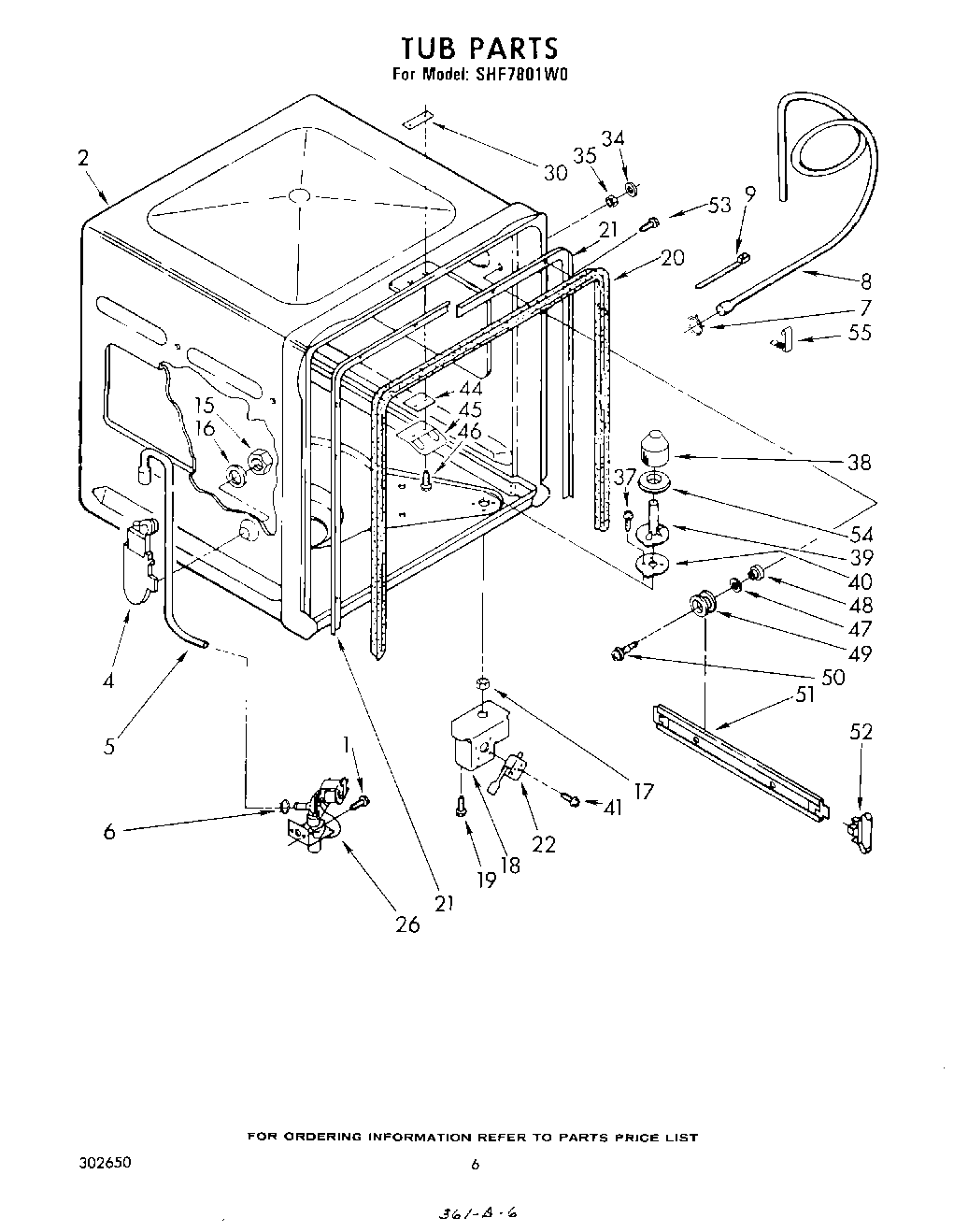

SHF7801W0 04 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	Golden Harvest (Uncut)
	Enamel, Coffee (1 Qt. Uncut)
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	Enamel, New Avocado (1 Qt. Uncut)
1	WP90767 Whirlpool Screw
2	Snap On Panel (White)
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	Clamp, Hose
8	Hose, Drain
9	WPW10144763 Whirlpool Tie Wire
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (R.H.)
21	Retainer (L.H.)
22	Retainer-Main Top (2 Required)
22	Switch, Pressure (Alternate)
26	Valve, Water Inlet (Alternate)
30	Nut, Twin Spring
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	72017 Whirlpool Appliance Touch-Up Paint White
55	WP72107 Whirlpool Touchup
55	Instructions, Installation
55	350930 Whirlpool White Spray Paint
55	350956 Whirlpool Spray Assembly
55	Tag, Energy Fact
55	Guide, Use & Care
55	Clip, Gasket (2)
55	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
55	WPL 799351
55	Leveler (Thinner) (2oz.)
55	Paint, Spray 13 Oz. (Avocado)
55	paint, spray 13 oz. (coffee)
55	Paint, Touch-Up 1/2 Oz. (Coffee)
55	72109 Whirlpool Dacor Avocado Touch-Up Paint
55	285006 Whirlpool Spray
55	Kit, Epoxy Patch (White)
55	350942 Whirlpool Spray Paint
55	Golden Harvest
55	List, Repair Parts
