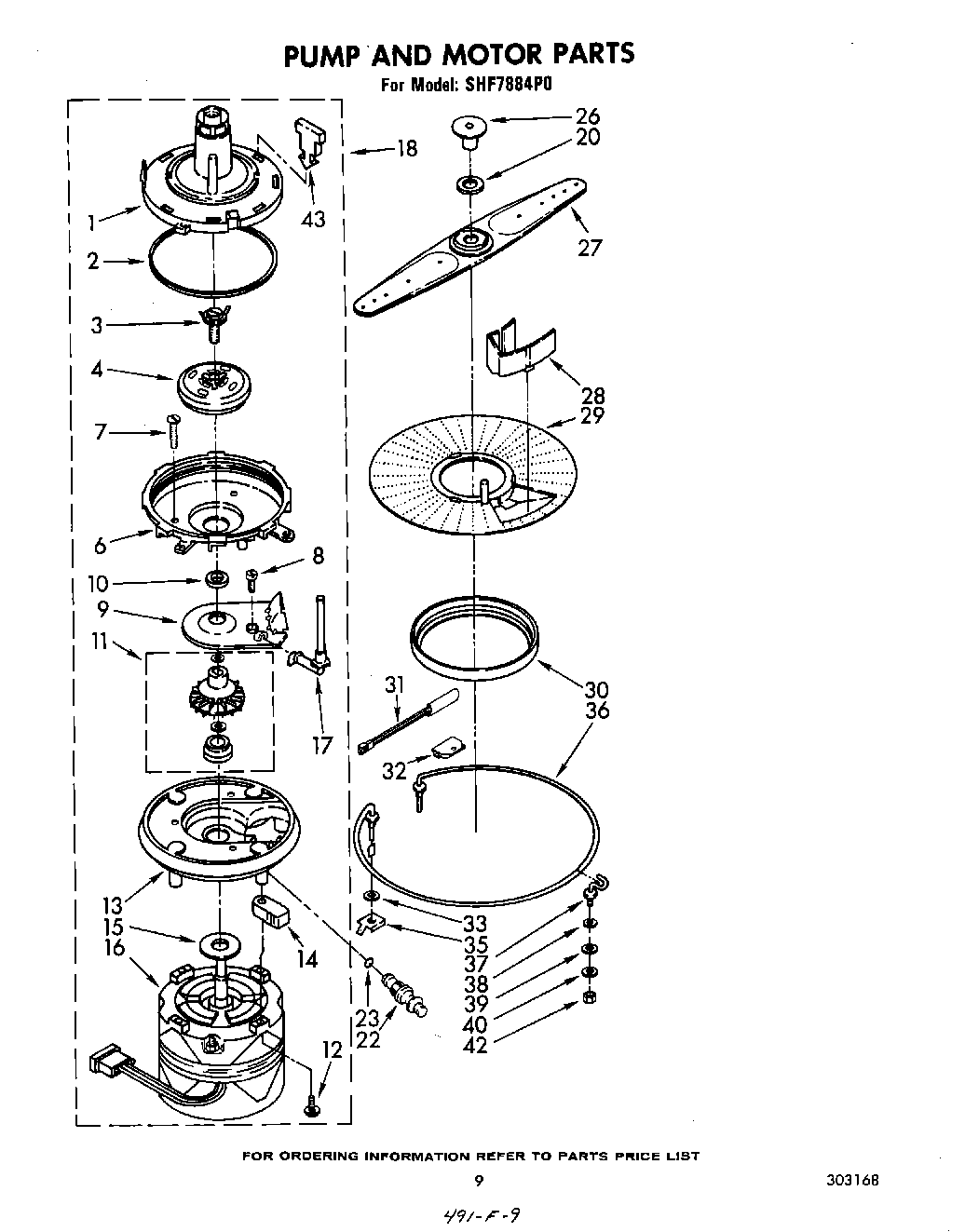

SHF7884P0 06 – PUMP AND MOTOR

Products

Position	Product
1	Pump Housing, Upper
2	Seal, Ring
3	Screw, 10-32 x .75
4	Impeller
6	Pump Housing, Lower
7	718257 Whirlpool Dishwasher Screw
8	WP9741232 Whirlpool Dishwasher Screw
9	Coverplate
10	Spacer
11	Kit, Impeller Drain
12	Screw, 13-16 (4)
13	Base, Pump
14	Support, Pump (4)
15	W10909679 Whirlpool Dishwasher Slinger
16	Motor (Emerson)
16	Motor (General Electric)
17	Bleeder Assembly
18	Pump & Motor Assembly (Alternate)
18	Pump & Motor Assembly (Alternate)
18	Pump & Motor Assembly (Alternate)
20	WP719576 Whirlpool Dishwasher Bearing
22	Adapter, Valve Check (Includes Illus. 38)
23	“O“ Ring
26	Cap, Nozzle
27	Spray Arm, Lower
28	Guard, Screen
29	Screen, Sump
30	717000 Whirlpool Dishwasher Gasket
31	Thermostat
32	Bracket
33	WP717273 Whirlpool Dishwasher Rubber Washer
35	Nut, Heater Element
36	Heater (Alternate)
36	Heater (Alternate)
36	Heater (Alternate)
36	Heater (Alternate)
37	Support, Heater (2)
38	Washer, Retainer (2)
39	Washer (2)
40	Washer (2)
42	Nut, Hex
43	Key, Pump Housing
