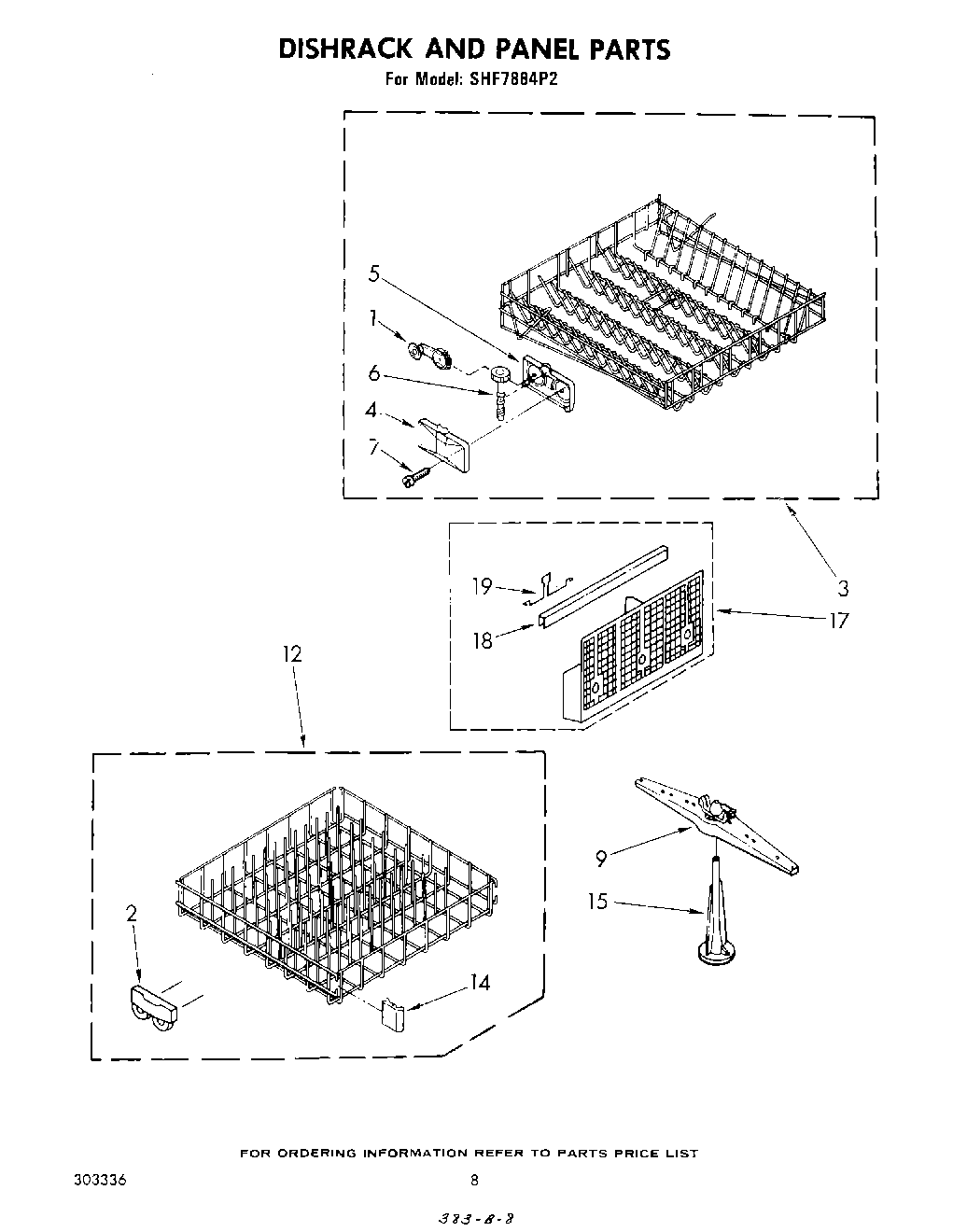

SHF7884P2 05 – DISHRACK AND PANEL

SHF7884P2 05 – DISHRACK AND PANEL

Written by

in

SHF7884P2 05 – DISHRACK AND PANEL

Products

PositionProduct
1Wheel & Gear Assembly (4)
24317933 Whirlpool Lower Rack Wheels
3W11169039 Whirlpool Dishwasher Dish Rack
4Cover, Housing (2)
5Housing, Gear (2)
6Worm, Dishrack (2)
7WP9741232 Whirlpool Dishwasher Screw
9WP304204 Whirlpool Dishwasher Spray Arm
12W10311986 Whirlpool Dishwasher Lower Rack
14Bumper (2)
15Tower
17Silverware Basket Assembly
18Trim, Basket
19Handle, Basket
