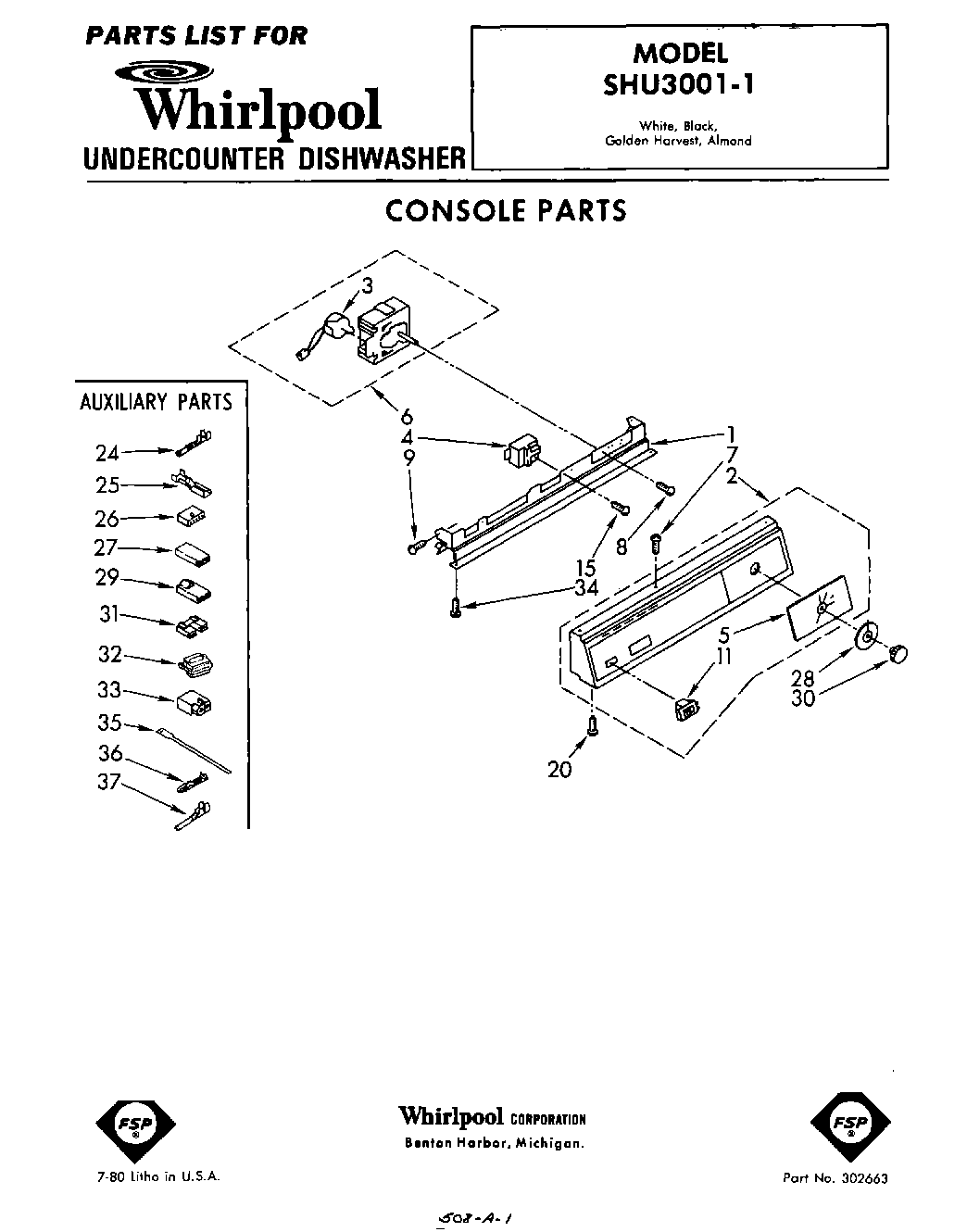

SHU30011 01 – CONSOLE

Products

Position	Product
1	Bracket, Console
2	Panel, Escutcheon
3	Motor, Timer
4	Relay, Start (Alternate)
4	Relay, Start (Alternate)
4	Relay, Start (Alternate)
5	Insert
6	Timer
7	Screw
8	WP356418 Whirlpool Screw
9	WP488627 Whirlpool Refrigerator Screw
11	WP4314961 Whirlpool Lite Switch
15	WP489128 Whirlpool Refrigerator Screw
20	W11693756 Whirlpool Screw Assembly
24	WP596797 Whirlpool Terminal
25	Terminal, Female
26	Receptacle (5-Circuit)
27	Connector Block
28	Dial, Indicator
29	Insulator, Terminal
30	Knob
31	Terminal Insulator
32	W10876590 Whirlpool Connector
33	Receptacle, Latching (2-Way) (Uses Terminal 94614)
34	WP487353 Whirlpool Refrigerator Screw
35	WPW10144763 Whirlpool Tie Wire
36	WP94614 Whirlpool Terminal
