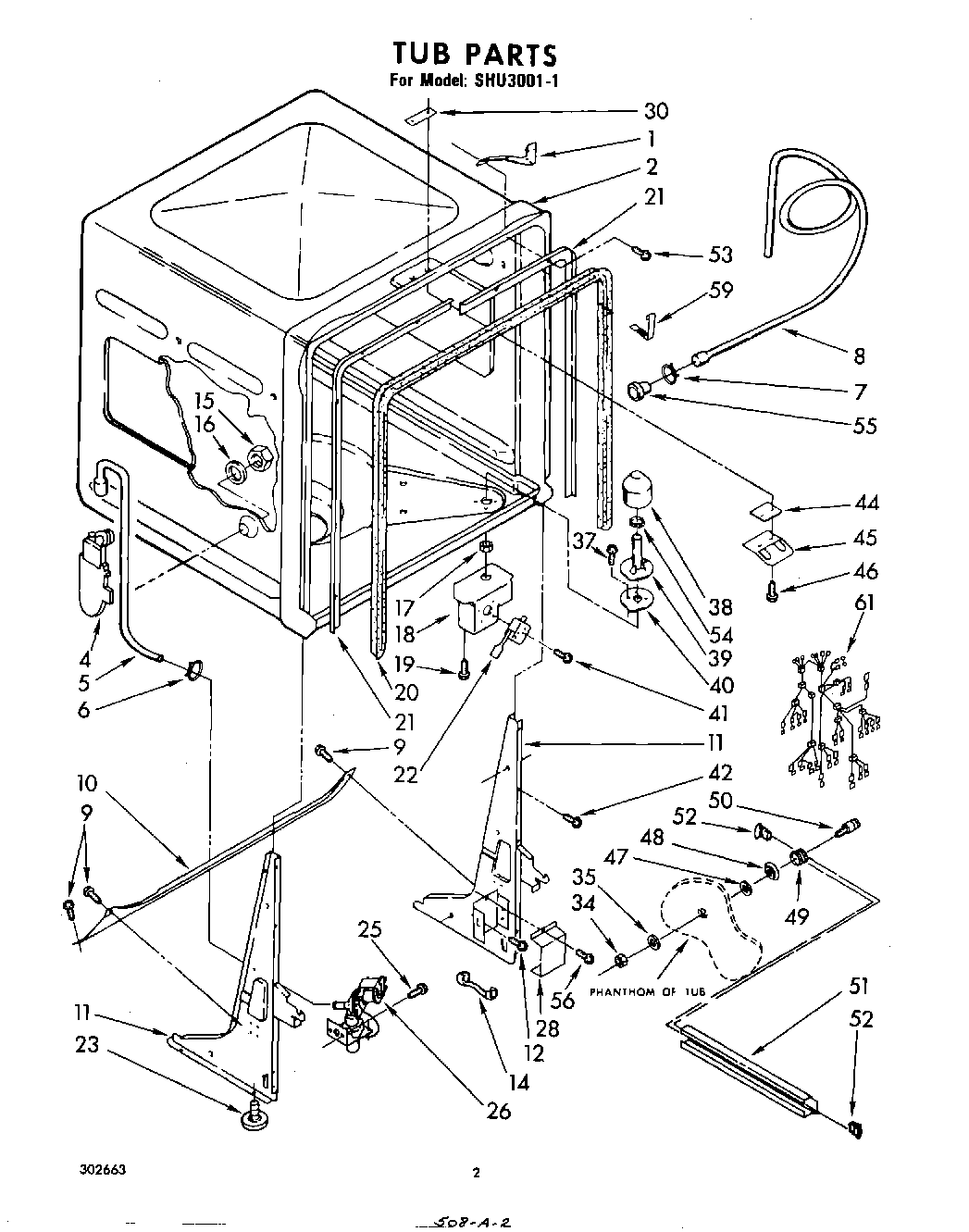

SHU30011 02 – TUB , LITERATURE AND OPTIONAL

Products

PositionProduct
Golden Harvest (Uncut)
Enamel, New Avocado (1 Qt. Uncut)
Enamel, Coffee (1 Qt. Uncut)
799344 Whirlpool Refrigerator Paint
Enamel, Black (1 Qt. Uncut)
1Bracket, Mounting (2)
2Snap On Panel (White)
4Inlet, Water
5Hose, Inlet
6WP596669 Whirlpool Hose Clamp
7WP356138 Whirlpool Hose Clamp
8675544 Whirlpool Drain Hose
10Brace
11Leg & Hinge Assembly, (R.H.)
11Leg & Hinge Assembly, (L.H.)
12Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
14Relief, Strain
15Nut, 7/18-16
16Gasket
17Nut
18Bracket, Overflow Switch
19Screw, 8 x 1/2 (3)
20Gasket (Alternate)
20Gasket (Alternate)
21Retainer (R.H.)
21Retainer (L.H.)
22Retainer-Main Top (2 Required)
22Switch, Pressure (Alternate)
23Screw, Leveling
26Valve, Water Inlet (Alternate)
28300068 Whirlpool Dishwasher Cover Assembly
30Nut, Twin Spring
34Nut, Lock
35Washer (8)
37WP488729 Whirlpool Refrigerator Door Screw
38Float
39Standpipe, Overflow
40Gasket, Overflow
41Screw, 4-40 x 3/4
44Shim
45Strike
46WP308685 Whirlpool Microwave Screw
47Washer (8)
48Washer, Cup
49Roller, Rack Track
50Screw, Shoulder (8)
51Track (2)
52Endcap, Front or Rear (2)
53Screw, 8-18 x 5/8 (10)
54Gasket, Standpipe (2)
55WPL 301656
56WP90767 Whirlpool Screw
59Clip, Gasket (2)
61Kit, Epoxy Patch (White)
61Tag, Energy Fact
6172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
61WP72107 Whirlpool Touchup
6172017 Whirlpool Appliance Touch-Up Paint White
61350956 Whirlpool Spray Assembly
61WPL 302080
61WPL 302348
61WPL 302627
61350930 Whirlpool White Spray Paint
61Golden Harvest
61350942 Whirlpool Spray Paint
61WPL 799351
61Leveler (Thinner) (2oz.)
61Paint, Spray 13 Oz. (Avocado)
61paint, spray 13 oz. (coffee)
61Paint, Touch-Up 1/2 Oz. (Coffee)
6172109 Whirlpool Dacor Avocado Touch-Up Paint
6172032 Whirlpool Touch Up Paint Black
61285006 Whirlpool Spray
61WPL 302663
