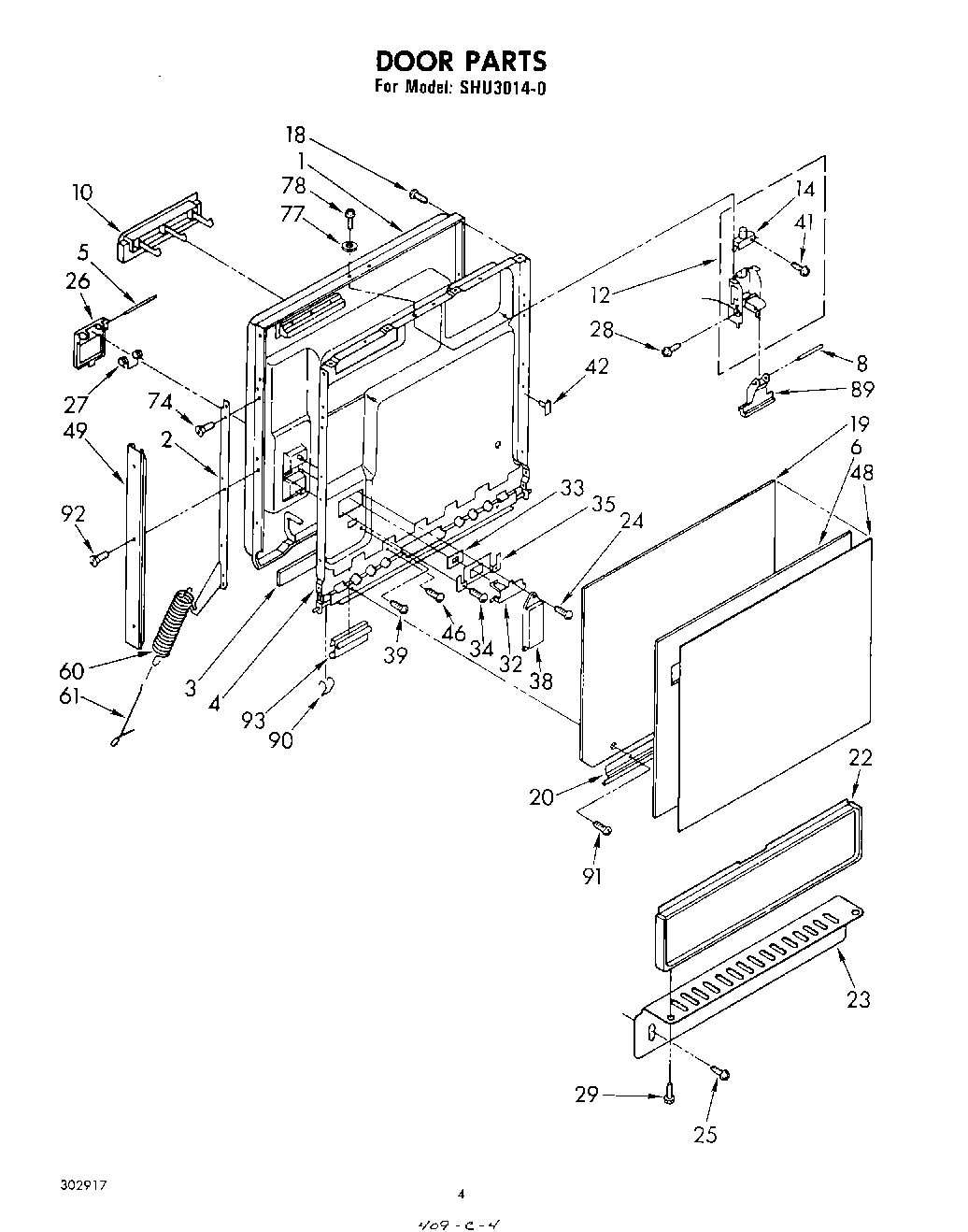

SHU30140 03 – DOOR

Products

Position	Product
1	Door, Inner (Includes Illus. 4)
2	Support, Door (L.H.)
2	Support, Door (R.H.)
3	Gasket, Door
4	Liner, Door
5	4387043 Whirlpool Door Latch Kit
6	Spacer, Panel
8	Pin, Pivot
10	Screen, Vent
12	Latch Assembly
14	Switch, Interlock (Alternate)
18	WP488729 Whirlpool Refrigerator Door Screw
19	Barrier, Panel
20	Edging, Panel
22	WP3367793 Whirlpool Black Access Panel
23	Plate, Toe
25	WP302868 Whirlpool Screw
27	WP8066018 Whirlpool Spring Assembly
29	WP90767 Whirlpool Screw
32	Lever, Catch
33	Seal, Lever
35	Retainer
38	Actuator
39	Screw, 8 x 1/2 (3)
41	Screw, 6-32 x 1
42	Clip, Retainer
48	Panel, Front
49	Trim, Door (2)
60	675611 Whirlpool Spring Assembly
61	WP716401 Whirlpool Dishwasher Retainer
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
89	Lever, Release
90	Clip, Wire
91	W11693756 Whirlpool Screw Assembly
92	302251 Whirlpool Dishwasher Screw
93	Retainer, Harness
