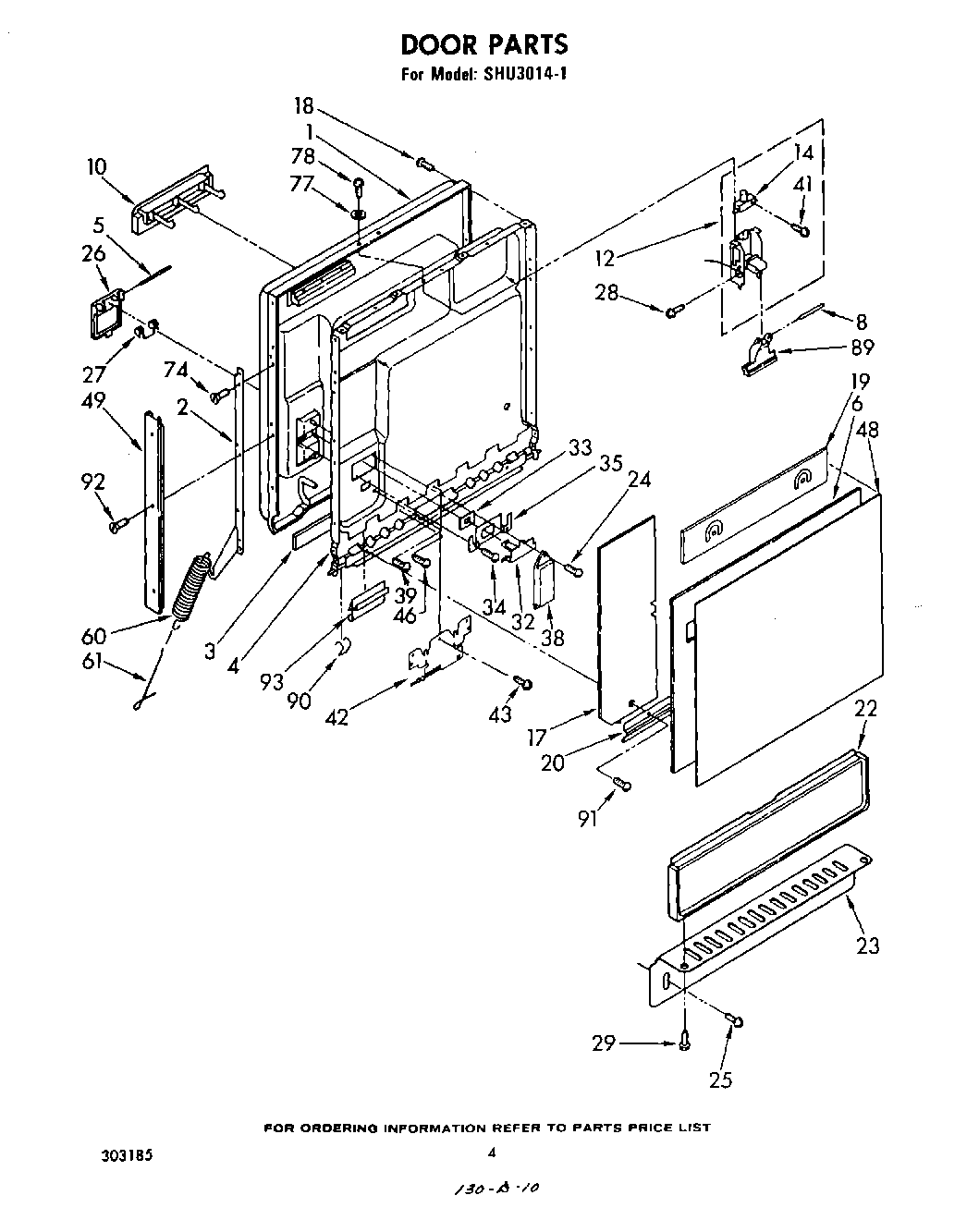

SHU30141 03 – DOOR

Products

PositionProduct
1Door, Inner (Includes Illus. 4)
2Support Door (L.H.)
2Support, Door (R.H.)
3Gasket, Door
4Liner, Door
54387043 Whirlpool Door Latch Kit
6Spacer, Panel
8Pin, Pivot
10Screen, Vent
12Latch Assembly
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
17Barrier, Door
18WP488729 Whirlpool Refrigerator Door Screw
19Barrier, Console
20Edging, Panel
22WP3367793 Whirlpool Black Access Panel
23Plate, Toe
25WP302868 Whirlpool Screw
27WP8066018 Whirlpool Spring Assembly
29WP90767 Whirlpool Screw
32Lever, Catch
33Seal, Lever
35Retainer
38Actuator
39Screw, 8 x 1/2 (3)
41Screw, 6-32 x 1
42Shield, Harness
48Panel, Front
49Trim, Door (2)
60675611 Whirlpool Spring Assembly
61WP716401 Whirlpool Dishwasher Retainer
74WP488627 Whirlpool Refrigerator Screw
77Washer (2)
89Lever, Release
90Clip, Wire
91W11693756 Whirlpool Screw Assembly
92302251 Whirlpool Dishwasher Screw
93Retainer, Clip
