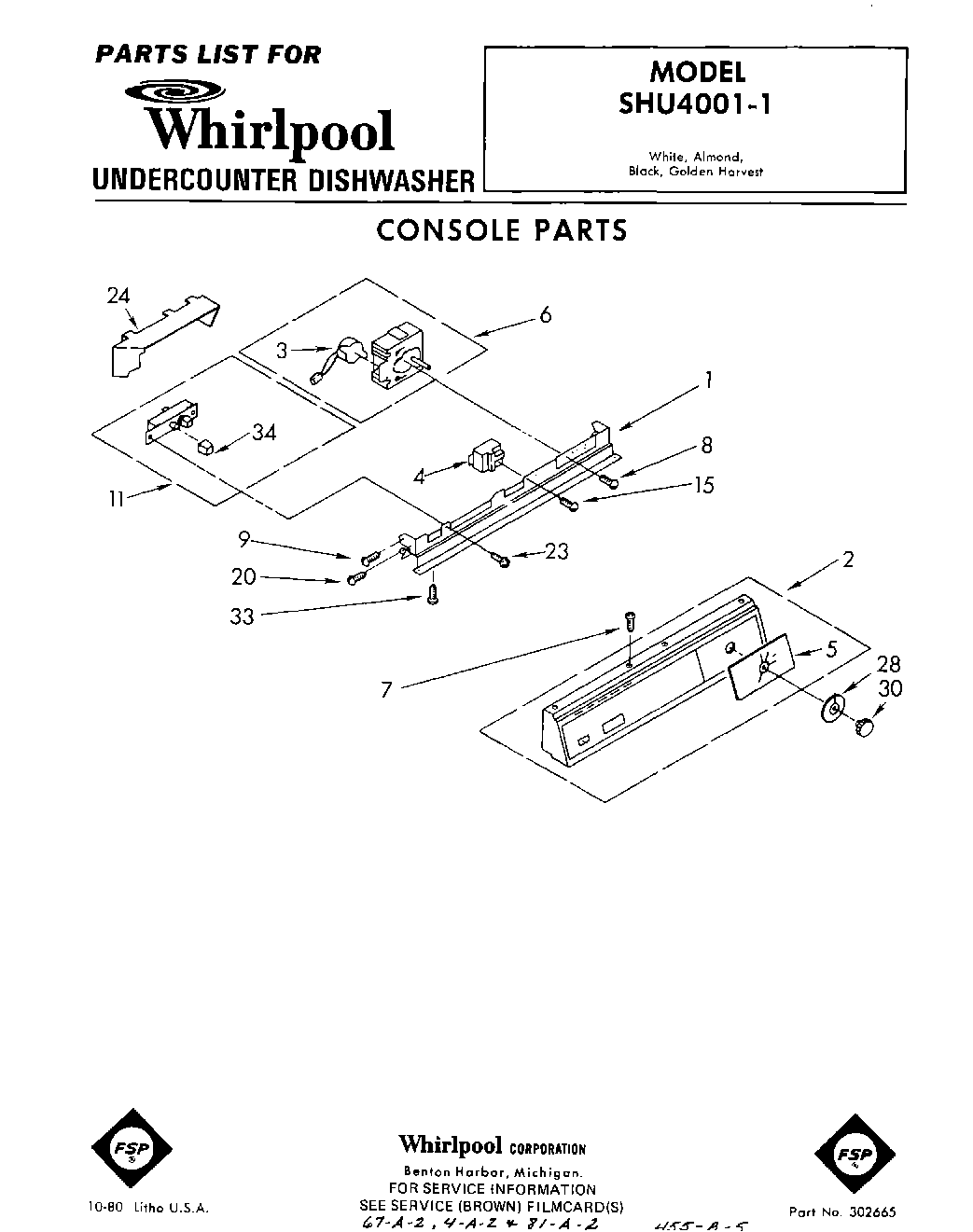

| 1 | Bracket, Control |
| 2 | Console Assembly |
| 3 | Motor, Timer |
| 4 | Relay, Start (Alternate) |
| 4 | Relay, Start (Alternate) |
| 4 | Relay, Start (Alternate) |
| 5 | Insert |
| 6 | Timer |
| 7 | Screw |
| 8 | WP356418 Whirlpool Screw |
| 9 | WP488627 Whirlpool Refrigerator Screw |
| 11 | Switch, Pushbutton |
| 20 | W11693756 Whirlpool Screw Assembly |
| 23 | WP489128 Whirlpool Refrigerator Screw |
| 24 | Barrier, Pushbutton Switch |
| 28 | Dial, Indicator |
| 30 | Knob |
| 33 | WP487353 Whirlpool Refrigerator Screw |
| 34 | Button |
