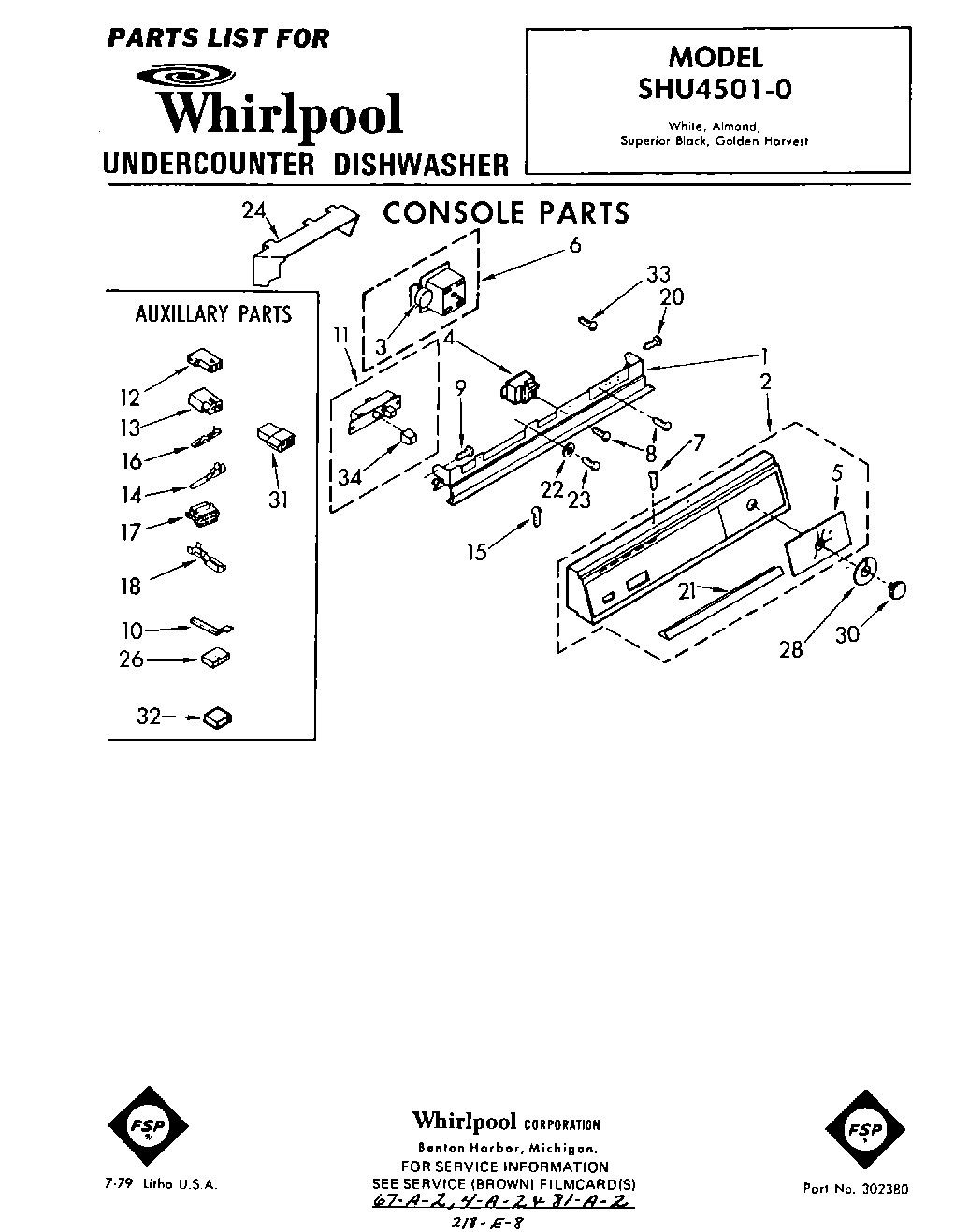

SHU45010 01 – CONSOLE

Products

Position	Product
1	Bracket, Console
2	Console Assembly
3	Motor, Timer
4	Relay, Start (Alternate)
4	Relay, Start (Alternate)
4	Relay, Start (Alternate)
5	Insert
6	Timer, 60 Hz.
7	WP487353 Whirlpool Refrigerator Screw
8	Screw (2)
9	WP488627 Whirlpool Refrigerator Screw
10	Retainer, Harness
11	Switch, Pushbutton
12	Connector (Door Switch)
13	Receptacle, Latching (2-Way) (Uses Terminal 94614)
14	WP596797 Whirlpool Terminal
15	WP489128 Whirlpool Refrigerator Screw
16	WP94614 Whirlpool Terminal
17	W10876590 Whirlpool Connector
18	Terminal, Female
20	WP488787 Whirlpool Refrigerator Screw
21	Support-Flue Deflector
22	Washer (3)
23	Screw, 8-32 (3)
24	Barrier, Pushbutton Switch
26	Receptacle (5-Circuit)
28	Dial, Indicator
30	Knob
31	WP717253 Whirlpool Dishwasher Connector
32	Terminal Insulator
33	Screw
34	Button (2)
