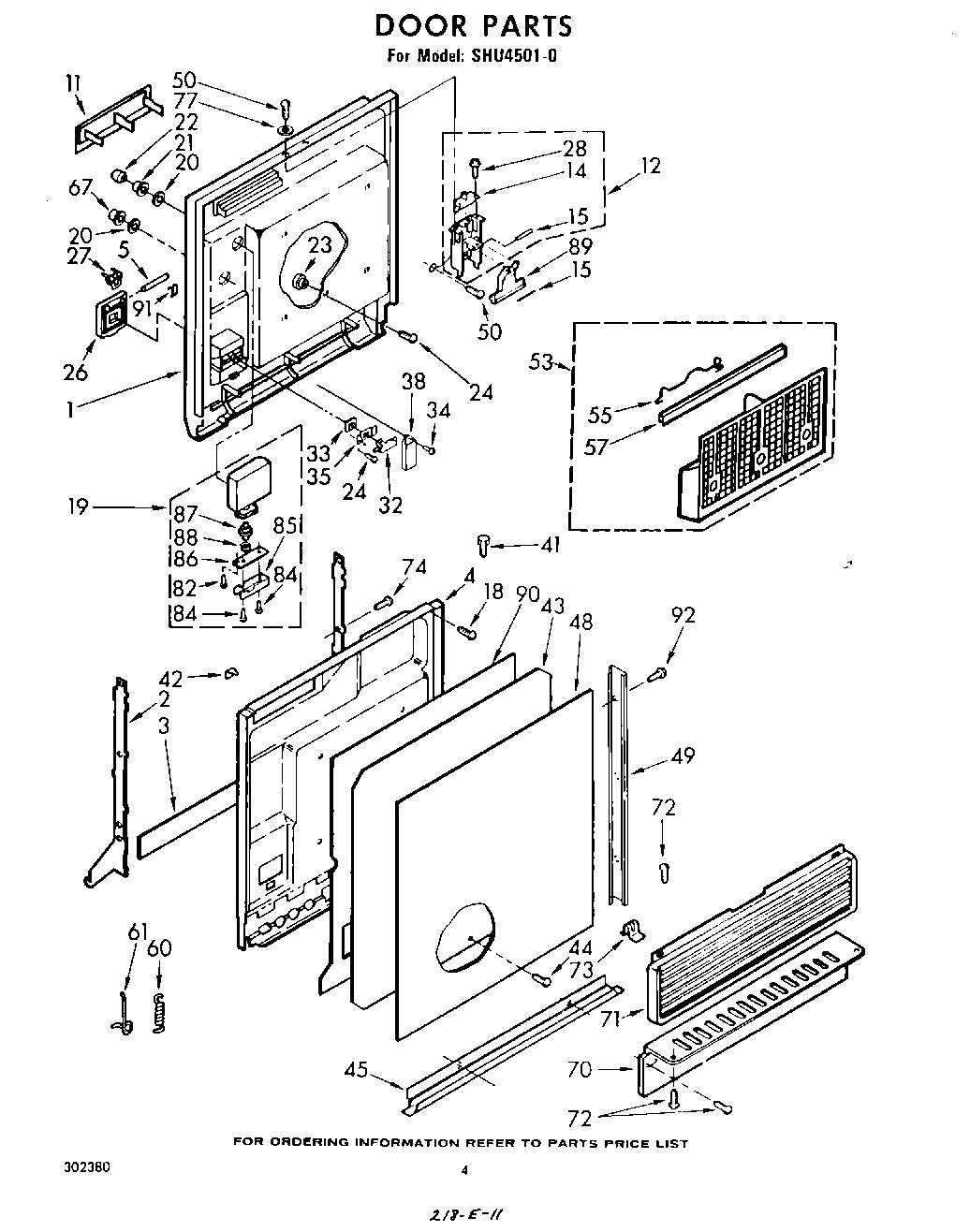

SHU45010 03 – DOOR , LIT/OPTIONAL

Products

Position	Product
1	Door, Inner (Includes Illus. 4)
2	Support, Door (R.H.)
2	Support, Door (L.H.)
3	Gasket, Door
4	Liner, Door
5	4387043 Whirlpool Door Latch Kit
11	Screen, Vent
12	Latch Assembly
14	Switch, Interlock (Alternate)
15	Pin, Pivot
18	WP488729 Whirlpool Refrigerator Door Screw
19	Dispenser, Wetting Agent
20	Washer
21	Nut, 1-14
22	Indicator, Leveler
23	Button, Retainer (3)
24	Screw, 8-18 x 3/8 (3)
27	WP8066018 Whirlpool Spring Assembly
28	Screw, 6-32 x 1
32	Lever, Catch
33	Seal, Lever
34	Screw, 8 x 1/2 (3)
35	Retainer
38	Actuator
41	WP489128 Whirlpool Refrigerator Screw
42	Clip, Retainer
43	Barrier, Panel
44	WP488787 Whirlpool Refrigerator Screw
45	Edging, Panel
48	Panel, Front
49	Trim, Door (2)
53	Silverware Basket Assembly
55	Handle, Basket
57	Trim, Basket
60	675611 Whirlpool Spring Assembly
61	WP716401 Whirlpool Dishwasher Retainer
67	Cap, Drip
70	Plate, Toe
71	WP3367793 Whirlpool Black Access Panel
72	WP90767 Whirlpool Screw
73	Clip (2)
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
82	WP98165 Whirlpool Screw
84	WP488163 Whirlpool Refrigerator Screw
85	Acutator Assembly
86	Plate
87	Diaphrag
88	WPL 718592
89	Lever, Release
90	Spacer, Panel
91	Clip, Wire
92	302251 Whirlpool Dishwasher Screw
