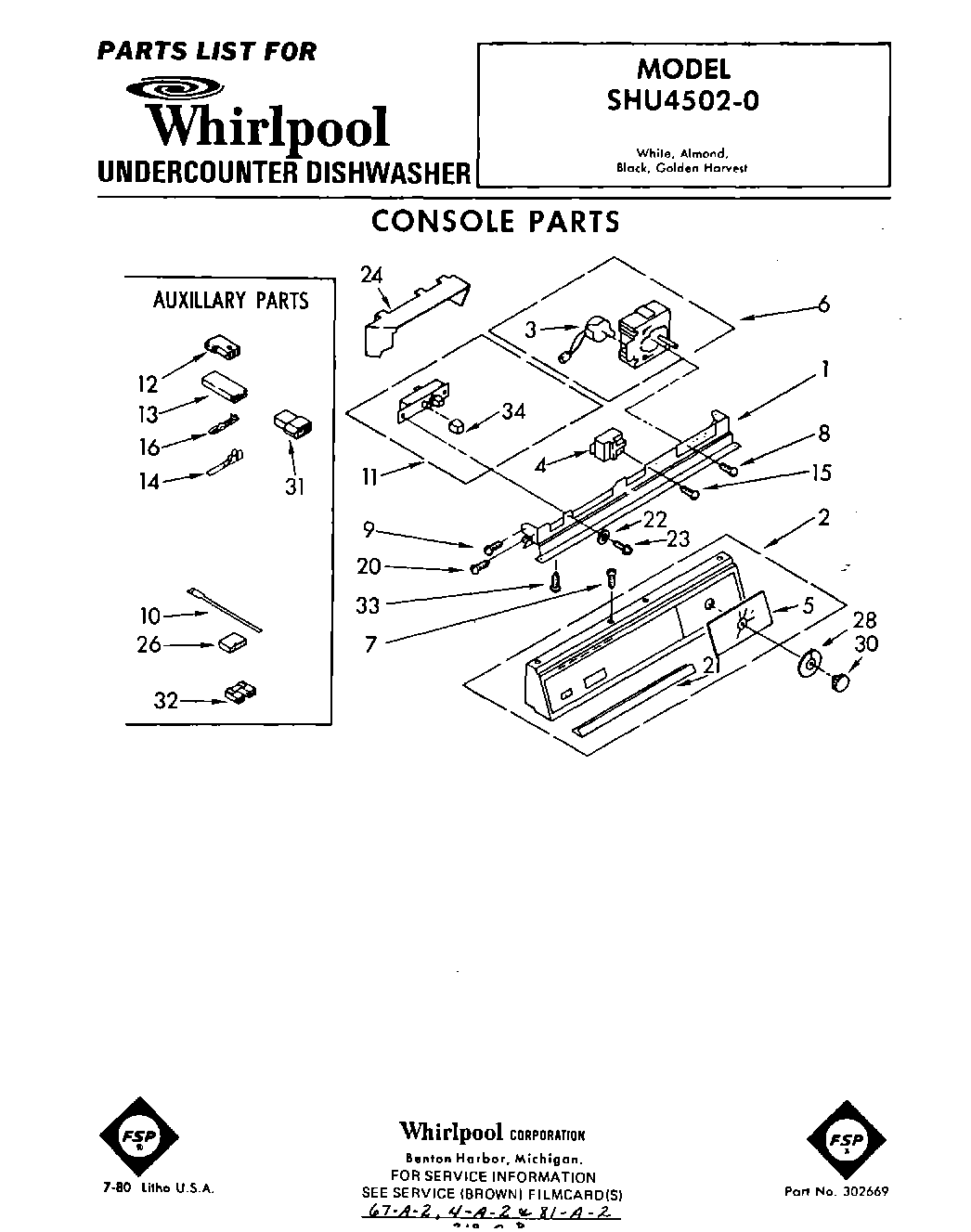

| 1 | Bracket, Console |
| 2 | Console Assembly |
| 3 | Motor, Timer |
| 4 | Relay, Start (Alternate) |
| 4 | Relay, Start (Alternate) |
| 4 | Relay, Start (Alternate) |
| 5 | Insert |
| 6 | Timer |
| 7 | Screw |
| 8 | Screw (2) |
| 9 | WP488627 Whirlpool Refrigerator Screw |
| 10 | WPW10144763 Whirlpool Tie Wire |
| 11 | Switch, Pushbutton |
| 12 | Connector (Door Switch) |
| 13 | Connector Block |
| 14 | WP596797 Whirlpool Terminal |
| 15 | WP489128 Whirlpool Refrigerator Screw |
| 16 | WP94614 Whirlpool Terminal |
| 20 | W11693756 Whirlpool Screw Assembly |
| 21 | Support-Flue Deflector |
| 22 | Washer (3) |
| 23 | Screw, 8-32 (3) |
| 24 | Barrier, Pushbutton Switch |
| 26 | Receptacle (5-Circuit) |
| 28 | Dial, Indicator |
| 30 | Knob |
| 31 | WP717253 Whirlpool Dishwasher Connector |
| 32 | Terminal Insulator |
| 33 | WP487353 Whirlpool Refrigerator Screw |
| 34 | Button (2) |
