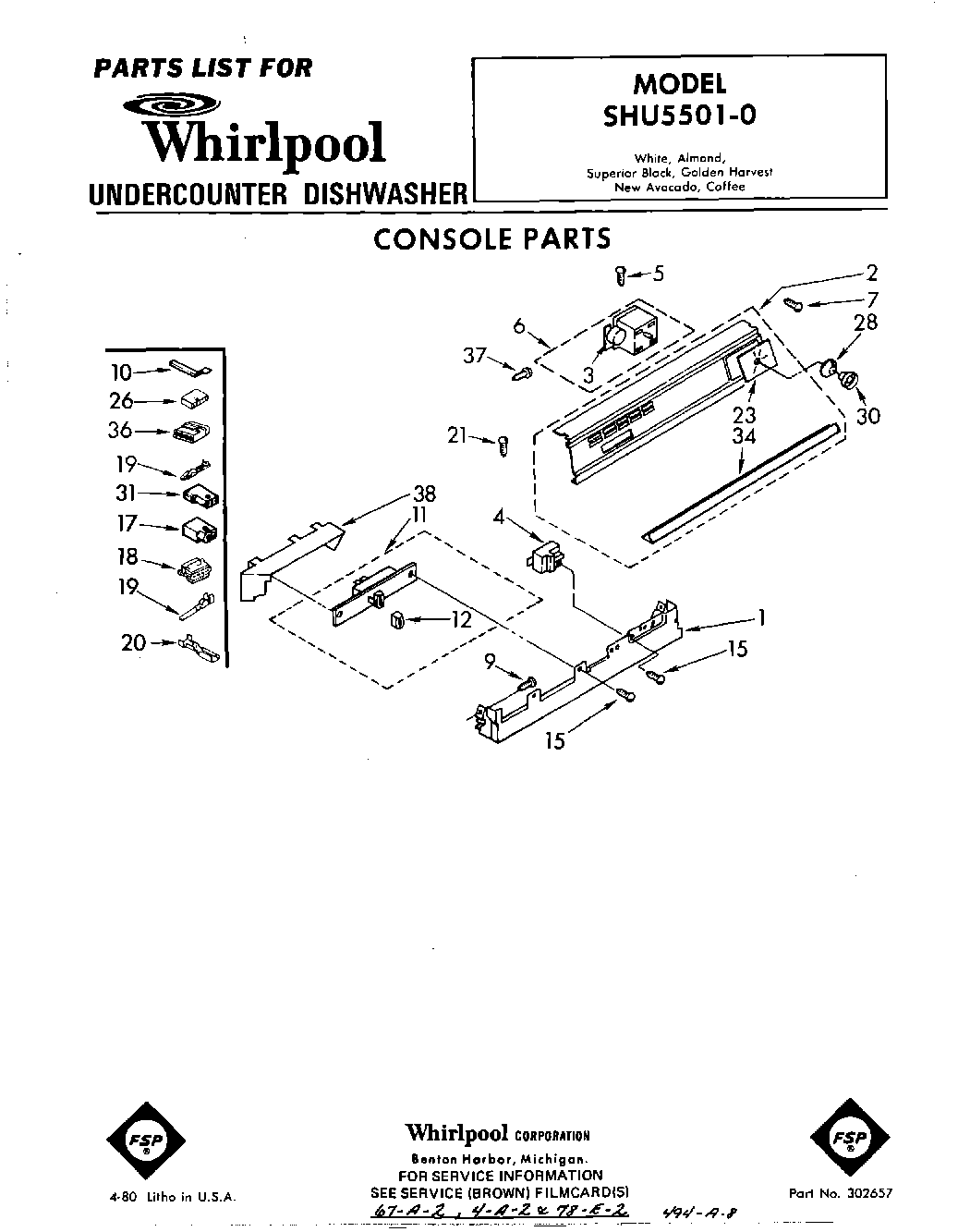

SHU55010 01 – CONSOLE

Products

Position	Product
1	Bracket, Console
2	Console Assembly
3	Motor, Timer
4	Relay, Start (Alternate)
4	Relay, Start (Alternate)
4	Relay, Start (Alternate)
5	WP356418 Whirlpool Screw
6	Timer, Disconnect
7	WP487353 Whirlpool Refrigerator Screw
9	WP488627 Whirlpool Refrigerator Screw
10	Retainer, Harness
11	Switch, Pushbutton
12	Button
15	WP489128 Whirlpool Refrigerator Screw
17	Receptacle, Latching (2-Way) (Uses Terminal 94614)
18	W10876590 Whirlpool Connector
19	WP596797 Whirlpool Terminal
19	WP94614 Whirlpool Terminal
20	Terminal, Female
21	Screw
23	Insert
26	Receptacle (5-Circuit)
28	Dial, Indicator
30	Knob, Timer
31	Connector (Door Switch)
34	Support-Flue Deflector
36	Terminal Insulator
37	WP488787 Whirlpool Refrigerator Screw
38	Barrier, Pushbutton Switch
