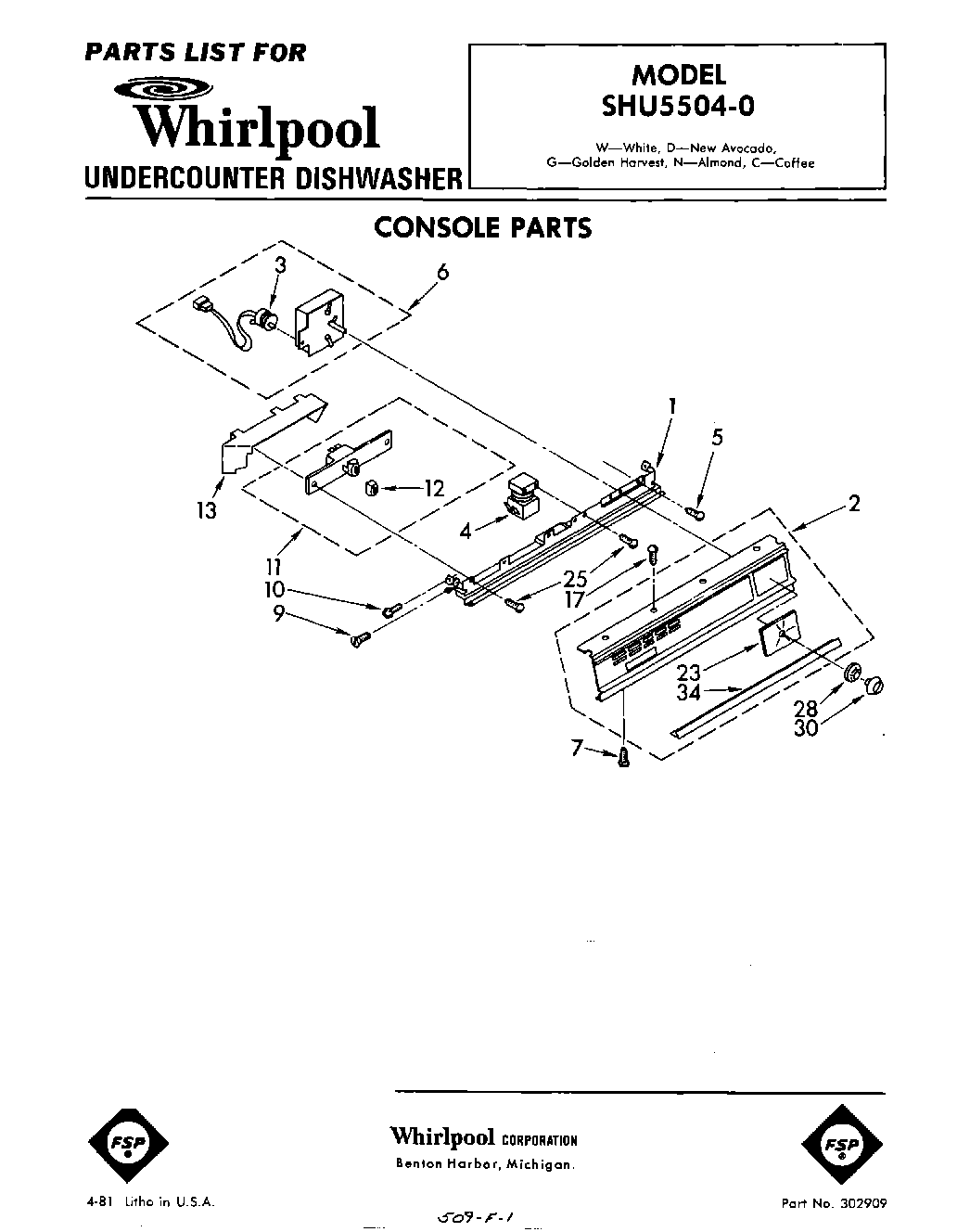

SHU55040 01 – CONSOLE

Products

PositionProduct
1Bracket, Console
2Console Assembly
3Motor, Timer
4Relay, Start (Alternate)
4Relay, Start (Alternate)
4Relay, Start (Alternate)
5WP356418 Whirlpool Screw
6Timer, Disconnect
7WP487353 Whirlpool Refrigerator Screw
9WP488627 Whirlpool Refrigerator Screw
10Screw, 8-18 x 5/8
11Switch, Pushbutton
12Button
13Barrier, Pushbutton Switch
17W10759522 Whirlpool Screw
23Screw 10-24×2-3/8“
25WP489128 Whirlpool Refrigerator Screw
28Dial, Indicator
30Knob, Timer
34Support-Flue Deflector
