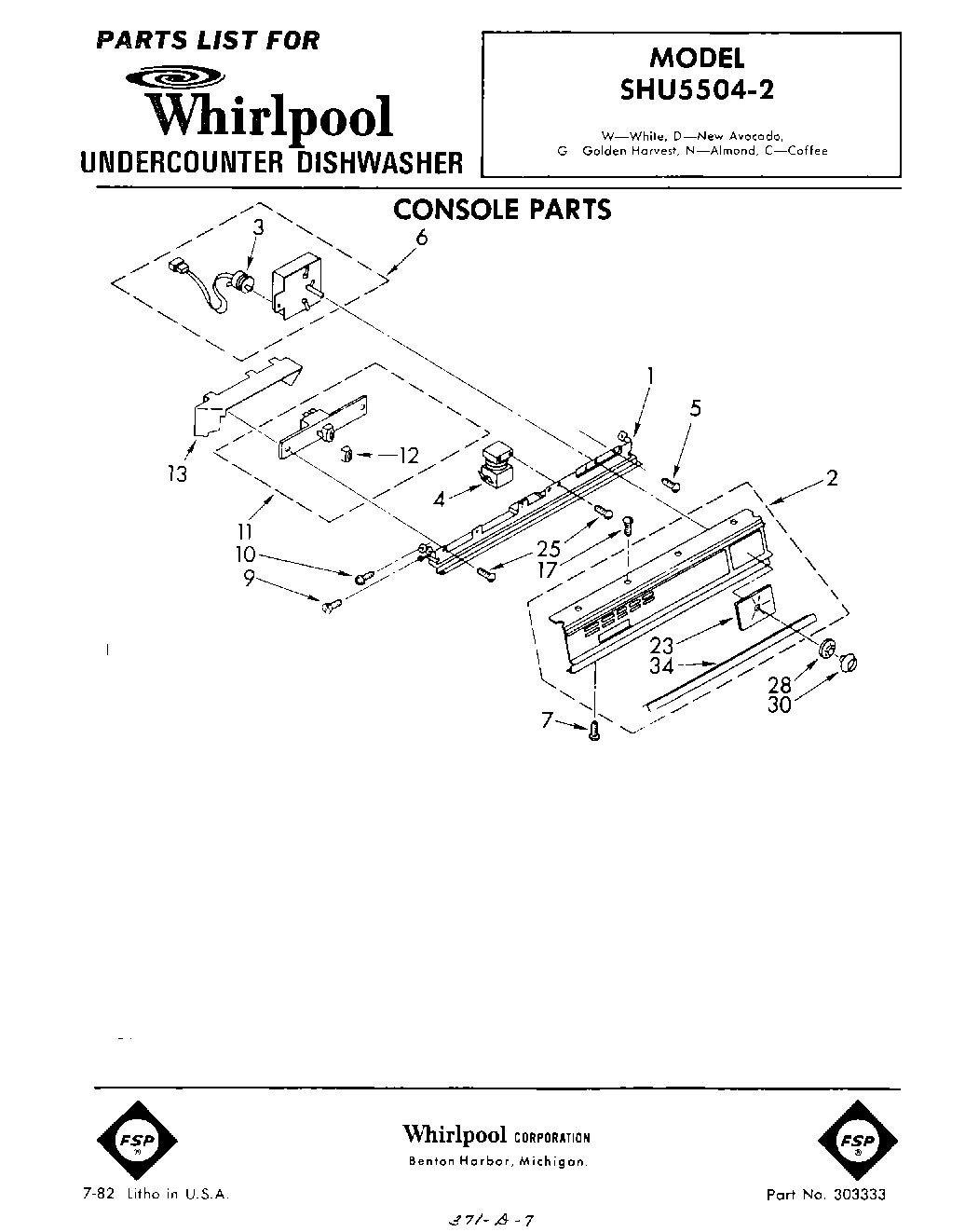

SHU55042 01 – CONSOLE

Products

Position	Product
1	Bracket, Console
2	Console Assembly
3	Motor, Timer
4	Relay, Start (Alternate)
4	Relay, Start (Alternate)
4	Relay, Start (Alternate)
5	WP356418 Whirlpool Screw
6	Timer, Disconnect
7	WP487353 Whirlpool Refrigerator Screw
9	WP488627 Whirlpool Refrigerator Screw
10	Screw, 8-18 x 5/8
11	Switch, Pushbutton
12	Button
13	Barrier
17	W10759522 Whirlpool Screw
23	Screw 10-24×2-3/8“
25	WP489128 Whirlpool Refrigerator Screw
28	Dial, Indicator
30	Knob, Timer
34	Support-Flue Deflector
