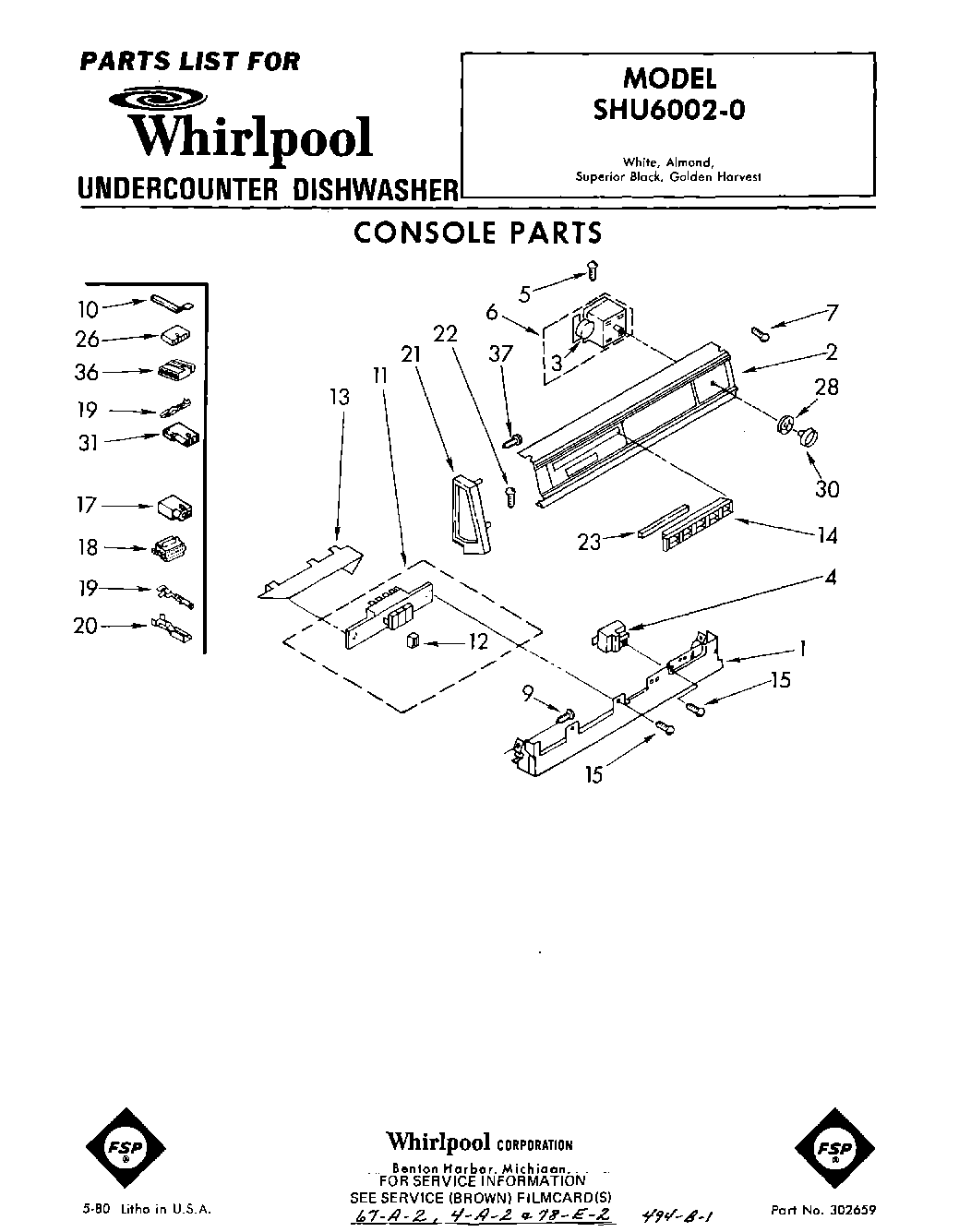

SHU60020 01 – CONSOLE

Products

PositionProduct
1Bracket, Control
2Panel, Escutcheon
3Motor, Timer
4Relay, Start (Alternate)
4Relay, Start (Alternate)
4Relay, Start (Alternate)
5WP356418 Whirlpool Screw
6Timer, Disconnect
7WP487353 Whirlpool Refrigerator Screw
9WP488627 Whirlpool Refrigerator Screw
10Retainer, Harness
11Switch, Pushbutton
12Button (6)
13Barrier, Pushbutton Switch
14Grille, Vent
15WP489128 Whirlpool Refrigerator Screw
17Receptacle, Latching (2-Way) (Uses Terminal 94614)
18W10876590 Whirlpool Connector
19WP596797 Whirlpool Terminal
19WP94614 Whirlpool Terminal
20Terminal, Female
21End Cap, R.H.
21End Cap, L.H.
22Screw, 12 x 7/8 (2)
23Baffle
26Receptacle (5-Circuit)
28Indicator, Dial
30Knob, Timer
31Connector (Door Switch)
36Terminal Insulator
37WP488787 Whirlpool Refrigerator Screw
