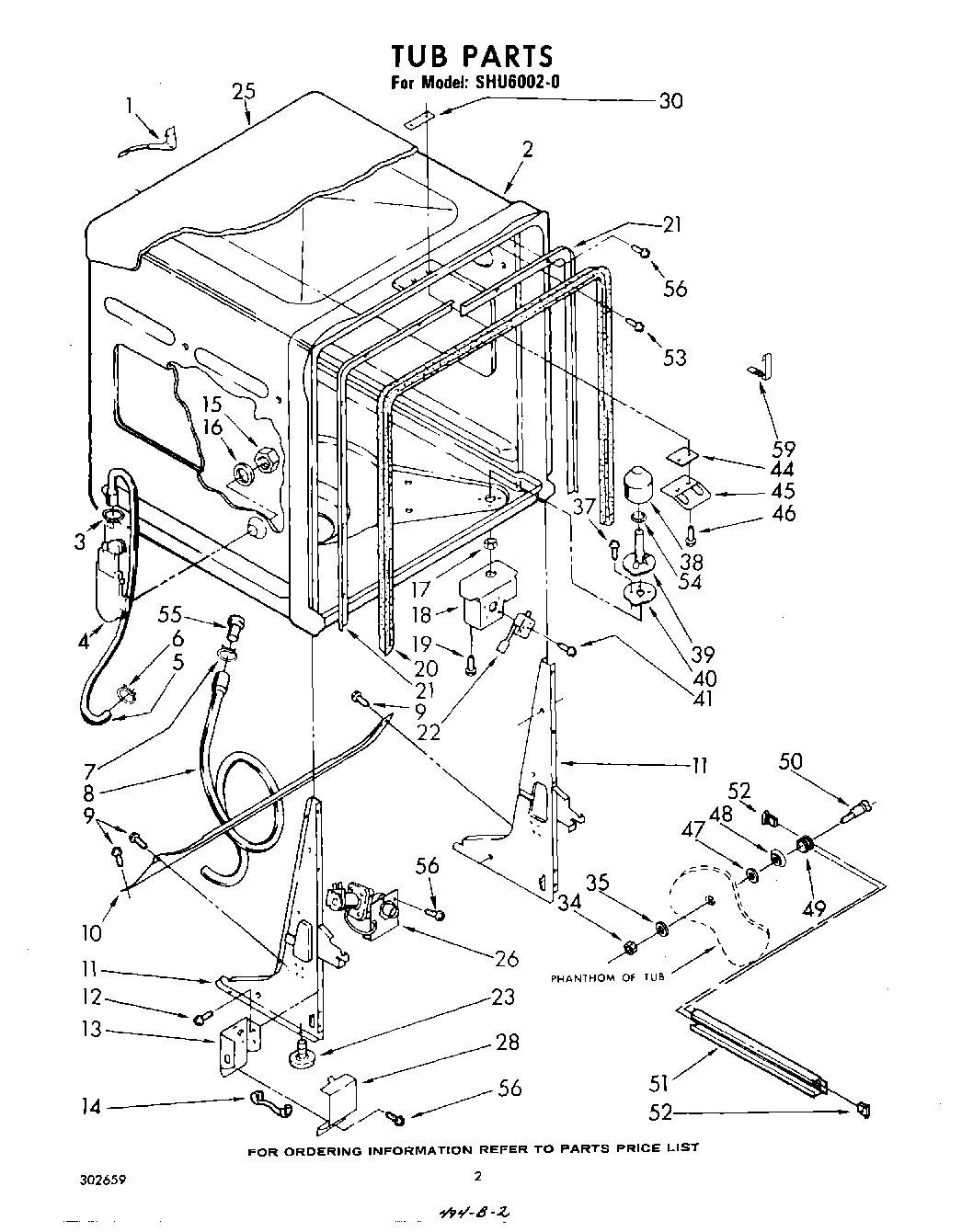

SHU60020 02 – TUB , LIT/OPTIONAL

Products

Position	Product
	Golden Harvest (Uncut)
	Enamel, New Avocado (1 Qt. Uncut)
	Enamel, Coffee (1 Qt. Uncut)
	799344 Whirlpool Refrigerator Paint
	Almond (Uncut)
1	Bracket, Mounting (2)
2	Snap On Panel (White)
3	WPW10144763 Whirlpool Tie Wire
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
9	WP90767 Whirlpool Screw
10	Brace
11	Leg & Hinge Assembly, (R.H.)
11	Leg & Hinge Assembly, (L.H.)
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Box, Terminal
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (L.H.)
21	Retainer (R.H.)
22	Retainer-Main Top (2 Required)
22	Switch, Pressure (Alternate)
23	Screw, Leveling
25	W11086533 Whirlpool Dishwasher Shield
26	Valve, Water Inlet (Alternate)
28	300068 Whirlpool Dishwasher Cover Assembly
30	Nut, Twin Spring
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
59	Guide, Use & Care
59	Golden Harvest
59	WP72107 Whirlpool Touchup
59	72017 Whirlpool Appliance Touch-Up Paint White
59	WPL 302754
59	350956 Whirlpool Spray Assembly
59	350930 Whirlpool White Spray Paint
59	Harness, Wiring
59	WPL 302080
59	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
59	350942 Whirlpool Spray Paint
59	Kit, Epoxy Patch (White)
59	WPL 799351
59	Leveler (Thinner) (2oz.)
59	Clip, Gasket (2)
59	Paint, Spray 13 Oz. (Avocado)
59	paint, spray 13 oz. (coffee)
59	Paint, Touch-Up 1/2 Oz. (Coffee)
59	72109 Whirlpool Dacor Avocado Touch-Up Paint
59	285006 Whirlpool Spray
59	List, Parts
