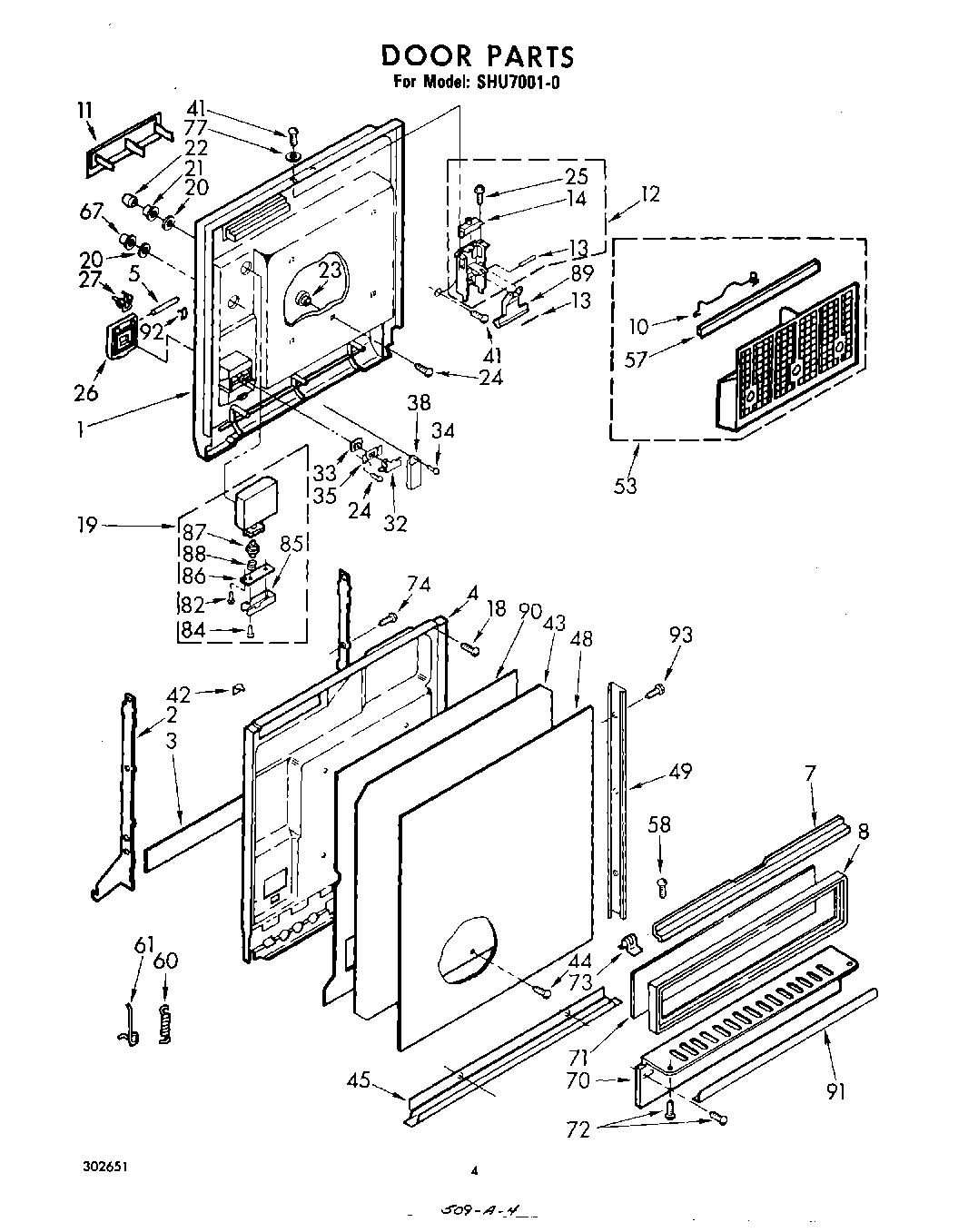

SHU70010 03 – DOOR

SHU70010 03 – DOOR

Written by

in

SHU70010 03 – DOOR

Products

PositionProduct
1Door, Inner (Includes Illus. 4)
2Support, Door (L.H.)
2Support, Door (R.H.)
3Gasket, Door
4Liner, Door
54387043 Whirlpool Door Latch Kit
7WPL 301816
8WPL 301814
10Handle, Basket
11Screen, Vent
12Latch Assembly
13Pin, Pivot
14Switch, Interlock (Alternate)
18WP488729 Whirlpool Refrigerator Door Screw
19Dispenser, Wetting Agent
20Washer
21Nut, 1-14
22Indicator, Leveler
23Button, Retainer (3)
24Screw, 8-18 x 3/8 (3)
25Screw, 6-32 x 1
27WP8066018 Whirlpool Spring Assembly
32Lever, Catch
33Seal, Lever
34Screw, 8 x 1/2 (3)
35Retainer
38Actuator
42Clip, Retainer
43Barrier, Panel
44WP488787 Whirlpool Refrigerator Screw
45Edging, Panel
48Panel, Front
49Trim, Door (2)
53Silverware Basket Assembly
57Trim, Basket
58WP965173 Whirlpool Dishwasher Screw
60675611 Whirlpool Spring Assembly
61WP716401 Whirlpool Dishwasher Retainer
67Cap, Drip
70Plate, Toe
71Panel, Access
72WP90767 Whirlpool Screw
73Clip (2)
74WP488627 Whirlpool Refrigerator Screw
77Washer (2)
82WP98165 Whirlpool Screw
84WP488163 Whirlpool Refrigerator Screw
85Acutator Assembly
86Plate
87Diaphrag
88WPL 718592
89Lever, Release
90Spacer, Panel
91WPL 301815
92Clip, Wire
93302251 Whirlpool Dishwasher Screw
