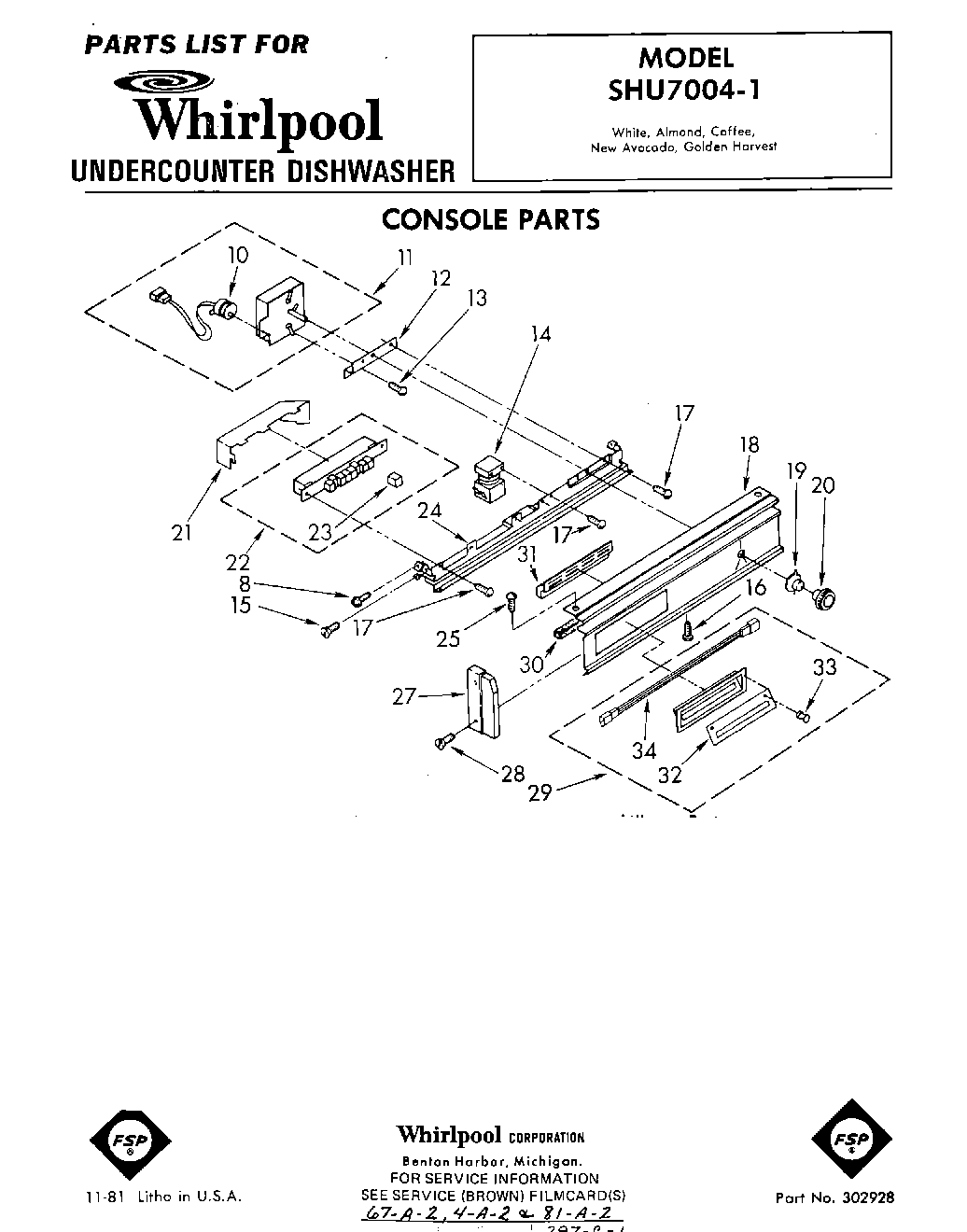

SHU70041 01 – CONSOLE

Products

Position	Product
10	Motor, Timer
11	Timer, Disconnect
12	Bracket, Timer
13	WP356418 Whirlpool Screw
14	Relay, Start (Alternate)
14	Relay, Start (Alternate)
14	Relay, Start (Alternate)
15	WP488627 Whirlpool Refrigerator Screw
16	WP487353 Whirlpool Refrigerator Screw
17	WP489128 Whirlpool Refrigerator Screw
18	Panel, Escutcheon
19	Dial, Indicator
20	Knob, Timer
21	Barrier, Pushbutton Switch
22	Switch, Pushbutton
23	Button (9)
24	Bracket, Console
25	W11693756 Whirlpool Screw Assembly
27	Clock w/Hr. Timer
27	Cap, End (L.H.)
28	W10759522 Whirlpool Screw
29	Bezel Assembly
30	Baffle
31	Grille, Vent
32	Escutcheon, Pushbutton
33	Lens, Red
34	Light Assembly
