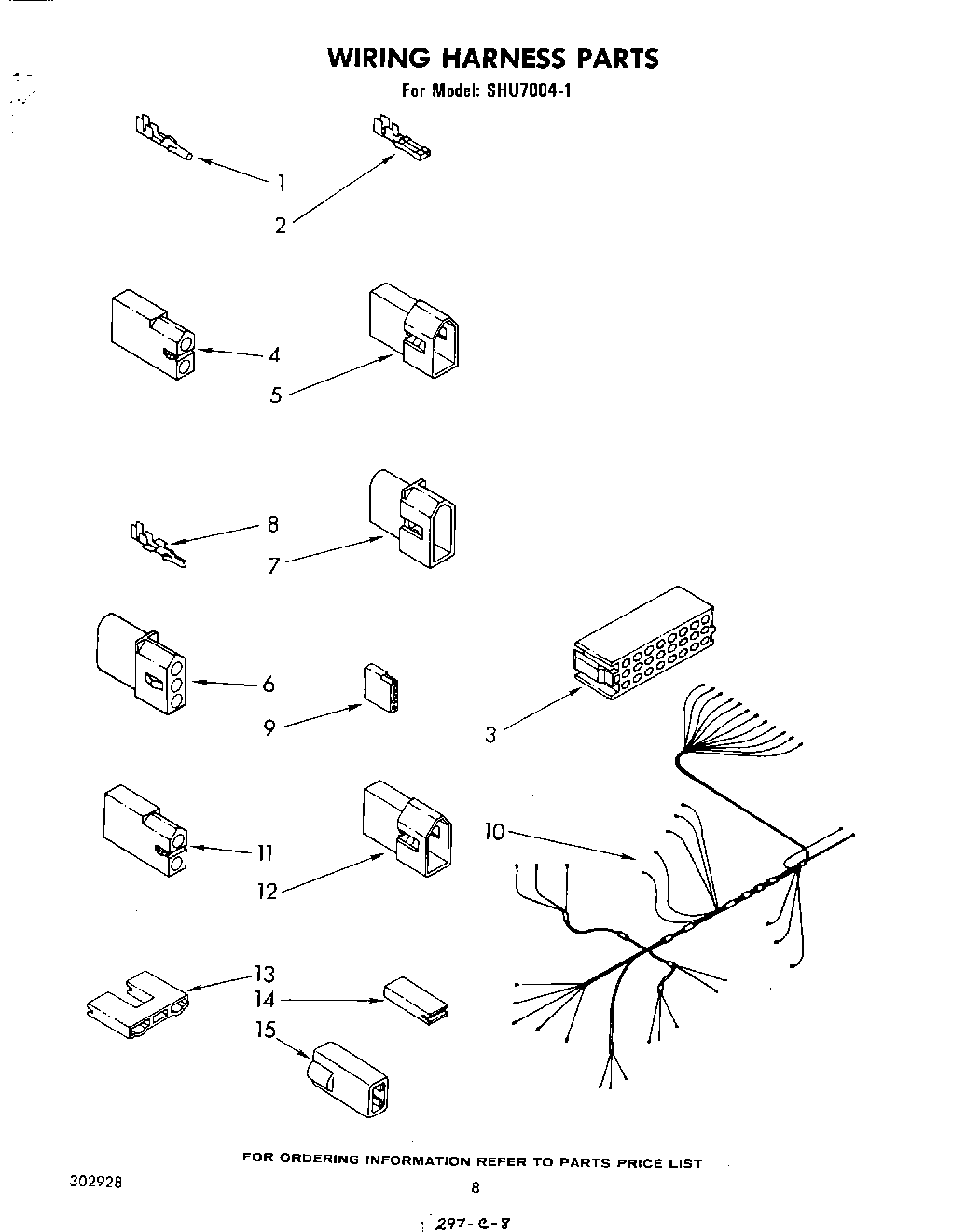

SHU70041 06 – WIRING HARNESS

Products

Position	Product
1	WP94614 Whirlpool Terminal
2	Terminal, Female
3	W10876590 Whirlpool Connector
4	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	Connector (Door Switch)
7	353424 Whirlpool Connector
8	WP596797 Whirlpool Terminal
9	Receptacle (5-Circuit)
10	Seal-Oven Door
11	Receptacle Terminal (2-Way) Red
12	WP717253 Whirlpool Dishwasher Connector
13	Terminal Insulator
13	Connector Block (Alternate)
14	Connector Block
15	Insulator, Terminal
