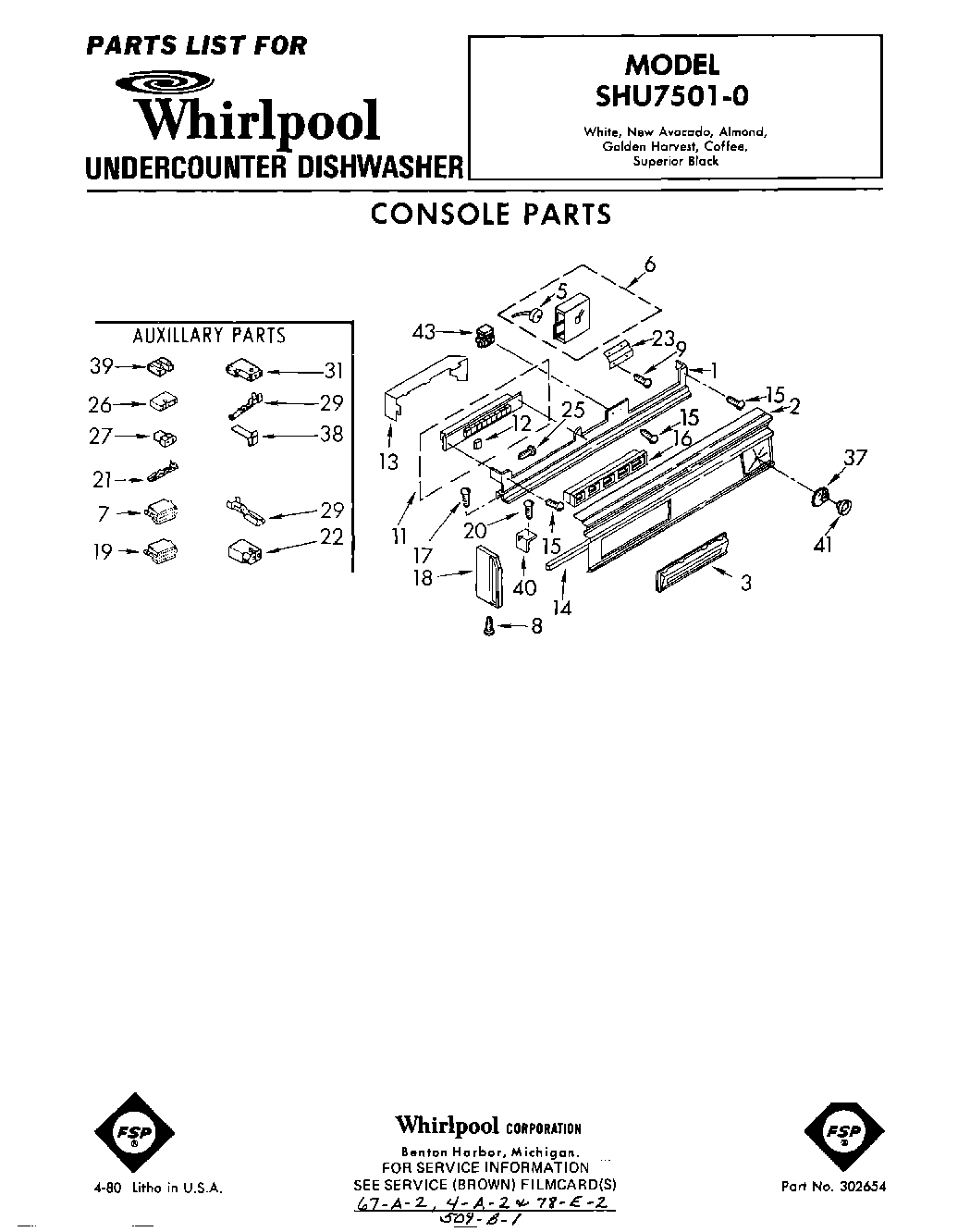

SHU75010 01 – CONSOLE

Products

Position	Product
1	Bracket, Console
2	Panel, Escutcheon
3	Bezel Assembly, Pushbutton
5	Motor, Timer
6	Timer, Disconnect
7	Timer, Block Disconnect (White)
8	Screw, 8-18 x 1 (2)
9	WP356418 Whirlpool Screw
11	Switch, Pushbutton
12	Button (9)
13	Barrier, Pushbutton Switch
14	Baffle
15	WP489128 Whirlpool Refrigerator Screw
16	Grille, Vent
17	WP487353 Whirlpool Refrigerator Screw
18	Cap, End (R.H.)
18	Cap, End (L.H.)
19	W10876590 Whirlpool Connector
20	W11693756 Whirlpool Screw Assembly
21	Terminal, Female
22	Receptacle, Latching (2-Way) (Uses Terminal 94614)
23	Bracket, Timer
25	WP488627 Whirlpool Refrigerator Screw
26	Receptacle (5-Circuit)
27	Plug, Terminal (Timer Motor)
29	WP596797 Whirlpool Terminal
29	WP94614 Whirlpool Terminal
31	Connector (Door Switch)
37	Dial, Indicator
38	Retainer, Harness
39	Terminal Insulator
40	Bracket, End Cap
41	Bracket-Igniter
43	Relay, Start (Alternate)
43	Relay, Start (Alternate)
43	Relay, Start (Alternate)
